4 | Adding a Raffle Device

This article covers a step-by-step guide to adding a Raffle Device in BackOffice. In order for Raffles to be redeemed and managed, a Raffle Device will first need to be configured. Raffle Setup allows the end-user to create and maintain Raffles for ticket sales and Raffles Draws. NB: The availability of the Raffles Draws component is controlled by a separate System Authorisation.

This article covers a step-by-step guide to adding a Raffle Device in BackOffice.

In order for Raffles to be redeemed and managed, a Raffle Device will first need to be configured.

Raffle Setup allows the end-user to create and maintain Raffles for ticket sales and Raffles Draws.

NB: The availability of the Raffles & Draws component is controlled by a separate System Authorisation.

Prerequisites

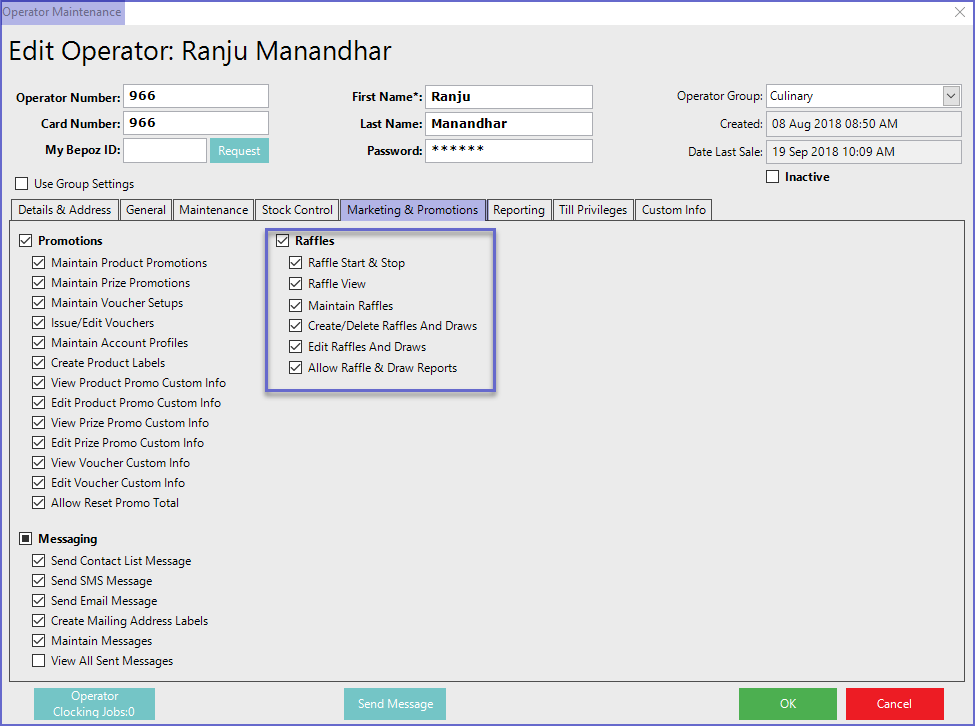

• For an Operator to access and edit Raffles Setup, the corresponding Raffles option/s must be ticked on from the Marketing & Promotions tab of Operator Maintenance

Adding a Raffle Device

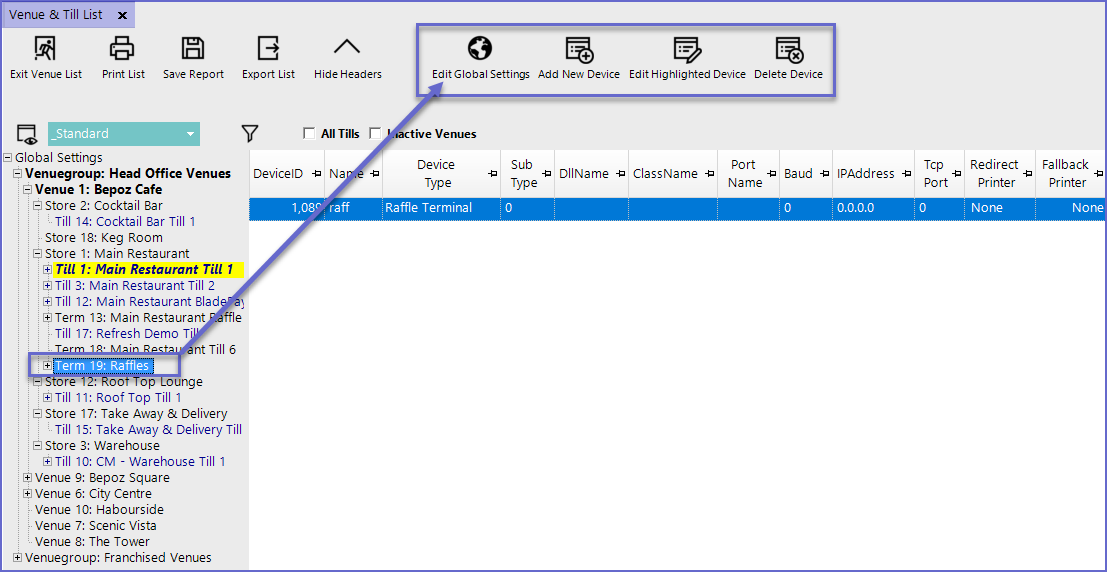

• Navigate through Venue, Stores & Tills and highlight the new Raffle Till
• This will display a row of icons in the header as shown below

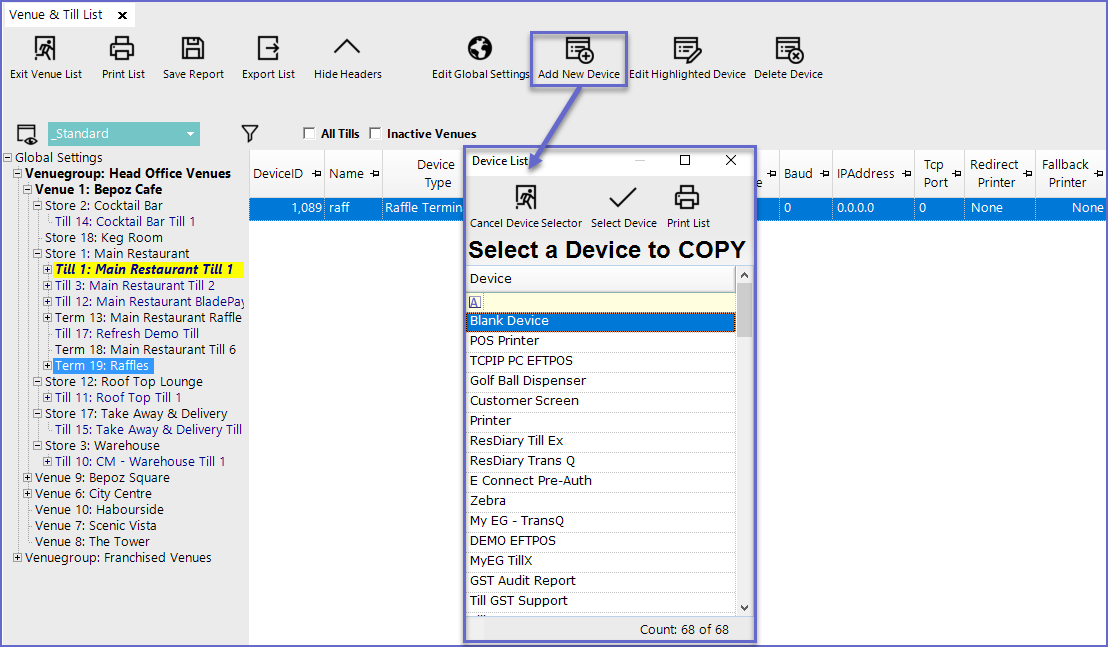

• Select the Add New Device button which will open a Device List window

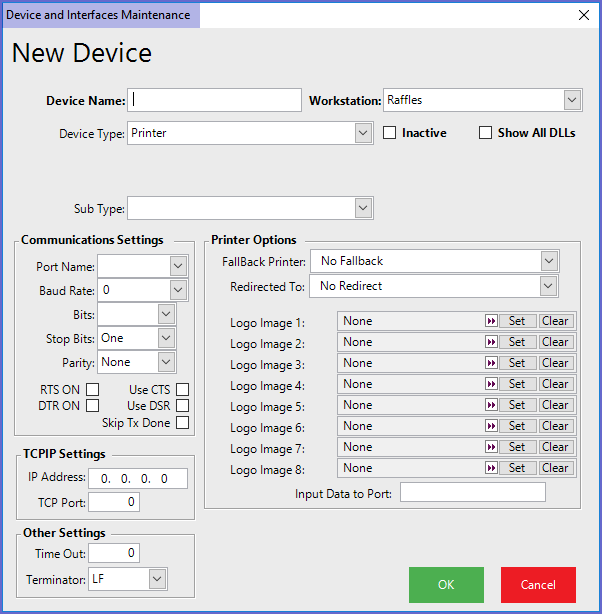

• A new Blank Device must be selected as the device list doesn't have the Raffle Device Setup'

• Once the Raffle Device has been set up, this setting can be copied for future Raffle Devices

• Device Name
• Sets a name for the device
• Workstation
• Set the workstation to the Raffles Workstation

• Device Type

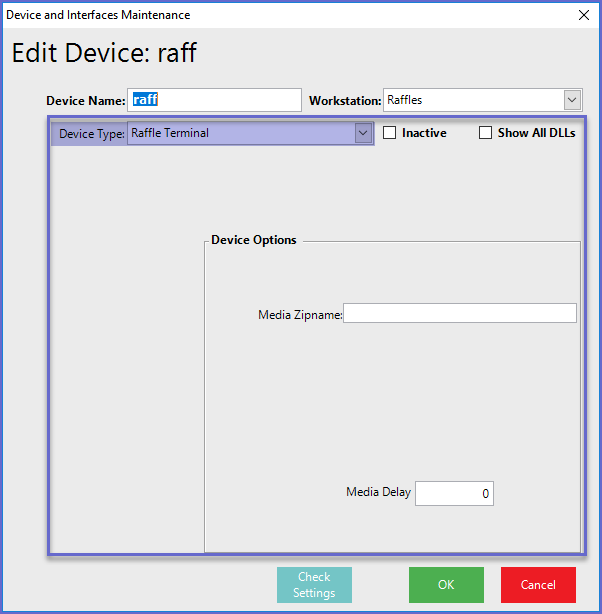

• Set the Device Type to Raffle Terminal which will change the settings option
• In order for the system to work, setting the device type is mandatory



• Media Zipname
• Media Zipname is an option to have pictures displaying on the Raffle Till
• Once the device has been set up, restart SmartController for the newly saved devices to be active
