      2 | Albert EFTPOS Interface Setup

      This article covers a step-by-step guide to configuring the Albert EFTPOS Terminal. Before the implementation of the Albert EFTPOS terminal, the EFT Setup and Configuration Wizard installer will be required. This article outlines the steps needed to install EFT Setup and Configuration Wizard which are specific for the functionality of the Albert EFTPOS Terminal. Collected data such as Port numbers and may vary for each user following this guide. Prerequisites N/A Step-By-Step Guide Start by running PC-EFTPOS Setup.exe 1.

      This article covers a step-by-step guide to configuring the Albert EFTPOS Terminal.

      Before the implementation of the Albert EFTPOS terminal, the EFT Setup and Configuration Wizard installer will be required.

      This article outlines the steps needed to install EFT Setup and Configuration Wizard which are specific for the functionality of the Albert EFTPOS Terminal.

      Collected data such as Port numbers and may vary for each user following this guide.

      Prerequisites

      N/A

      Step-By-Step Guide

      • Start by running PC-EFTPOS Setup.exe

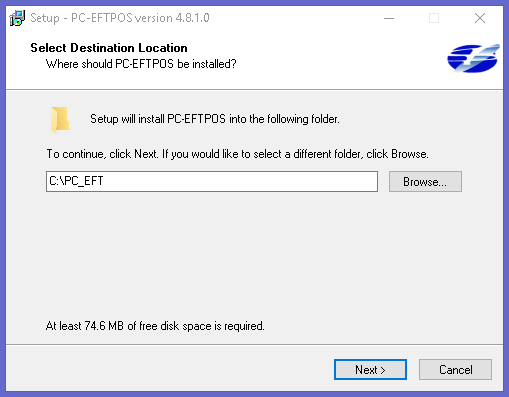

      1. Select the desired location for the installation and click Next

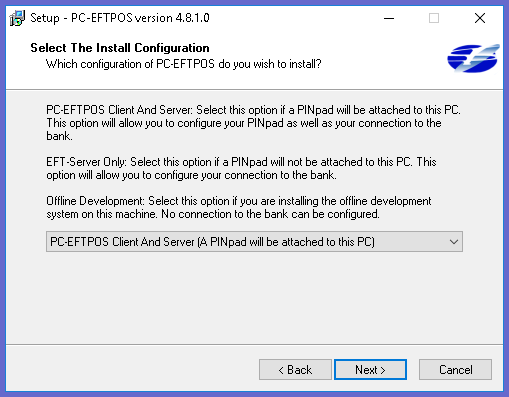

      2. Click the drop-down menu and select PC-EFTPOS Client and Server (A Pinpad will be attached to this PC) then click Next

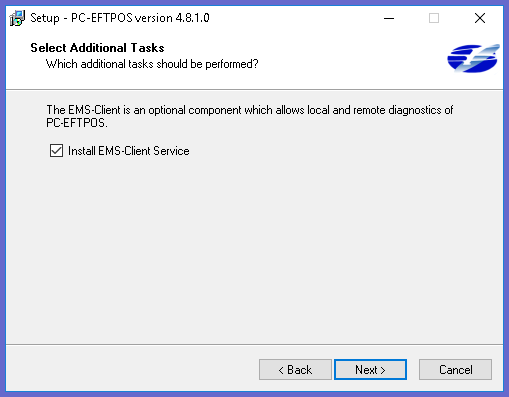

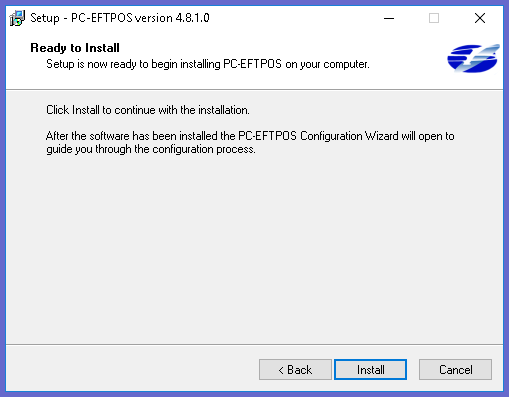

      3. Tick the Install EMS-Client Service box, click Next and then Install

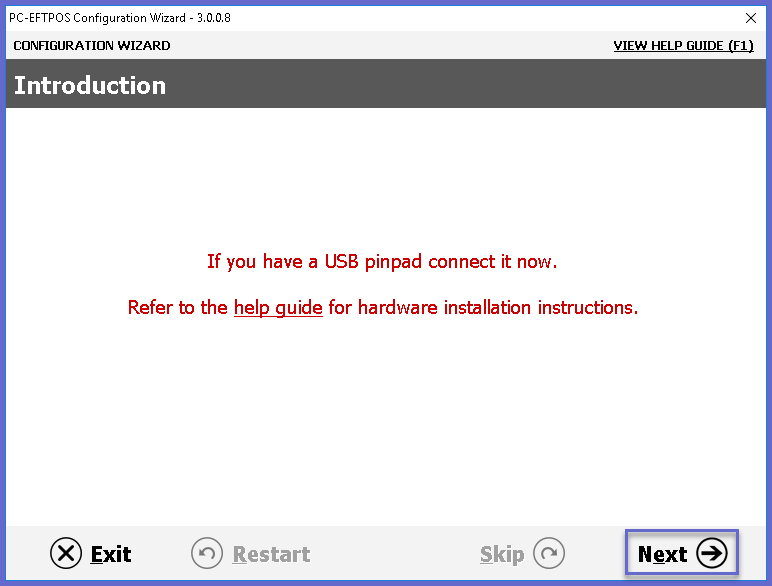

      4. Once installed, the PC-EFTPOS Configuration Wizard will then open which will allow the EFTPOS terminal to be added

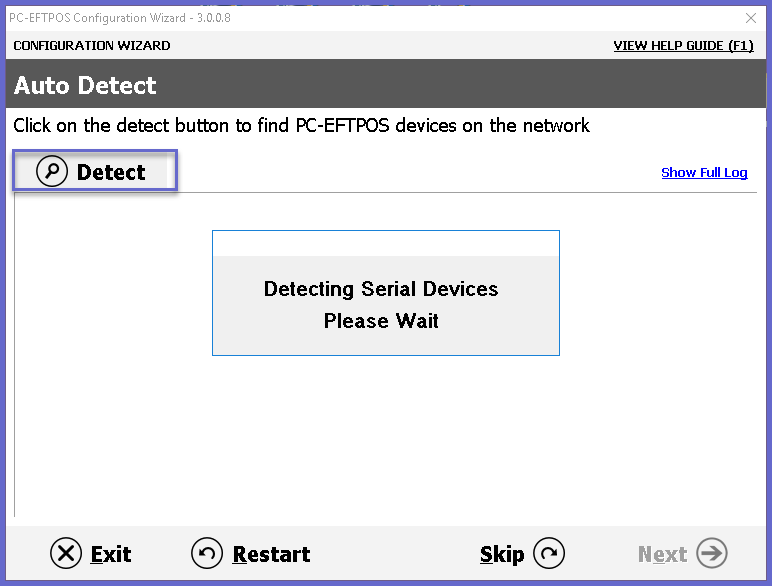

      5. Click Next and then Detect (ensure that the EFTPOS terminal is connected to the computer)

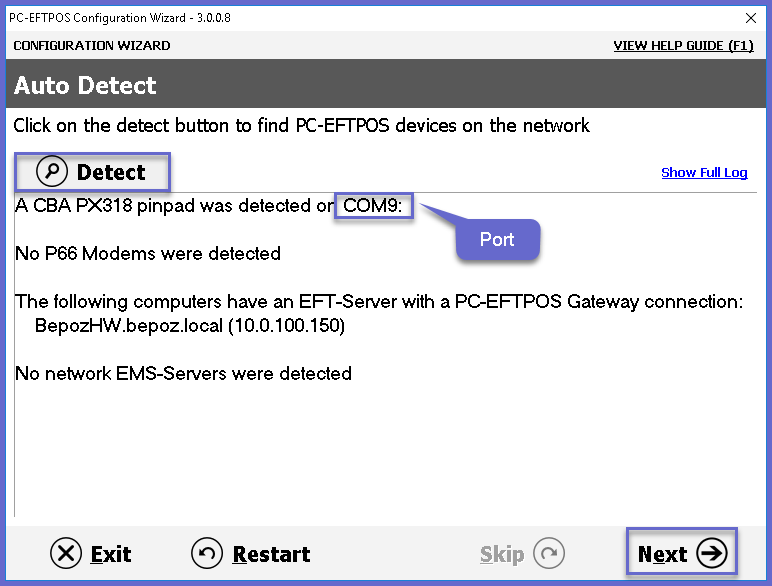

      6. If successful, the Configuration Wizard will display the EFTPOS device

      • Please take note of the port that the device was respectively installed on and click Next

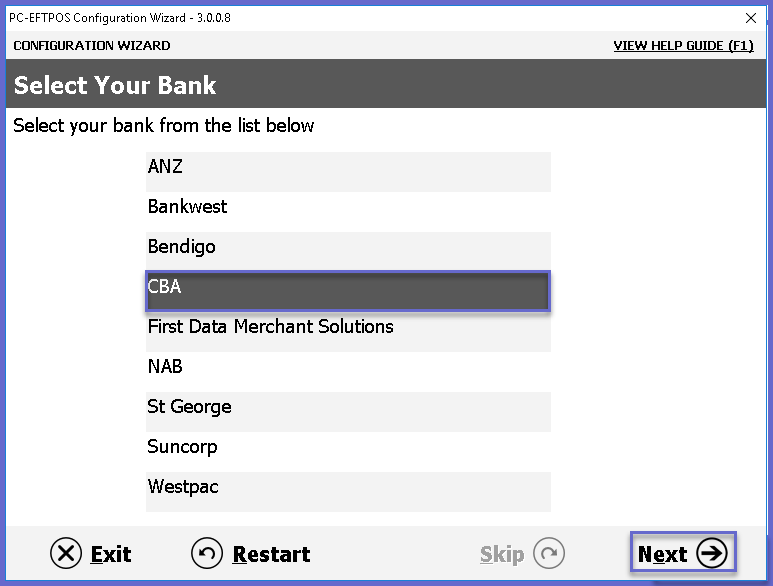

      7. Select the respective bank that will be associated with the EFTPOS terminal and click Next

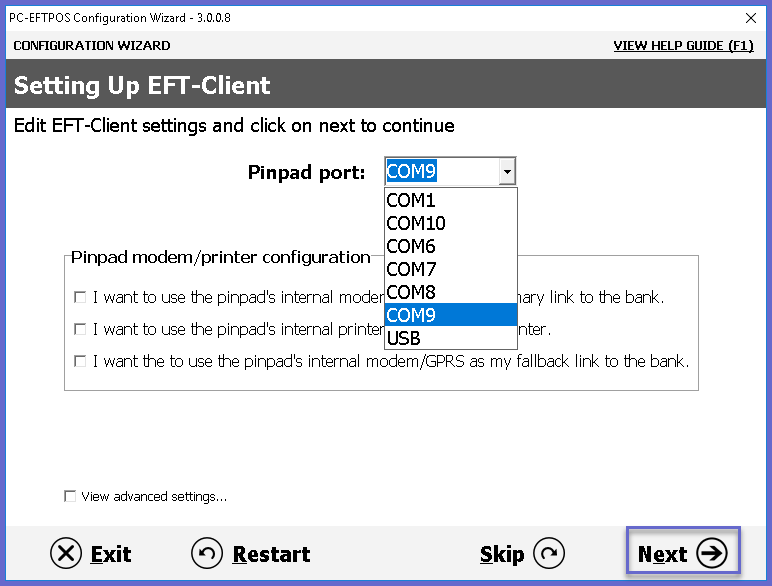

      8. Within the Pinpad port drop-down menu, select the Port that was identified in step 7 that the EFTPOS terminal was installed on and click Next

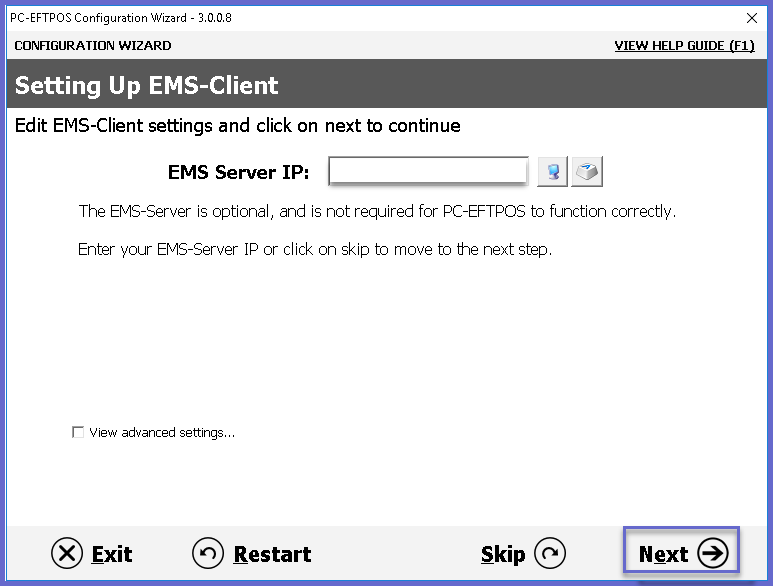

      9. For the EMS Server IP, leave it blank and click Next

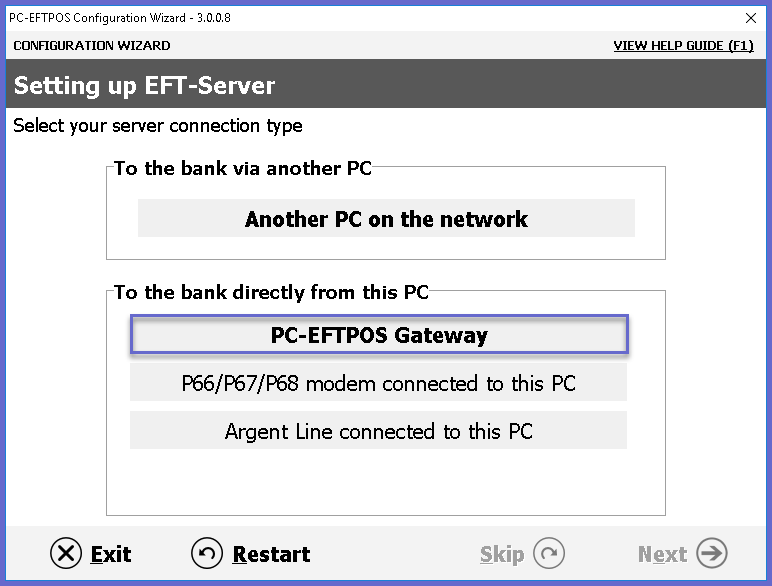

      10. Click PC-EFTPOS Gateway and an option will be given to check if another EFT Server connection is required

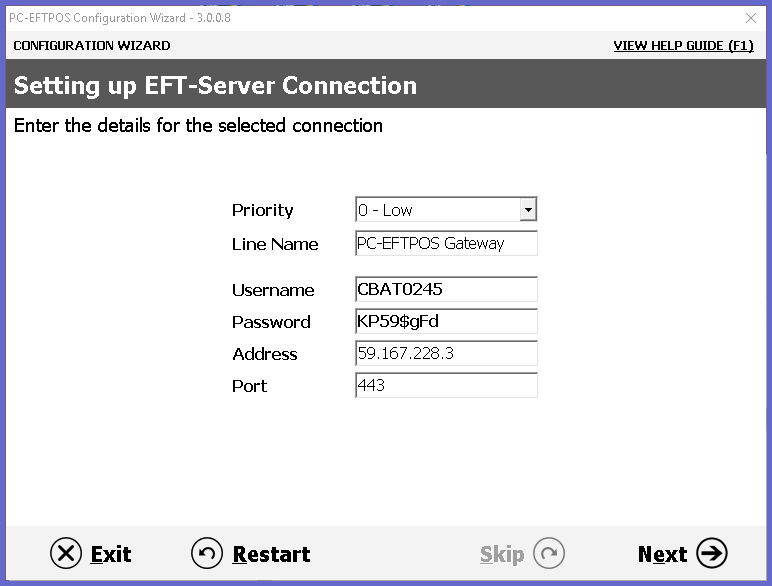

      11.  To set up the EFT-server, fill in the in the required fields as shown below (Please see Administrator or supervisor for these credentials)

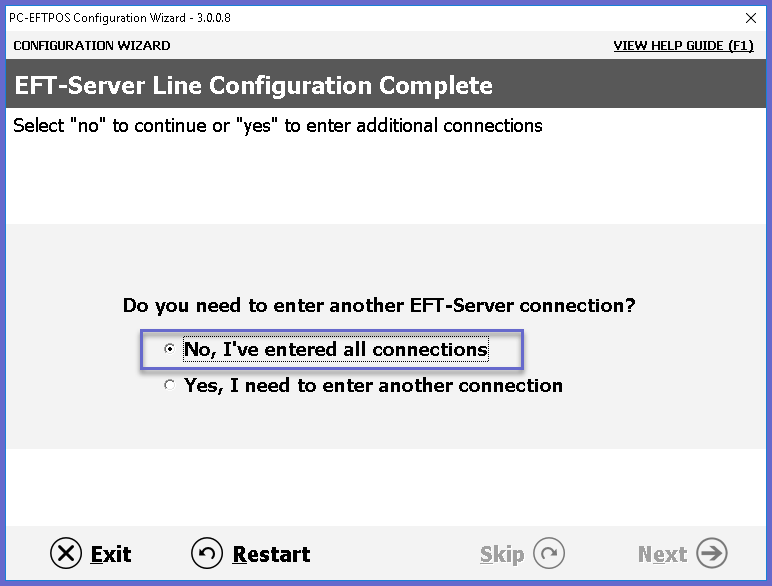

      12. Select "No, I've entered all the connections"




      13. Click on the Complete button to finalize the installation

      Checking EFTPOS Connectivity

      • After successfully installing the EFT Setup and Configuration wizard, a number of programs will now appear on your taskbar which will be located at the bottom right hand of the screen.

        • PC-EFTPOS Client ( White C Icon)

        • EFT-Server UI (Green S Icon)

        • EMS Client (Teal C Icon)



      • To check the connectivity status of the Albert EFTPOS terminal, the PC-EFTPOS client icon will have an indicator light to display the current Terminal Status

        • Green: Online

        • Amber: Offline

        • Red: No Device Configured
