Aristocrat nConnect Interface
      Back to home
      1. INTERNAL - Bepoz Help Guides
      2. Interfaces | CALink, Accounts & Gaming
      3. Aristocrat nConnect Interface

      3 | Aristocrat nConnect Interface BackOffice Setup

      This article provides a BackOffice setup guide for the Aristocrat nConnect interface including setup at Venue and Workstation level, the Scheduled Job. Oasis Loyalty is a customer experience management system which prioritizes customer service and experience to create the best service for customers.

      This article provides a BackOffice setup guide for the Aristocrat nConnect interface including setup at Venue and Workstation level, & the Scheduled Job.

      Oasis Loyalty is a customer experience management system which prioritizes customer service and experience to create the best service for customers.

      Prerequisites

      • Minimum Bepoz version of 4.7.2.9 & onwards
      • For an operator to be able to set up Aristocrat nConnect, the following privileges must be enabled
        • Venue Maintenance "Flags" Tab
        • System Setup: "All System Setup Flags"

      Backoffice Setup

      • There are three (3) BackOffice setups that need to be configured which allow BackOffice to connect to CALink

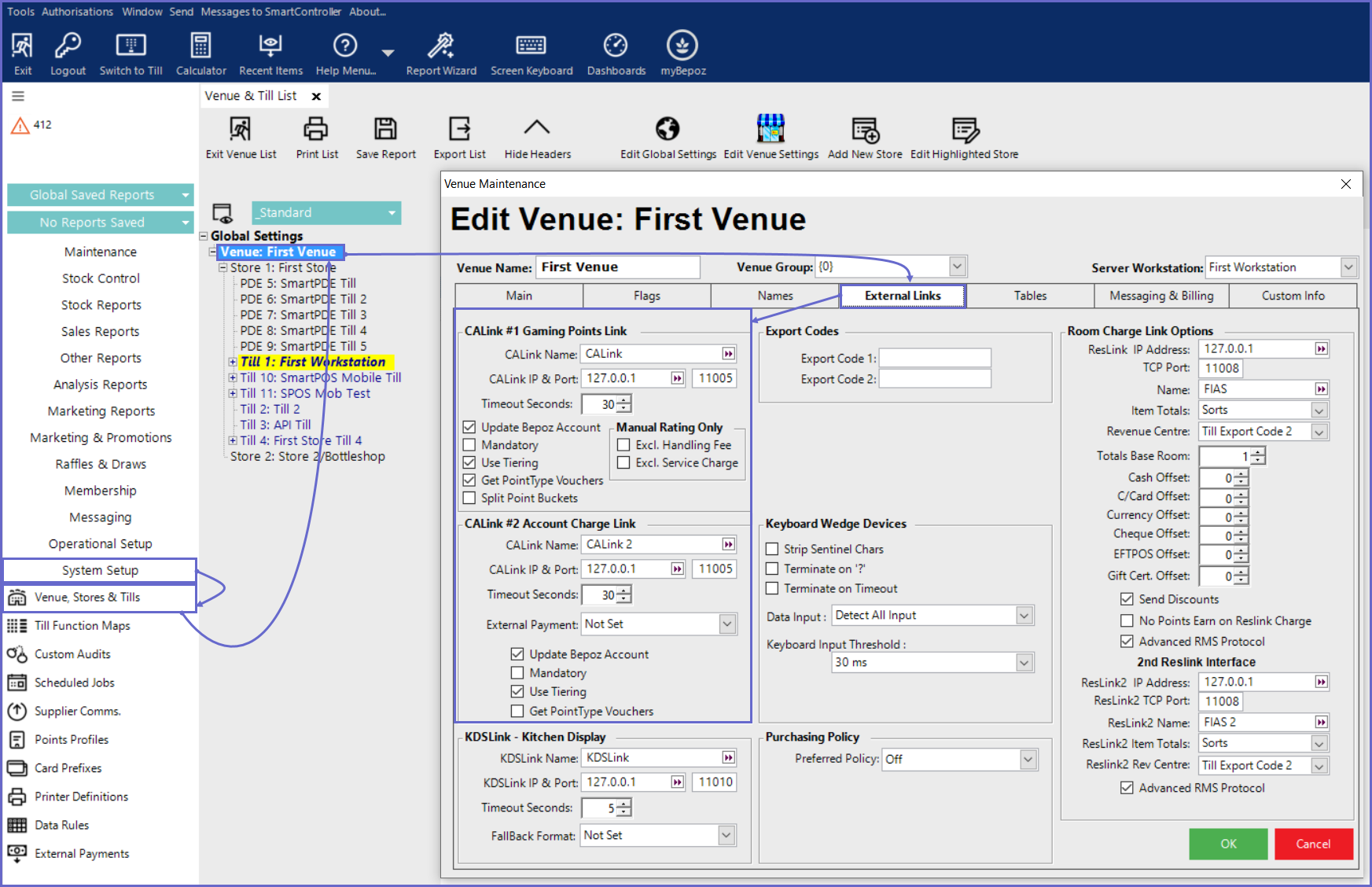

      Venue Setup

      • Go to Backoffice > System Setup
      • Select Venue, Stores & Tills, and open Venue Maintenance
      • Select a Venue and open Venue Maintenance
      • In the External Links Tab, set the CALink #1 Gaming Points Link & CALink #2 Accounts Charge Link as follows:

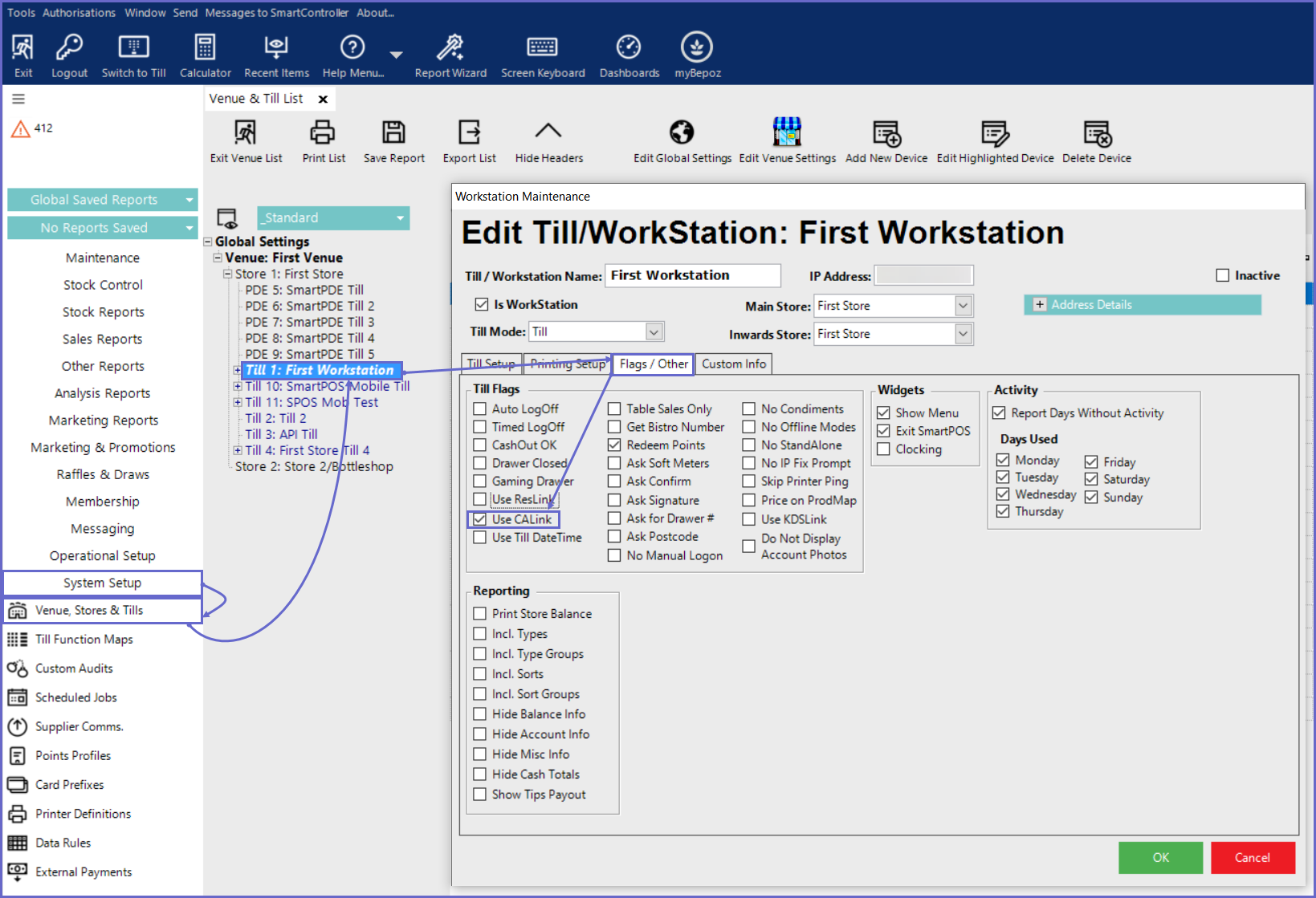

      Till/ Workstation Setup

      • Login to Backoffice and go to System Setup
      • Go to Venue, Stores & Tills which will open a window
      • Select a Till and open Workstation Maintenance
      • In the Flags/Other Tab, enable the 'Use CALink' Flag




      "n Connect Sync" Scheduled Job

      • Login to Backoffice and go to System Setup
      • Go to Scheduled Jobs and click on Add Job
      • Details are as follows:
        • Job Name: As needed
        • Job Type: External DLL
        • DLL Name: Jobgaming.Dll
        • ClassName: n Connect Sync
        • Schedules: Set as needed
        • Job Options:
          • Use Template Account:
            • If ON: An Account with an Account Number named TEMPLATE will be used as the base settings for the imported accounts
            • If OFF: An Account with an Account Number named TEMPLATE will not be used as the base settings for the imported accounts
          • Use CALink Group Names:
            • If ON: Create Group Names in the same format as CALink
            • If OFF: Groups will be created based on the Import below Group
          • Use Tiering:
            • If ON: Accounts will be created/updated as per their tiers set within Aristocrat nConnect
            • If OFF: Accounts will not be created/updated as per their tiers set within Aristocrat nConnect
          • Debug:
            • If ON: Creates log files within C:/Bepoz/Data/CALink_Logs
            • If OFF: Does not create log files within C:/Bepoz/Data/CALink_Logs
          • API URL: API URL provided by Aristocrat nConnect
          • Identity URL: Identity URL provided by Aristocrat nConnect
          • Version: Version number provided by Aristocrat nConnect
          • Scope: Scope provided by Aristocrat nConnect
          • Client ID: Client ID provided by Aristocrat nConnect
          • Client Secret: Client Secret provided by Aristocrat nConnect
          • Username: Username provided by Aristocrat nConnect
          • Password: Password provided by Aristocrat nConnect
          • Account Group: Account Group where members need to be imported
