      7 | Bematech MP200 Impact Printer

      This article contains notes on how to configure a Receipt Printer Device for Model Bematech MP200. NB: While this Printer Hardware can be used along with Bematech KDS, this is not a requirement, and both can function separately. This article is merely a guide for the Printer Device setup, not a comprehensive guide for the Printer Hardware itself.

      This article contains notes on how to configure a Receipt Printer Device for Model Bematech MP200.

      NB: While this Printer Hardware can be used along with Bematech KDS, this is not a requirement, and both can function separately. This article is merely a guide for the Printer Device setup, not a comprehensive guide for the Printer Hardware itself.

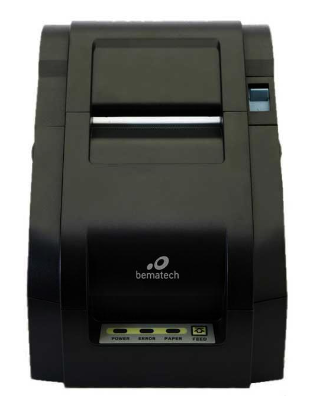

      Model



      Technical Specifications



      Model

      Make

      Printer Type

      Port Name

      Baud

      Data Bits

      Stop Bit

      Parity

      RTS

      CTS

      DTR

      DSR

      Handshake

      Terminator

      Connection Type

      Cable Type

      Dip Switches

      1|2|3|5|6|7|8...

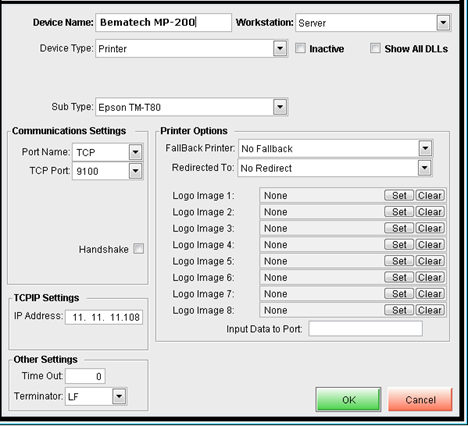

      Screen Shots

      Bematech

      MP-200

      Epson TM-T80

      TCP

      9100

      N/A

      N/A

      N/A

      N/A

      N/A

      N/A

      N/A

      False

      LF

      Network
      • Ethernet






      Emulation Types

      Default

      Epson TM-U200

      Cannot send Partial Code

      Must set the DIP Switches to Auto Cutter


      Citizen iDP3540

      Partial Cut Code = ESC P 1 (1B5001 if fails try 1B5031)





      Add the steps involved:

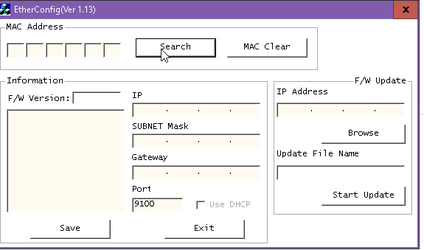

      1. On a computer as the same network as the printer install Ethernet_Interface_Config_Utility.exe
        1. UDP port 27700 must be open
        2. Rarely, if the computer has multiple NIC's, you may need to temporarily disable the other NIC(s) in Device Manager so that EtherConfig uses the correct one to send the discovery broadcast.
      2. Click search
      3. Enter in the IP Address information
      4. Hit Save
      5. Restart the printer ​​​​​​​​​​​​​​
