      5 | Bepoz Diagnostics Workstation Settings

      Learn how to covers an overview of the "Settings for a BackOffice Workstation" Tab within  the "SQL & Firewall" tab of the Bepoz Diagnostics Dashboard. A m ajority of the configuration in this tab will check connectivity with various servers. Prerequisites  N/A Settings for a BackOffice Workstation Field Description Workstation Setup Read this First...

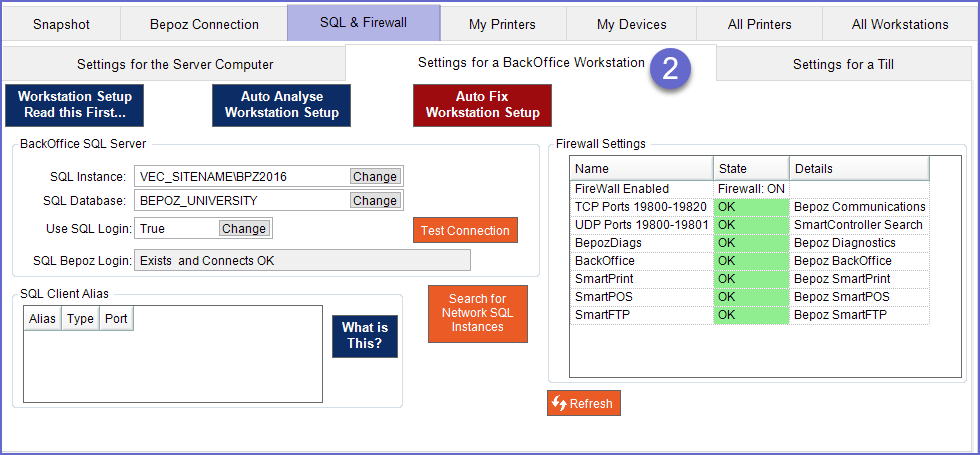

      This article covers an overview of the "Settings for a BackOffice Workstation" Tab within the "SQL & Firewall" tab of the Bepoz Diagnostics Dashboard. A majority of the configuration in this tab will check connectivity with various servers.

      Prerequisites

      N/A

      Settings for a BackOffice Workstation

      Field

      Description
      Workstation Setup Read this First...
      • The 'Workstation Setup Read This First...' button will display information on Workstation computer setup
      • This section explains how the diagnostics work and contains operator guides to run the system
      Auto Analyse Workstation Setup

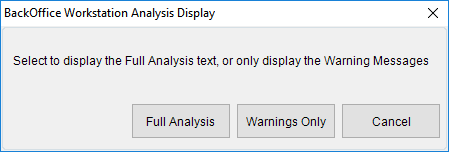

      • This button allows operators to view either a Full Analysis Text or Display Warnings only


      Auto Fix Workstation Setup
      • This button will automatically perform a full analysis and prompt operators to fix error automatically
      BackOffice SQL Server
      • SQL Instance - Displays the SQL Instance the till/ workstation is connected too
        • The Change button allows changing the SQL Instance
      • SQL Database - Displays the SQL database that the till/workstation is connected too
        • The Change button allows changing the SQL Database
      • Use SQL Login - Displays the SQL login status
        • The Change button allows changing the Use SQL Login status
      • SQL Bepoz Login -Displays the connection status of the Bepoz SQL login
      • Test Connection - Performs a test on the SmartController SQL BackOffice setups

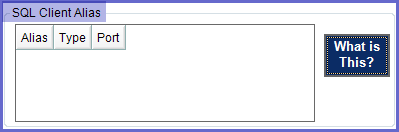

      SQL Client Alias
      • Displays all installed SQL client instances


      Search for Network SQL instances
      • 'Search for Network SQL Instances' will display a list of SQL instances on the network

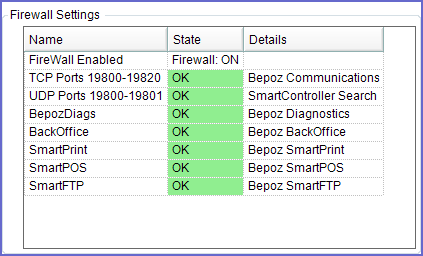

      Firewall Settings
      • Lists all the firewall exception required to run Bepoz along with the connection status of the Firewall state
      Refresh
      • This button will Refresh the Diagnostics screen
