      7 | Bepoz KDSSend Scheduled Job

      S covers how to set up the Scheduled Job called "Bepoz KDSSend" within BackOffice.

      This articles explains how to set up the Scheduled Job called "Bepoz KDSSend" within BackOffice.

      Prerequisites

      • Bepoz version 4.6.2.1 only
      • To setup the scheduled job, the applicable Operator Privileges will need to be enabled
        • Operator Maintenance 'General' Tab
          • System Setup: "Maintain Scheduled Jobs" Flag

      Bepoz KDSSend Scheduled Job

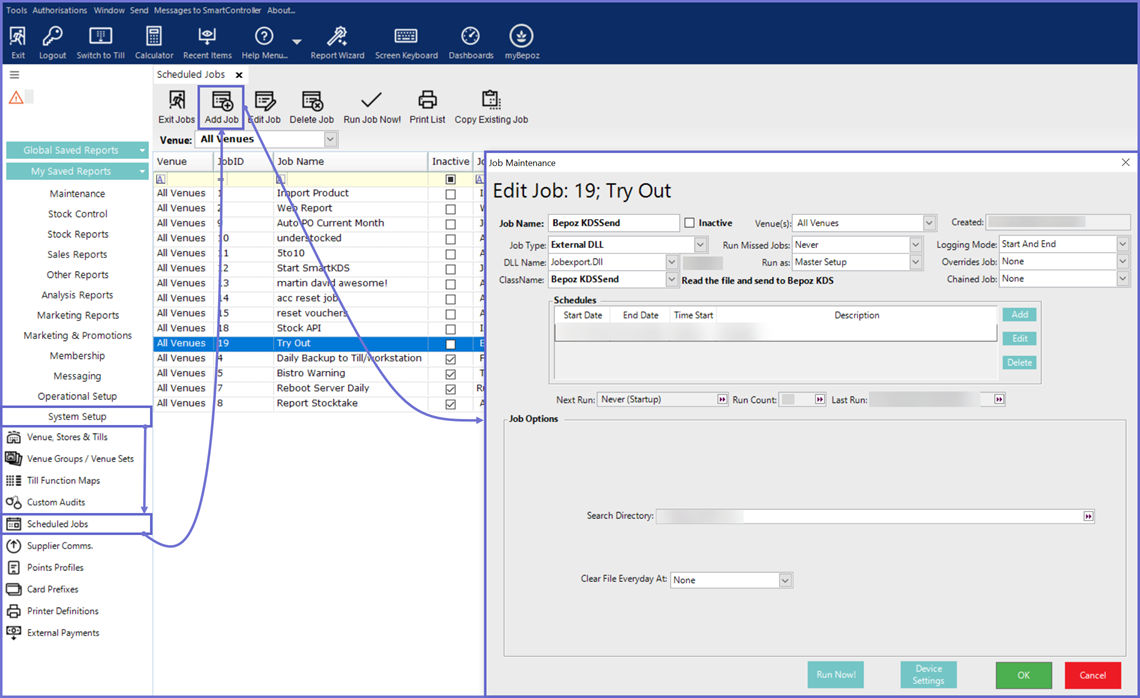

      • Login to Backoffice and go to System Setup
      • Go to Scheduled Jobs and click on Add Job
      • Details are as follows:
        • Job Name: As per desire
        • Job Type: External DLL
        • DLL Name: Jobexport.Dll
        • ClassName: Bepoz KDSSend
        • Schedules: Set as per desire
        • Job Options:
          • Search Directory: This is the full Path name of the directory that holds the send files
          • Clear File Everyday At: Set a Time to trigger system to clear all Previous Day files data in SendData, BumpData and TableConsolidations directories

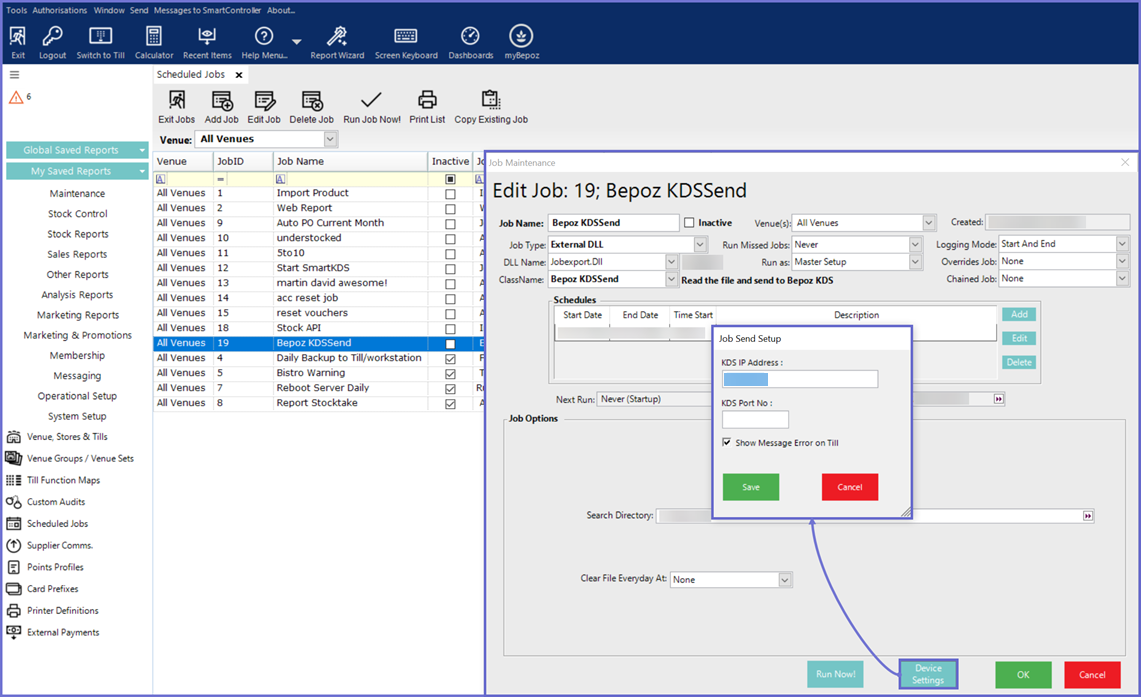

        • Device Settings:
          • KDS IP Address: IP Address of the KDS Device
          • KDS Port No: Port No of the KDS Device
          • Show Message Error on Till: Shows an error message on the Till incase there is an error in KDS
