      4 | Create Product Label using XML Editor

      This article covers an overview of how to create a Product Label using XML Editor. After reviewing this article, the end-user will be able to create their own Product Labels using XML Editor.

      This article covers an overview of how to create a Product Label using XML Editor.

      After reviewing this article, the end-user will be able to create their own Product Labels using XML Editor.

      Prerequisites

        • To access Product Promotion features, the applicable Operator Privileges   will need to be enabled:
          • Marketing & Promotions  Tab
            • Promotions "Create Product Labels"

        Setting Up Product Labels

        • The file name must start with "LBLPRD_*.xml"
        • You will need to rename them as the above file name (the * represents the file name) eg - LBLPRD_Test.xml
        • The LBLPRD_*.XML has to be saved to the 'Bepoz\Data\' directory, also to ensure you have a backup save a copy to the 'Bepoz\Programs\' directory.

        How to use XML Editor

        • Launch the XML Editor application - this should be under the workstation's Bepoz folder, under Programs called "xmleditorhost.exe"

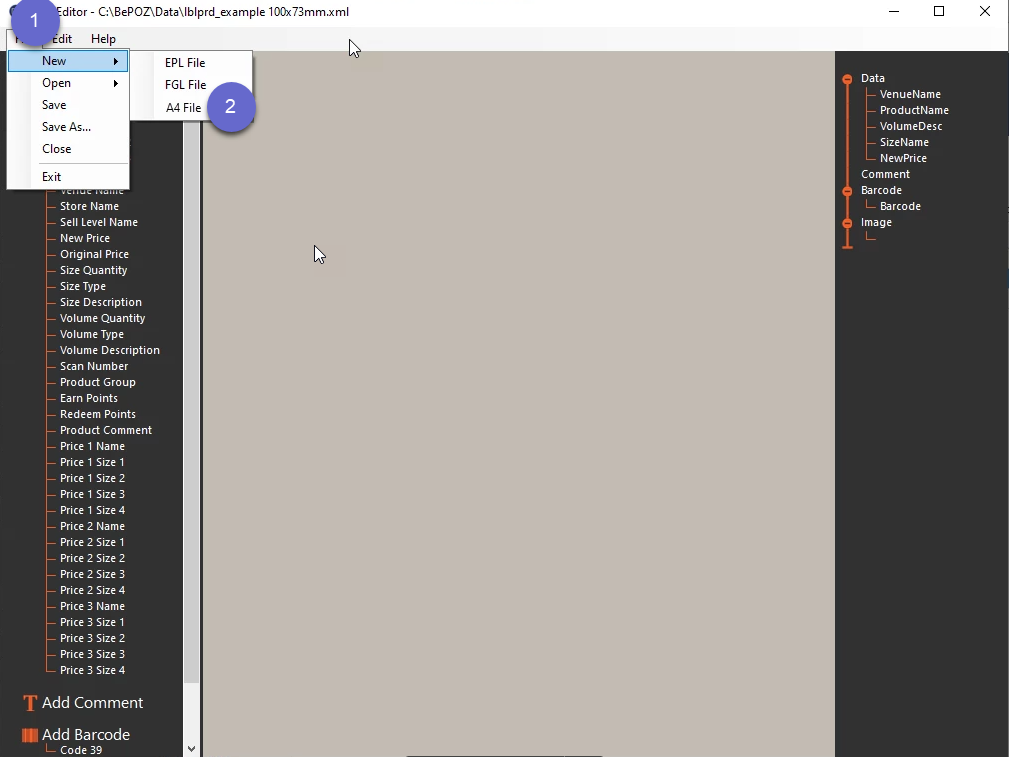

        • Navigate to File >  New > A4 file

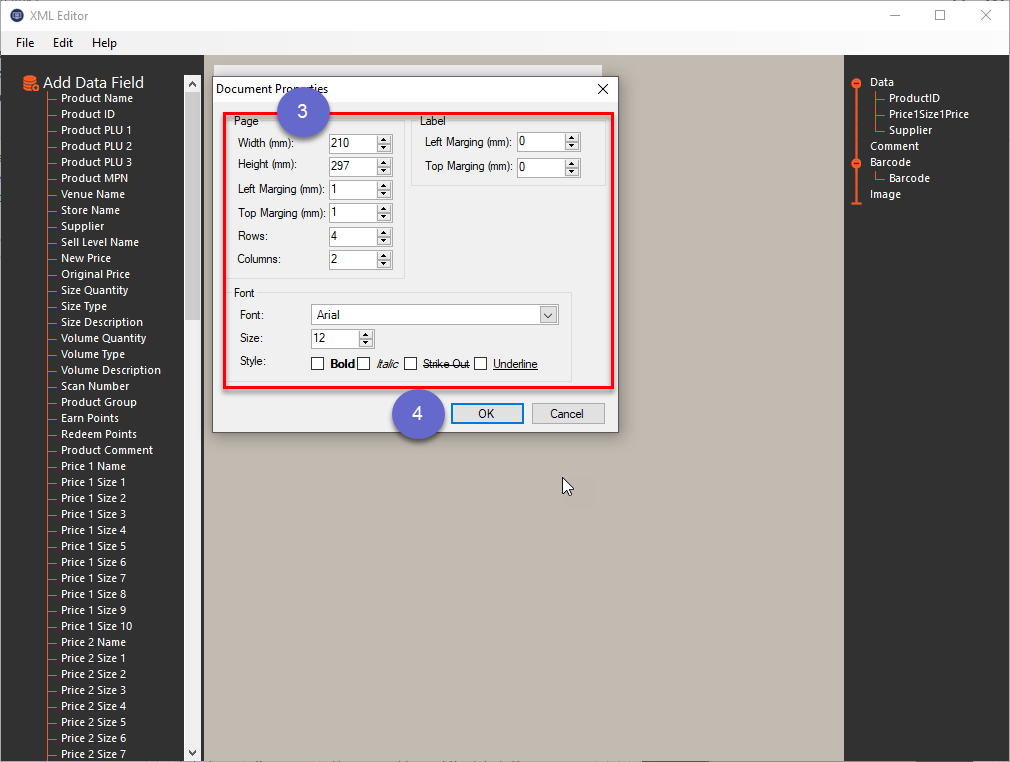

        • Enter the label settings (in millimetres), else use the default settings given
        • Select "OK"


        Add Data Label

        • A blank space will display
        • Right-click on the page and select Add Element, and then Data options
          • From there select the label fields desired

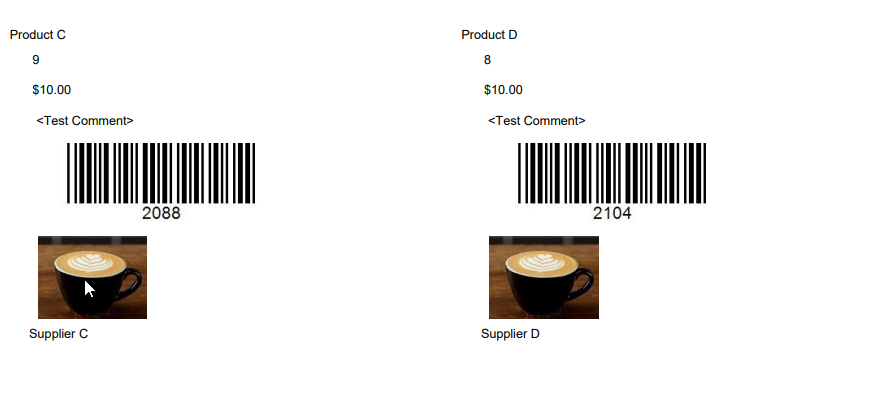

          • See example below:


        Edit/Delete Data Label

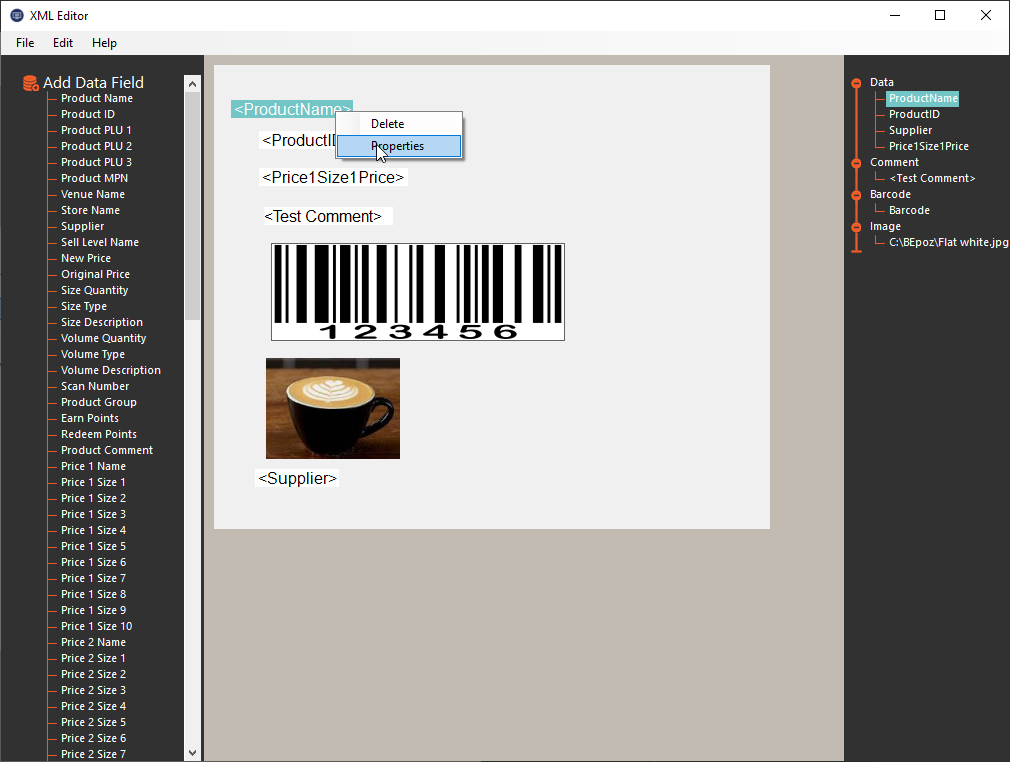

        • To edit/delete the Data Label, right-click on the field and select Properties option
          • A Label Properties window will display and allows you to edit the Font Size, Name, and Style; else select the Delete option that will remove the Data label


        Saving Label and Edit an Existing A4 Label

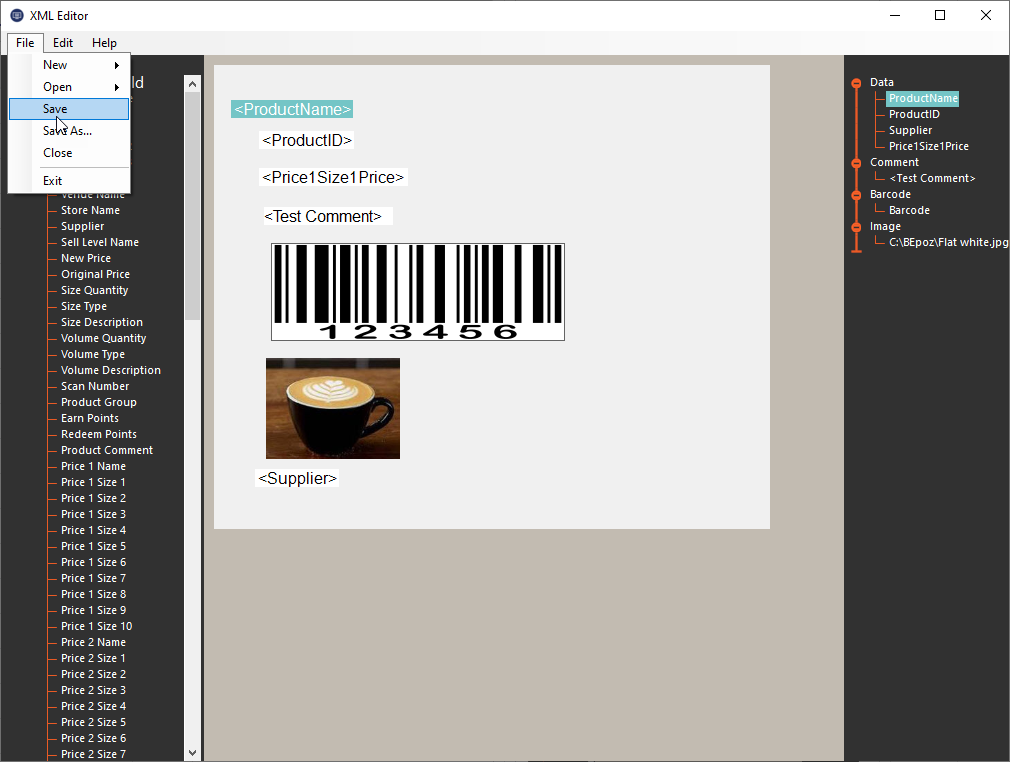

        • Navigate to File > Save
        • Save it to under Bepoz\Data folder and name the file name LBLPRD_*.xml  (the * represents the file name) eg - LBLPRD_Test.xml

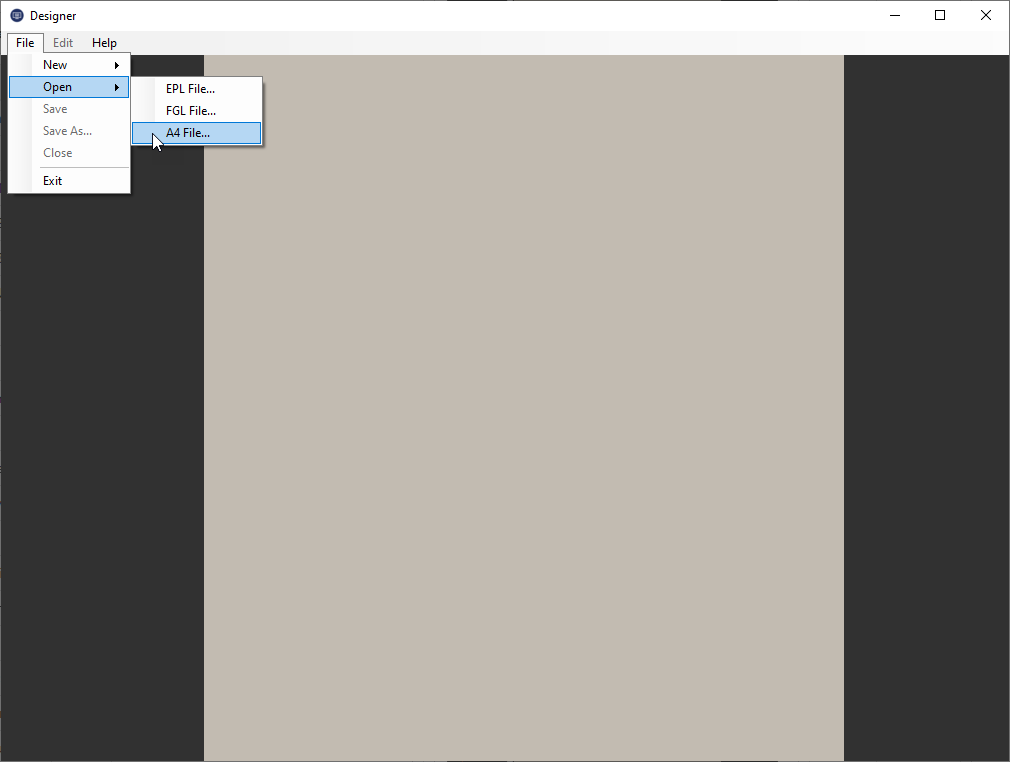

        • To edit an existing A4 Label, Navigate to File > Open > A4 File
        • Select the existing A4 Label and select Open


        Test Label in BackOffice

        • To test the label that has been created in XML Editor, open BackOffice and Navigate to Marketing & Promotions and select Product Labels
        • Select the label from the drop-down list under Label
        • Select Add Manual Item button
        • Select the Product
        • Enter the number of Labels EACH to Print and select OK
        • Select the Store
        • Select Print Labels
        • Enter the number of labels to skip and select OK
