      3 | Door Entry Terminal Hardware Setup

      This article covers how to set up a Hardware Door Entry Terminal in BackOffice. A Door Entry Terminal is a Till that has no Till functionality; the terminal can be configured in a monitor as well. The monitor will display a slideshow of the photos and videos in the Media zipfile when waiting for members to swipe their card.

      This article covers how to set up a Hardware Door Entry Terminal in BackOffice. A  Door Entry Terminal is a Till that has no Till functionality; the terminal can be configured in a monitor as well. The monitor will display a slideshow of the photos and videos in the Media zipfile when waiting for members to swipe their card.

      When the customer or member swipes, a photo or message will be displayed  and any prize promotions that apply will be displayed and awarded. Here, tickets can also be printed from an attached printer or another printer (barrel printer).

      Bepoz also allows for creating a Door Terminal by setting up the Device and Workstation from Backoffice, the process of which is explained in this article.

      Prerequisites

      • To access Door Entry Terminal Settings, the applicable Operator Privileges   will need to be enabled
        • Operator Maintenance 'General' Tab
          • System Setup: "Access Venue, Stores & Tills" Flag
          • System Setup: "Maintain Venue, Stores & Tills" Flag
          • System Setup: "Maintain Global Settings" Flag

      Door Entry Terminal

      • A Door Entry Terminal is used for displaying Prize promotions when a card is swiped or barcode is scanned
      • This type of terminal can be used for lottery businesses where a customer purchases a ticket and it is later scanned to check the result of the lottery
      • For a Door Entry Terminal, a separate workstation has to be configured along with a device suitable for the terminal; this terminal can only be used to display the results and if an operator wants to process any transaction, the Till Mode has to be changed

      Hardware Setup

      • To set up a Door Entry Terminal in Bepoz, the TillMode must be set to the Door Terminal with a Default Operator
      • To do so; Go to Venue, Store & Tills

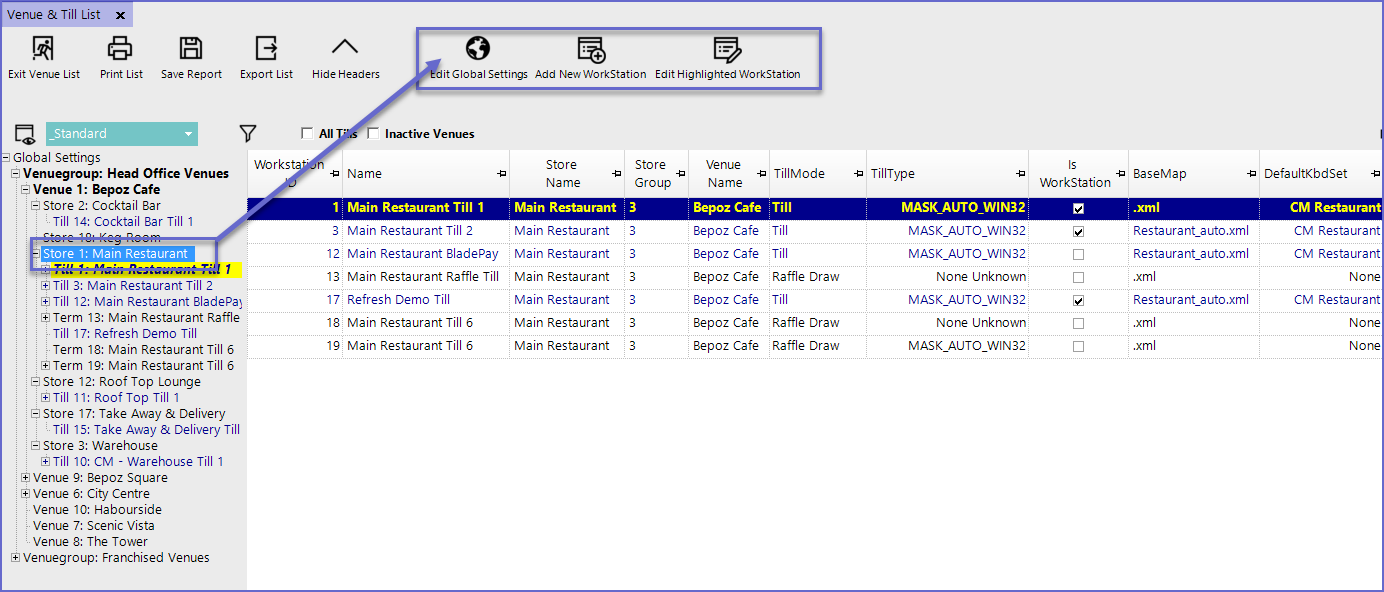

      • Highlight a store which will display the following options in the header

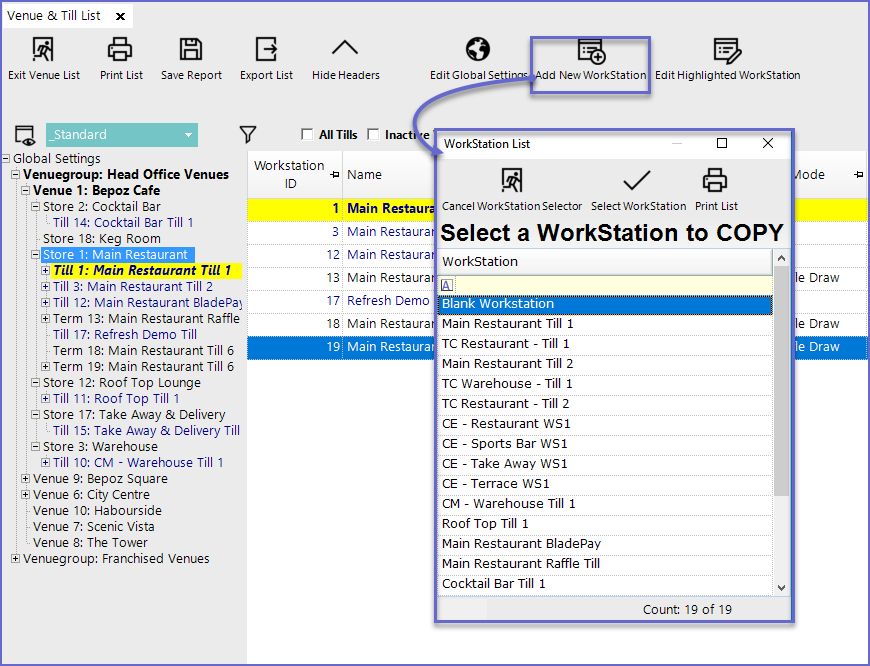

      • Click on the 'Add New Workstation' tab which will display a list of Workstation

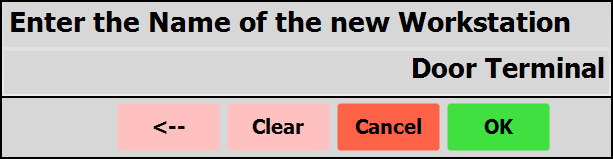

      • Click on the 'Blank Workstation' which will prompt operators to enter the Name for the Till
