3 | Doshii Integration - Till Extension Device Setup

This article covers the Till Extension Device setup for the Doshii Integration with Bepoz.

Minimum Bepoz version of v4.7 and onwards
For an Operator to be able to setup Doshii Integration, the following Operator privileges must be enabled:

In order for Bepoz to be able to receive real-time orders from Doshii and to communicate back the updated data, a Till Extension Device has to be created
After logging into BackOffice, complete the following steps to create & configure a Doshii Till Extension Device:

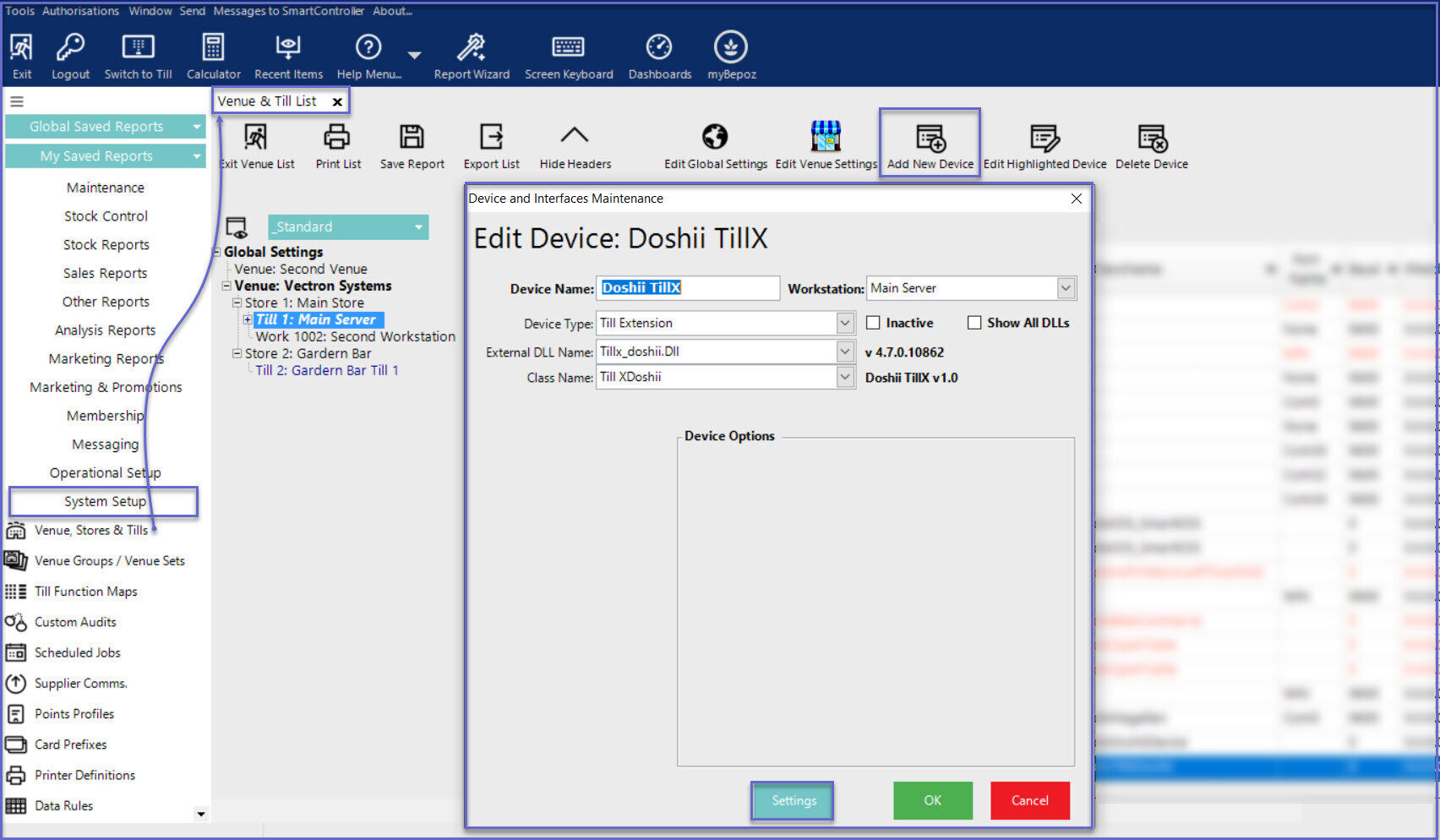

Navigate to the System Setup component in the sidebar, expand, and select Venue, Stores & Tills to open the Venue & Till List Tab
Highlight the desired Till and click on the Add New Device button in the header; when prompted select 'Blank Device' and a New Device and Interfaces Maintenance window will open
Enter a relevant Device Name, set the Device Type to 'Till Extension', set the External DLL Name to 'Tillx_doshii.Dll', and the Class Name to 'Till XDoshii'

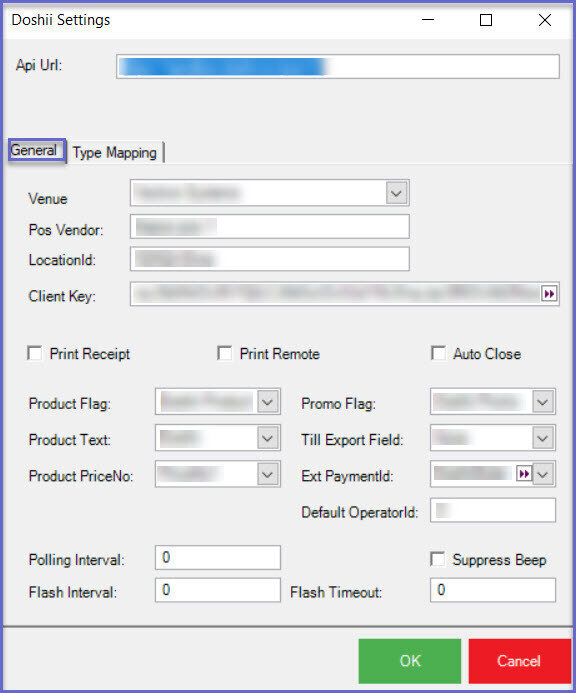

Click the "Settings" button at the bottom of the window to open a separate "Doshii Settings" window

Venue: Select the Venue from the drop down list
Pos Vendor: Enter the POS system ID provided by Doshii; NB: the value provided should be in lower case
LocationId: Enter the location ID provided by Doshii
Client Key: Enter the Client Key provided by Doshii
Print Receipt flag: When enabled, a receipt is printed for every transaction
Print Remote flag: This controls whether the print job is queued to the remote printers (Kitchen printers) for the Products
Auto Close flag: This will auto-close all the accepted orders from Doshii

ON: When the flag is on, the Doshii orders which are accepted at SmartPOS are closed automatically
OFF: When the flag is off, the orders are not auto-closed, the Operator will have to manually process the orders at SmartPOS

Product Flag: This is the custom flag that has been created and set for the Products that will be included with this integration; the products with this custom flag are sent to Doshii
Product Text: This is the custom text field set for the product
Product PriceNo: Select the Price Number from the drop-down list; the selected Price Number will be used when a menu is sent to Doshii
Promo Flag: This is the custom flag set on a promotion; this indicates whether a promotion should go to Doshii; select one from the drop-down list
Till Export Field: This is the field where Doshii Till ID is stored; select one of the Till Export values from the drop-down list
External PaymentId: This will be external payment that will be used for the payments made from Doshii will attribute to

Create an external payment for Doshii by following the External Payments Configurations and select the External Payment ID from the drop-down list

Default OperatorId: Enter the default Operator ID that will be used
Polling Interval: This is the frequency that the system will query Doshii to determine if there are any pending orders
Suppress Beep: Suppress Beep prevents the till from generating audible notifications, the default is to do so
Flash Interval: Flash Interval determines the speed with which any visible pending orders button will flash if pending orders are present
Flash Timeout: Flash Timeout determines how long the button will flash for i.e. for continuous flashing the Polling Interval and the Flash Timeout would be equal

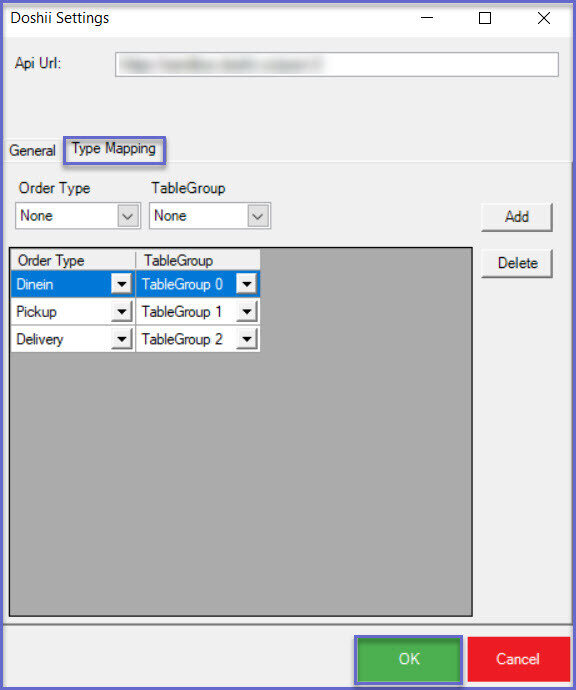

Type Mapping:

Map the TableGroup to each Order Type
Select the Order Type and Table Group respectively from the drop down and click on ‘Add’ button to add the selection

Note: The TableGroup for Doshii Delivery and Pickup order types must be created within the Venue Maintenance "Tables" Tab

2. Click ‘OK’ to save the settings and this will exit from the Doshii Settings window

3. Click on 'OK' again on the Device and Interface Maintenance window to save the Doshii Till Extension Device settings
