      2 | EBET CALink Interface

      This article covers the CALink BackOffice setup guide for the interface to the EBET Gaming System. This interface allows Operators to get customer details and points and redeem them via SmartPOS.

      This article covers the CALink & BackOffice setup guide for the interface to the EBET Gaming System.

      This interface allows Operators to get customer details and points and redeem them via SmartPOS.

      Prerequisites
      • For an operator to be able to setup EBET, the following privileges must be enabled
        • Venue Maintenance "Flags" Tab
          • System Setup: "All System Flags"

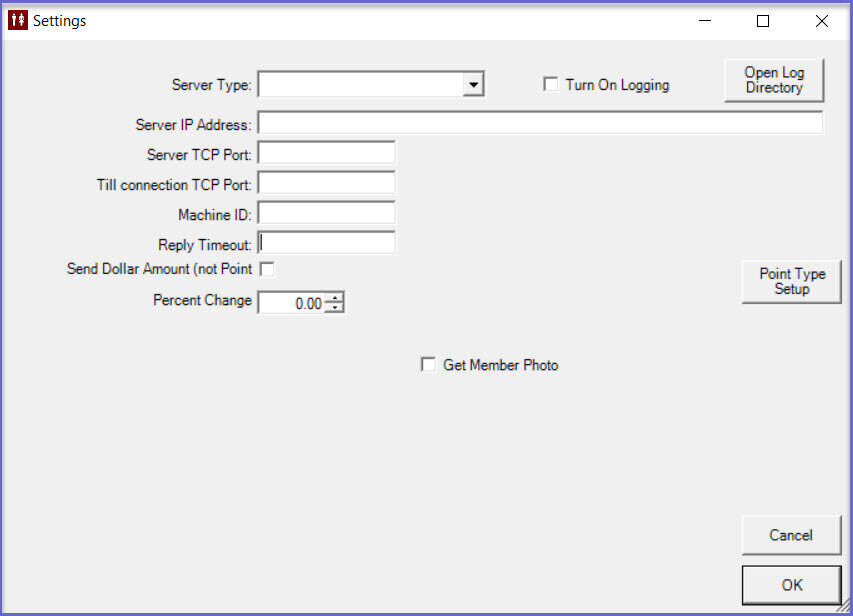

      CALink Setup









      Fields

      Description

      Server Type
      • This is the type of server used: Utopia

      Server IP Address
      • This is the IP Address provided by Utopia

      Server TCP Port
      • This is the port CAlink connects to the interface
      • This is provided by Utopia

      Till Connection TCP Port
      • This is the port at which CALink connects with BackOffice
                Machine ID
      • This is the ID of the Till
            Reply Timeout
      • This is the time (seconds) at which CAlink will timeout while waiting for an answer from eBET
      Send Dollar Amt (Not Point)
      • This flag determines that whether CALink will send through Dollar value or Point value of transaction from SmartPOS to eBET Interface
      Percent Change
      • This is the redeem points percent and the default value is 100.00. The BEpoz redeem points percent must be 10,000% and the redeem point value $0.01. (the Earn percent would be 400% to 1,000% - 25 to 1, 10 to 1)
      Turn On Logging
      • This flag when enabled, creates the CALink logs in the directory  C:\BePOZ\Data\CALink_Logs
      Open Log Directory
      • Opens the CALink logs directory C:\BePOZ\Data\CALink_Logs
      Point Type Setup
      • Setup Multiple Points Bucket





      Backoffice Setup

      • There are mainly two BackOffice setups that need to be configured which allows BackOffice to connect to CAlink

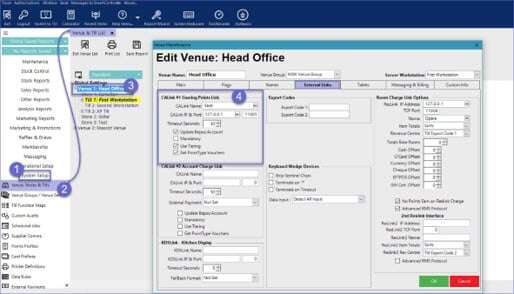

      Venue Setup
      1. Go to Backoffice > System Setup
      2. Select Venue, Stores & Tills, and open Venue Maintenance
      3. Select a venue and open Venue Maintenance
      4. In the External Links Tab, set the CALink #1 Gaming Points Link as follows:

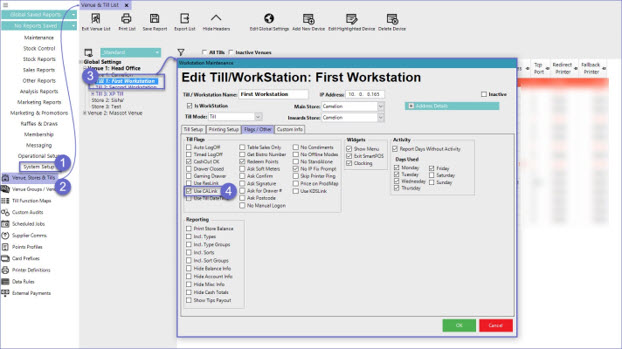

        Till/ Workstation Setup
        1. Login to Backoffice and go to System Setup
        2. Go to Venue, Stores & Tills which will open a window
        3. Select a Till and open Workstation Maintenance
        4. In the Flags/Other Tab, enable the 'Use CALink' Flag

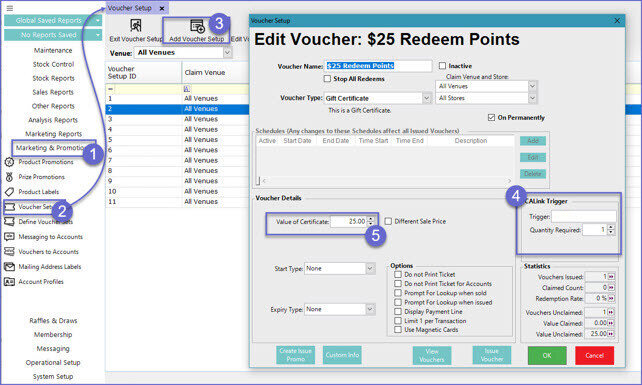

        Voucher Setup

        • Login to Backoffice> Marketing & Promotions
        • Select Voucher Setup which will open a voucher setup window
        • Click on 'Add Voucher Setup window' that will open a form for new voucher format creation
        • In the CALink Trigger section; set the Trigger as the name given for Point Voucher in CAlink Point Type Setup
        • Set the Value of Certificate as required
        • The other configuration is similar to a normal voucher setup
