      Epson TMU220B Printer

      WIKI | Hardware : Epson TMU220B Printer

      Created by OLD | Stephen Shaw, last modified on Aug 24, 2023

      Introduction

      Welcome to the [Agni] wiki page dedicated to the Epson TM-U220B Impact Printer. This resource is designed for Bepoz Support Technicians but may prove useful to other team members.

      Whether you're a technical support member, involved in business development or in any other department, you'll find essential information for troubleshooting, installation and best practices.



      Overview

      The below table is an overview of useful information about the printer.

      Heading

      Data

      Baud Rate (Serial)

      9600

      Bepoz Printer Definition

      Epson TMU220B (View all Printer Definitions)

      Brand

      EPSON

      Connection Type

      IP or Serial

      Default IP

      192.168.192.168

      Default Password

      Admin or Serial Number of Printer

      Default Port

      9100

      Default Username

      Admin or Epson

      Power Supply Type

      3Pin 24V DC PSU

      Printer Type

      Impact (Kitchen)

      Ribbon

      ERC 30/34/38

      Supports Red Black Printing

      Yes

      Supports Cash Drawer

      Yes





      How To: Perform a Self Test

      A self test, checks the printer settings and prints out a document to help you correctly setup the device.

      1. Turn the printer off using the I | O switch. Wait for the printer to completely shut down.

      2. Hold your finger on the feed key, whilst holding, turn the printer back on. Keep holding the feed key.

      3. The printer will then print out the settings. Keep this paper, it contains the BAUD rate and other essential information.

      4. When the first print out is finished, press the feed button again to finish the self test the printer will do a character print.



      How To: Find the IP Address

      The printer must be plugged in and have a paper roll inserted to gather this information.

      1. Turn the printer on using the I | O switch.

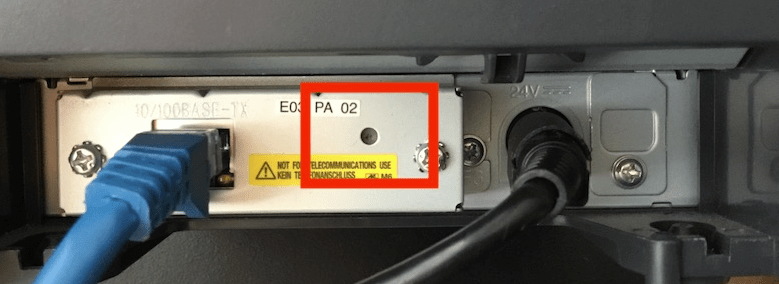

      2. On the back of the printer, find the small Reset button.

      3. Using a paper clip, a pen, or a similar narrow object, press Reset and hold it down.

      4. Wait for the device to start printing, then release Reset.

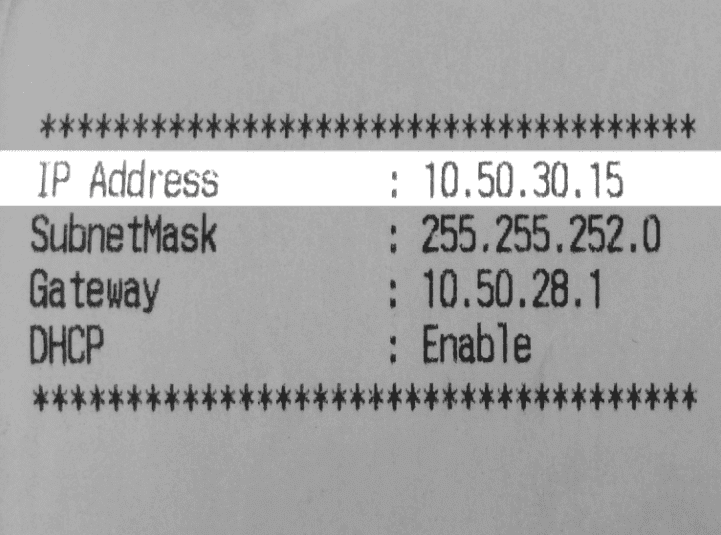

      5. The status sheet will show the IP Address.

      How To: Perform a factory reset

      This will reset the printer back to it’s default IP Address and reset the username and password to the default.

      How To: Change the IP Address

      Changing the IP address is an exact science so be careful. Remember no two devices on the same network should have the same IP Address.

      You need to be on the same network as the device in order to change the IP Address.



      How To: Set this printer up in Back Office

      This guide will help you get the most out of setting the printer up. It assumes you have some basic knowledge of setting up a Device in Back Office. If you don’t check out this article.
