1 | How to Import a KDS Theme

.

This article provides a detailed walkthrough for importing KDS themes and also includes the sample code for creating a basic light and dark theme

Workstation Theme - How to Import

• KDS Workstation allows the customisation of colour and font size of several UI elements in the workstation settings

• KDS Themes can be imported directly from the KDS Server > Workstation Settings
• Themes are built around a JSON file that contains each individual element and their configuration
• Below is a sample file that will provide the user with a basic light theme to get started
• Further customisation can then be done through the workstation settings


Create a new theme file

• Open a new text file and copy the code below into the file
• Save the file as <filename>.json
• It's good practice to save this file to the  default SmartKDS install location "C:\Program Files(x86)\Bepoz\SmartKDS\
• The new theme can now be imported into SmartKDS Workstation using the below guide

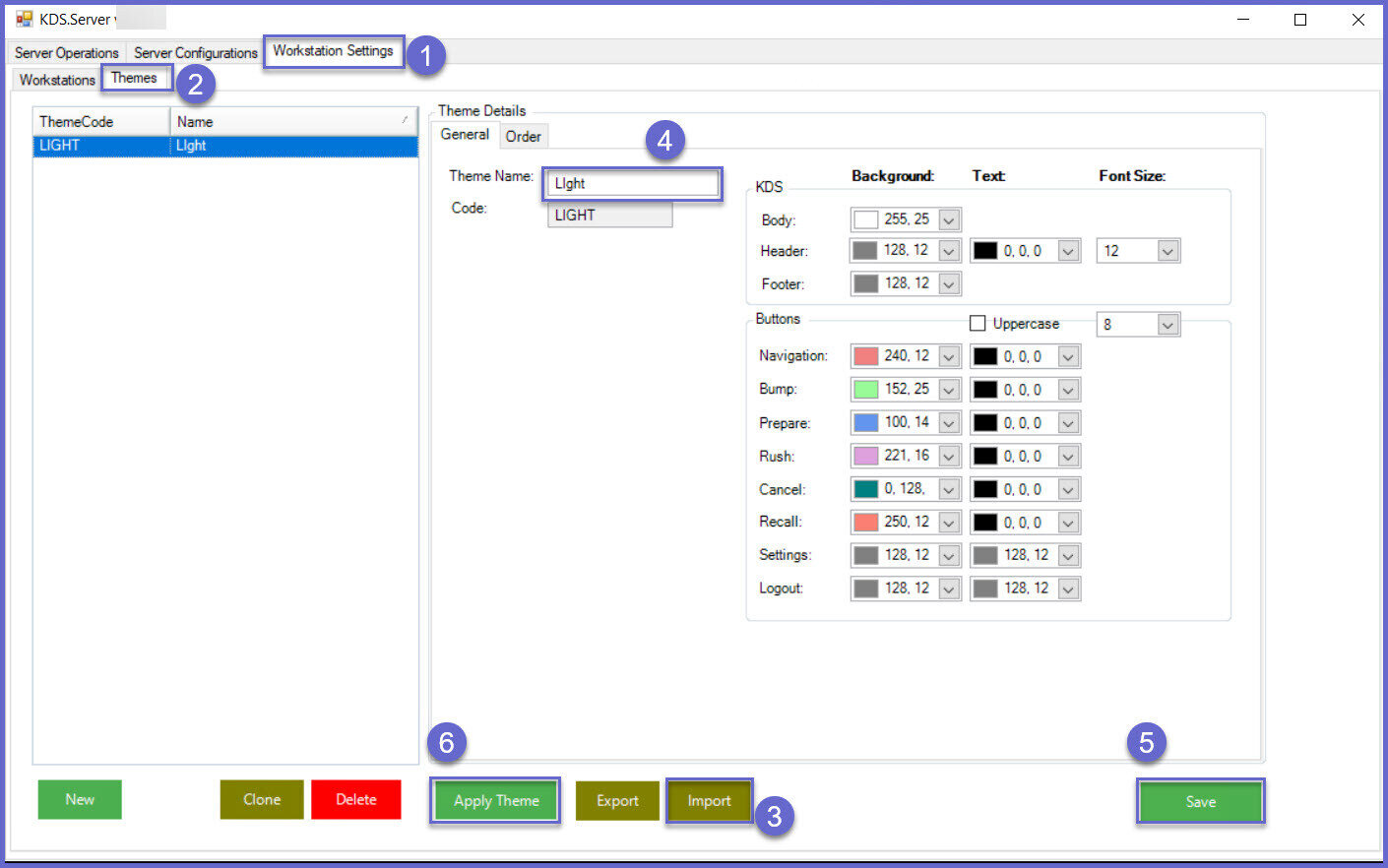

Importing a theme file

• Open the KDS Server application - "C:\Program Files(x86)\Bepoz\SmartKDS\KDS.Server.exe"
• Navigate to the Workstation Settings tab
• Select the Themes sub option
• Select the Import option and navigate to the location where the user has saved the theme file
• Dark Theme Sample
• Light Theme Sample
• Once the theme file has been selected, the user must enter a Theme Name

• Save the theme
• Apply the theme

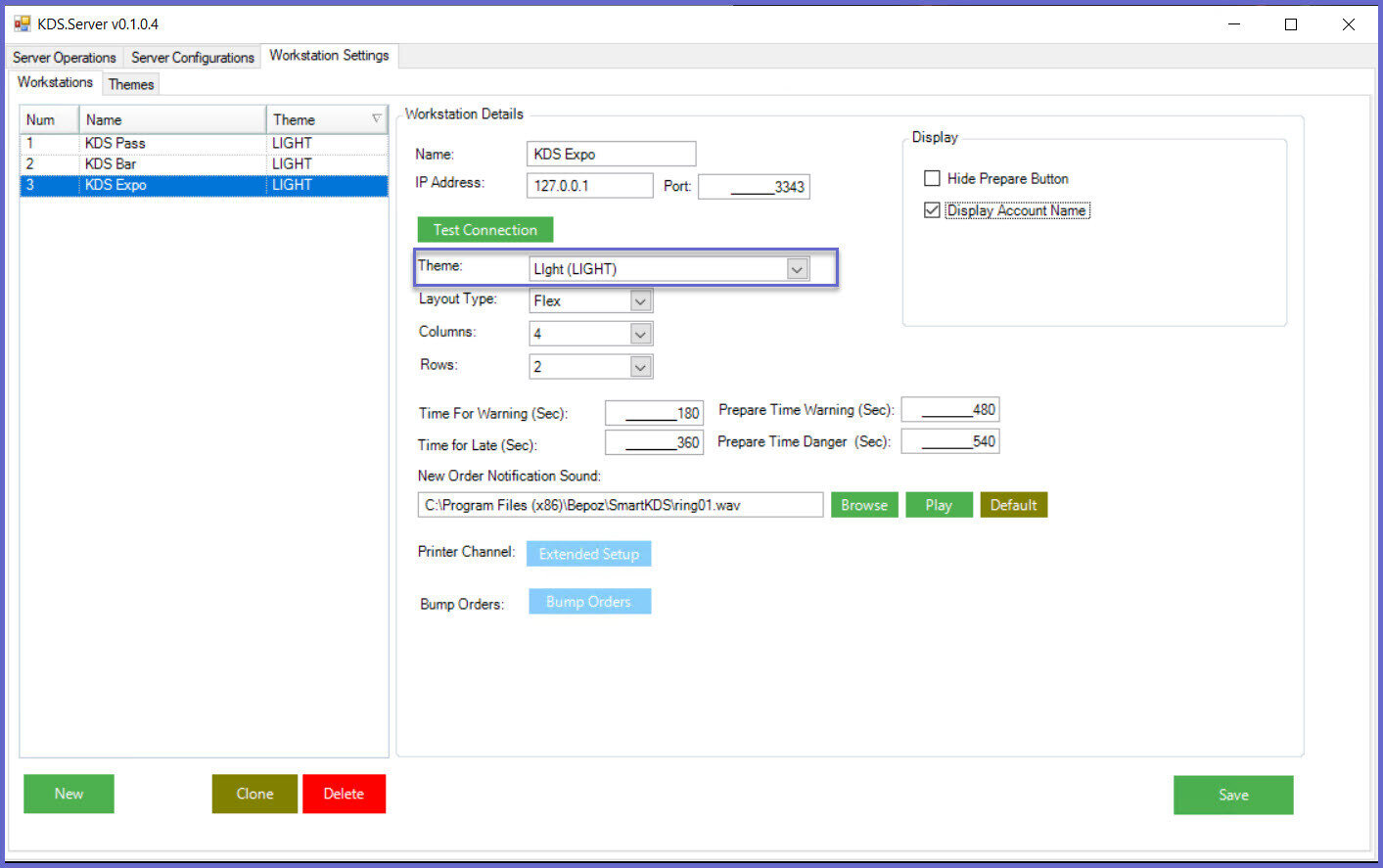

Selecting a theme

• Once the user has imported or created their own theme
• The theme will be available to select and apply in the Workstation settings

---
