      30 | Import Transactions Scheduled Job

      This articles explains how to set up the Scheduled Job called "Import Transactions" within BackOffice.

      This articles explains how to set up the Scheduled Job called "Import Transactions" within BackOffice. Prerequisites
      • Minimum Bepoz version of 4.6 and onwards
      • To setup the scheduled job, the applicable Operator Privileges will need to be enabled
        • Operator Maintenance 'General' Tab
          • System Setup: "Maintain Scheduled Jobs" Flag
      Import Transactions Scheduled Job

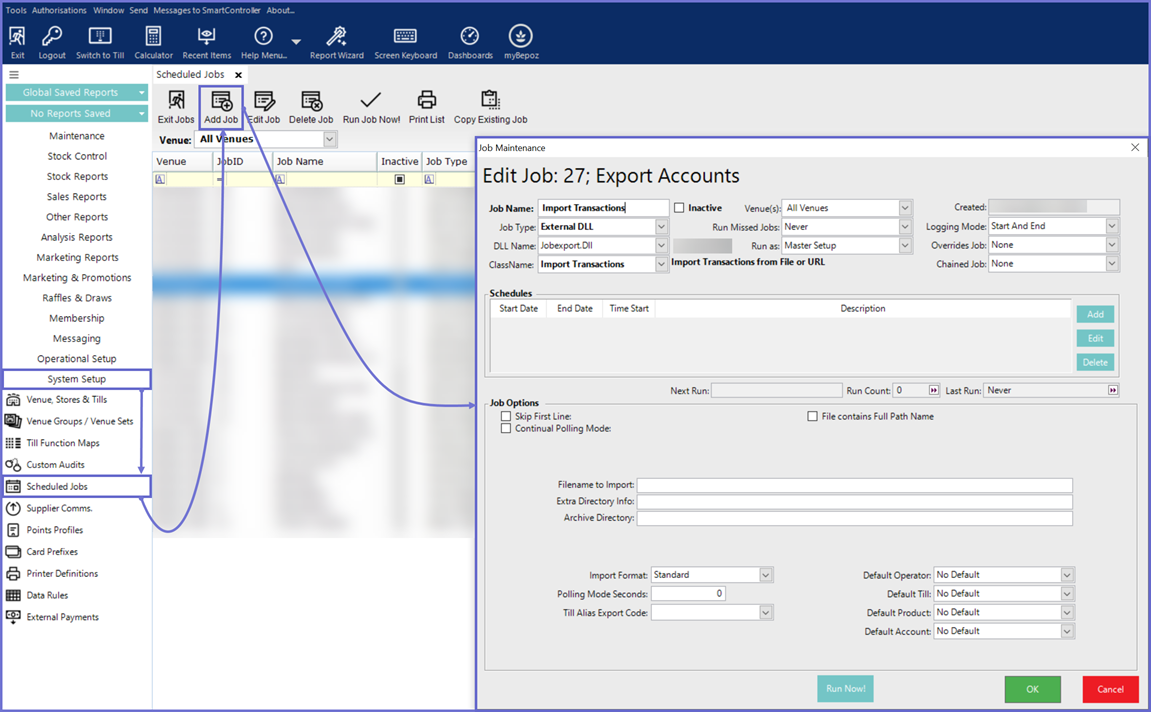

      • Login to Backoffice and go to System Setup
      • Go to Scheduled Jobs and click on Add Job
      • Details are as follows:
        • Job Name: As per desire
        • Job Type: External DLL
        • DLL Name: Jobexport.Dll
        • ClassName: Import Transactions
        • Schedules: Set as per desire
        • Job Options:
          • Skip First Line: Sometimes the first line may be a header line, this will skip the first line
          • File contains Full Path Name: If the Filename of the URL does not fit into 100 characters. Then create a text file with the full path or URL as the first line and Set this flag and put the text files name in the Filename field
          • Continual Polling Mode: This will cause the Job to run continuously and export the Transactions as they occur. The export file is opened, appended to, and closed each time an export occurs
          • Filename to Import: The name of the file to be imported
          • Extra Directory Info: If the full File Path name does not fit into the FileName field, the directory can be placed here
          • Archive Directory: The Imported file will be Archived to this Dir.
          • Import Format: Select the format of the imported file
          • Polling Mode Seconds: This will cause the Job to run continuously and look for an Import file according to the Polling Mode Seconds Field

                                      *This flag must be on in some versions for the transaction import to work

          • Till Alias Export Code: If the Import file has Till Alias field, this is the Export Code Field to match that to
          • Default Operator: If the Operator is not matched, this Operator will be used
          • Default Till: If the Till is not matched, this Till will be used
          • Default Product: If the Product is not matched, this Product will be used
          • Default Account: If the Account is not matched, this Account will be used



      Import Specification

      FieldName Format Description
      DateTimeTrans DateTime
      Training Boolean  “Y” or blank. Useful for testing Imports…
      OrderID Int32 Used to Group Items in same transaction
      OrderType Int32 Usually Blank.
      TillID Int32 Either TillID or TillAlias MUST be valid
      TillAlias String Either TillID or TillAlias MUST be valid
      DrawerNum Byte 1 or 2 only (defaults to 1)
      ShiftID Int32 1 – 10 (defaults to 1)
      OperatorID Int32 Either Operator ID or Number MUST be valid
      OperatorNumber String Either Operator ID or Number MUST be valid
      OrderComment String
      ProductID Int32 1-10 only, must be valid size for Product.
      ProdNumber String Size Name as set by Product
      ProdExportCode1 String
      Size Byte Another way of matching a product and size.
      SizeName String
      Barcode String
      ProductOption Int32
      QtySold Double Can have decimal places
      Gross Double In 0.00 format
      Nett Double In 0.00 format
      PaymentName String
      PaymentAmount Double In 0.00 format
      Rounding Double In 0.00 format
      AccountID Int32 Either Account ID or Number MUST be valid
      AccountNumber String Either Account ID or Number MUST be valid
      PaymentRefID Int32
      TableGroup Int32
      TableNumber String
      TableName String
      TableGuests Int32
      TaxRatePlusOne Int32 If using Addon Tax, 0 is invalid. 1-5 will set tax rate as 0-4, If inclusive, 0=Use rate as set in Bepoz, 1-5 will set tax rate as 0-4.
      TaxAmount Double The required non rounded Addon tax for this line, Inclusive Tax does not need to be included (but can be)
      ServiceCharge Double The non rounded Service Charge for this line
      DiscNum_1 Byte
      TableID Int32
      ProductSortType Byte
      HandlingFee Double
      PointsAmount Integer
      TLINEREFID   4.7.x
      RENEWALTYPE   4.7.x
      DISCNUM_1_AMOUNT   4.7.x
      DISCNUM_2   4.7.x
      DISCNUM_2_AMOUNT   4.7.x
      DISCNUM_3   4.7.x
      DISCNUM_3_AMOUNT   4.7.x
      DISCPROMOID_1   4.7.x
      DISCPROMOID_2   4.7.x
      DISCPROMOID_3   4.7.x
      PRODTYPE   4.7.x
      ORDPERC_NUM   4.7.x
      ORDPERC_AMOUNT   4.7.x


      ===========

      Extra Notes:

      Import Defaults (Till, Operator, Product)

      If you want to ensure that all transactions are imported always, it is Critical that you setup

      defaults for the Till, Operator and Product in the Bepoz prior to any imports.

      If the Till, Operator or Product is not matched to the Bepoz database, it will then try to use a

      default if it setup. If no default is found, the entire Order will NOT be Imported. An error File will

      be created. To setup the Import Defaults in Bepoz, Set the Till Alias of the default till to

      “IMPORT”, set the Operator Number if the default operator to “IMPORT” and set the default

      Product to have a ProdNumber of “IMPORT”. It is Important to set these up if you want to ensure

      a mismatch does not prevent transaction importing.



      Account Default

      Account default works differently, if AccountID or AccountNum is present, but is not matched, it

      will look for a default account with “IMPORT” in either the Account Number or Card Number

      fields. If it does not find a default account, and if there is NO AccCharge payment type then it will

      still import the transaction as a normal non-account transaction. If there is an AccCharge

      payment, the Order will NOT be imported. If you set the Default Account to be Inactive, then it

      will always cancel the order if the account is not matched.



      Comment Lines

      Lines starting with * will be ignored.



      Date & Time

      Date and Time will have the current date and time if not present or invalid.



      OrderID

      It is used to group multiple lines into the same transaction in Bepoz. Important: If you are

      importing multiple product lines for the same transaction, you must ensure that the basic

      transaction data, Till, Drawer, Shift, Operator and Account is set in the first line for that

      transaction. This is the data that will be used for the whole transaction. This is stored in

      Transaction->Miscdata.



      OrderType:

      Blank = Standard Transaction. This can have an account or not. Negative amounts for Returns.

      Account payments can be done by having a payment with no products sold.

      32770 = Cash Pay Out. A payment amount is requied

      32771 = Cash Pay In. A payment amount is requied

      32772 = Drawer Clearance. A payment amount is required



      ProductOption:

      Blank or 0 = Standard product with no condiments.

      1 = Standard Product with condiments following

      2 = Condiment Product (requires a prior Standard product type 1)



      PaymentName:

      All Charges (Nett) should be matched with a Payment. If the total charges plus total rounding in a

      transaction do not match total payments in a non-account transaction,an automatic payment will

      be added. This payment will be a Credit card named “Import Correction” or if this credit card

      name is not found, then it will use Cash. If the transaction is for an Account and the payments do

      not balance, the different will be subtracted from the Account Balance.

      Valid Normal Payment Names:

      "CASH"

      "EFTPOS"

      "CHEQUE"

      "RESLINKXFER"

      "RESLINKXFER2"

      Plus all Credit Card Names as setup in the Bepoz customer Database.

      Charging to an Account is done by using the following Payment name

      "ACCCHARGE"

      The following Payments should have a negative amount as they add to the total payment

      required.

      "TIP"

      "HANDLING_FEE"

      "CHANGE"

      The following Payments should not have a product.

      "CASHPAYOUT"

      "CASHPAYIN"

      "SKIMDRAWER"

      Transaction Examples

      Below shows a number of sample transactions for importing. They all use various ways of matching Tills, Operators etc.

      Date,Time,Training,OrderID,OrderType,TillID,TillAlias,DrawerNum,ShiftNum,OperatorID,OperatorNum,OrderComment,ProductID,ProductNum,D escription,SizeNumber,SizeName,Barcode,ProdOption,QtySold,Gross,Nett,PaymentName,PaymentAmount,Rounding,AccountID,AccountNum

      *Various Standard Sales using different combinations

      30/06/2008,14:32:20,,1000,,,123,,,,9999,,,1355,,1,,,,1,23.99,22.99,Amex,22.99,,,1000 30/06/2008,14:32:25,,1001,,,123,,,,9999,,,1285,,2,,,,2,47.98,45.98,Cash,46.00,0.02,, 30/06/2008,14:32:25,,1001,,,123,,,,9999,,,1285,,2,,,,1,23.99,22.99,Cash,23.00,0.01,, 30/06/2008,14:33:40,,1002,,2,,2,2,9,,,481,,Penfolds 128,1,,,,1,23.99,22.99,EFTPOS,22.99,,, 30/06/2008,19:36:40,,1002,,2,,2,2,9,,,,,,,,9310297649389,,1,23.99,22.99,EFTPOS,22.99,,, 30/06/2008,20:36:40,,1002,,2,,2,2,9,,,,,,,,9310297649389,,1,23.99,22.99,CASH,22.99,,,

      *Account Charge

      30/06/2008,20:38:40,,1003,,1,,,2,9,,,177,,Penfolds 389,1,,,,1,23.99,22.99,ACCCharge,22.99,,,1110

      *Sample Product with Condiments

      30/06/2008,21:32:20,,1004,,,124,,,,9999,,,1355,,1,,,1,1,23.99,22.99,Amex,27.49,,,1000 30/06/2008,21:32:20,,1004,,,124,,,,9999,,,1285,,2,,,2,1,2.5,2.5,,,,, 30/06/2008,21:32:20,,1004,,,124,,,,9999,,,1286,,1,,,2,1,2,2,,,,,

      *Sample Product with zero priced Condiments

      30/06/2008,21:32:20,,1005,,,124,,,,9999,,,1355,,1,,,1,1,23.99,22.99,Amex,22.99,,,1000 30/06/2008,21:32:20,,1005,,,124,,,,9999,,,1285,,2,,,2,1,0,0,, 30/06/2008,21:32:20,,1005,,,124,,,,9999,,,1286,,1,,,2,1,0,0,, *

      *Return Transaction

      30/06/2008,21:34:20,,1006,,,123,,,,9999,,,1355,,1,,,,1,-23.99,-22.99,Cash,-22.99 * *Cash Payout 30/06/2008,22:32:20,,1007,32770,,123,,2,,9999,Money for Delivery Person,,,,,,,,,,,,25.00

      *Cash Payin

      30/06/2008,22:32:25,,1008,32771,,123,,2,,9999,Change from Safe,,,,,,,,,,,,46.00
