4 | Linkly TCPIP (v4.5)

This article covers TCPIP settings for PC-EFTPOS Configuration. PC-EFTPOS TCPIP is the 64bit support for PC-EFTPOS. PC-EFTPOS is a Windows-based system that will provide all the user screens, and communicate with the EFTPOS terminals. This system allows EFTPOS units to share one phone line or leased line. PC-EFTPOS v 4.8.1.0 is the recommended version to use with Bepoz. PC EFTPOS Download This Interface is only supported by Windows Tills.

This article covers TCPIP settings for PC-EFTPOS Configuration.

PC-EFTPOS TCPIP is the 64bit support for PC-EFTPOS.

PC-EFTPOS is a Windows-based system that will provide all the user screens, and communicate with the EFTPOS terminals. This system allows EFTPOS units to share one phone line or leased line. PC-EFTPOS v 4.8.1.0 is the recommended version to use with Bepoz.

PC EFTPOS Download

This Interface is only supported by Windows Tills.

Prerequisites

Operator must firstly install the PC-EFTPOS software on each Windows POS that needs to communicate with an EFTPOS terminal.
See the Standard PC-EFTPOS documentation for configuring the PC-EFTPOS software and EFTPOS terminals.
PC EFTPOS Documents

BackOffice Device Setup

When the POS Terminal is running a 64Bit OS then this interface MUST be used; NOT the Activex option

Device Setups

Bepoz communicates to PC EFTPOS software not the device. Because the EFTPOS device is setup through PC EFTPOS and then Bepoz is setup to talk to PC EFTPOS - there are no communications setups required in the device setup

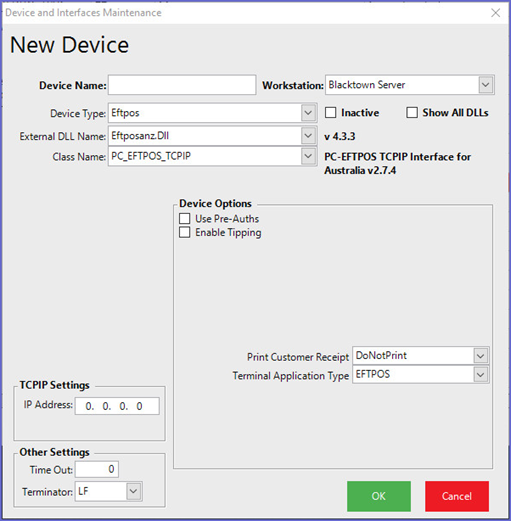

Bepoz PC EFTPOS Setup

External DLL Name: Eftposanz.Dll

Class Name: PC_EFTPOS_TCPIP

Device Options

Use Pre-Auths	ON - will allow Pre Auths on table sales OFF - Pre-Auths on tables are off
Enable Tipping	ON - will allow tipping through the EFTPOS device OFF - will not allow tipping through EFTPOS device
Print Customer Receipt	Do not Print - will not print the customer receipt at all Print Automatically - Will print the customer receipt automatically Ask to Print - The Till will prompt the operator a message if the customer
Terminal Application Type	This option is to override the PC-EFTPOS print settings EFTPOS - this option will use the PC-EFTPOS print settings Agency - this option will override the PC-EFTPOS settings and use the Bepoz Application settings Gift Card - Not Supported Fuel - Not Supported Medicare - Not Supported Amex - Not Supported ChequeAuth - Not Supported Loyalty -Not Supported PrePaid - Not Supported

Bepoz only supports two options for the terminal application type, EFTPOS and Agency
The list of options that populates for the 'Terminal type application' selection actual comes from PC-EFTPOS

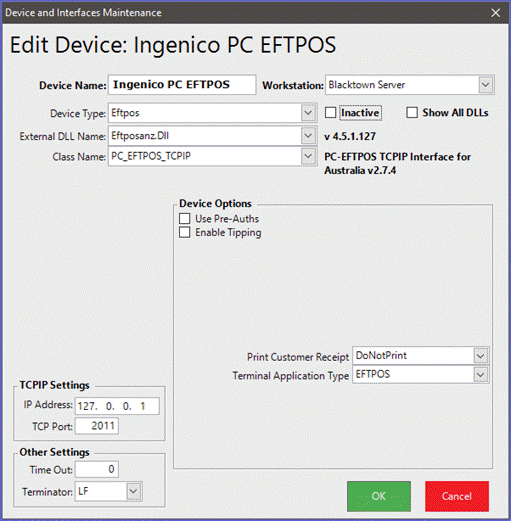

TCPIP Settings

IP Address: IP Address of the PC-EFTPOS Client; if the client is installed on the local machine then you could set the loopback IP address (eg 127.0.0.1)
Port Number: Port Number of the PC-EFTPOS Client; by default the port number should be 2011

Miscellaneous EFTPOS Functions

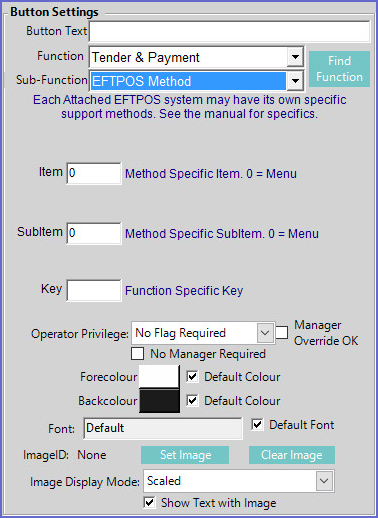

In function maps there is an “EFTPOS Method” function. This allows for EFTPOS interface specific functions to be performed from within the Tills
For PC-EFTPOS only the Button Item field is used. Below are the functions that can be accessed from a Till Override Button
You will need to setup a new panel on the function map if you are going to set multiple EFTPOS functions

User Selection = 0	Displays all functions to select from
ControlPanel = 1	Displays the PC EFTPOS ControlPanel
SetupPinPad = 2	Displays the PC EFTPOS SetupPinPad
ReceiptPrint = 3	Displays the PC EFTPOS ReceiptPrint
DisplaySettlement = 4	Displays the PC EFTPOS DisplaySettlement
DisplayStatus = 5	Displays the PC EFTPOS DisplayStatus
JournalViewer = 6	Displays the PC EFTPOS JournalViewer
Logon = 7	Displays the PC EFTPOS Logon
SelfTest = 8	Displays the PC EFTPOS SelfTest
