      2 | Liven BackOffice Configurations

      This article covers the process of configuring the Liven Interface in BackOffice. Liven API is an external payment system that can be used to process transactions in Sydney- and Melbourne-based restaurants. Liven is a payment system where the customers can choose to pay with their Liven Mobile Application instead of Cash or Bank Card. This application also provides universal cash rewards to the customers on the basis of how much they are spending on each transaction.

      This article covers the process of configuring the Liven Interface in BackOffice. Liven API is an external payment system that can be used to process transactions in Sydney- and Melbourne-based restaurants.

      Liven is a payment system where the customers can choose to pay with their Liven Mobile Application instead of Cash or Bank Card. This application also provides universal cash rewards to the customers on the basis of how much they are spending on each transaction.

      For the businesses to use this interface, Operators need to do a simple task of configuring the Device in Bepoz Backoffice.

      Prerequisites

      N/A

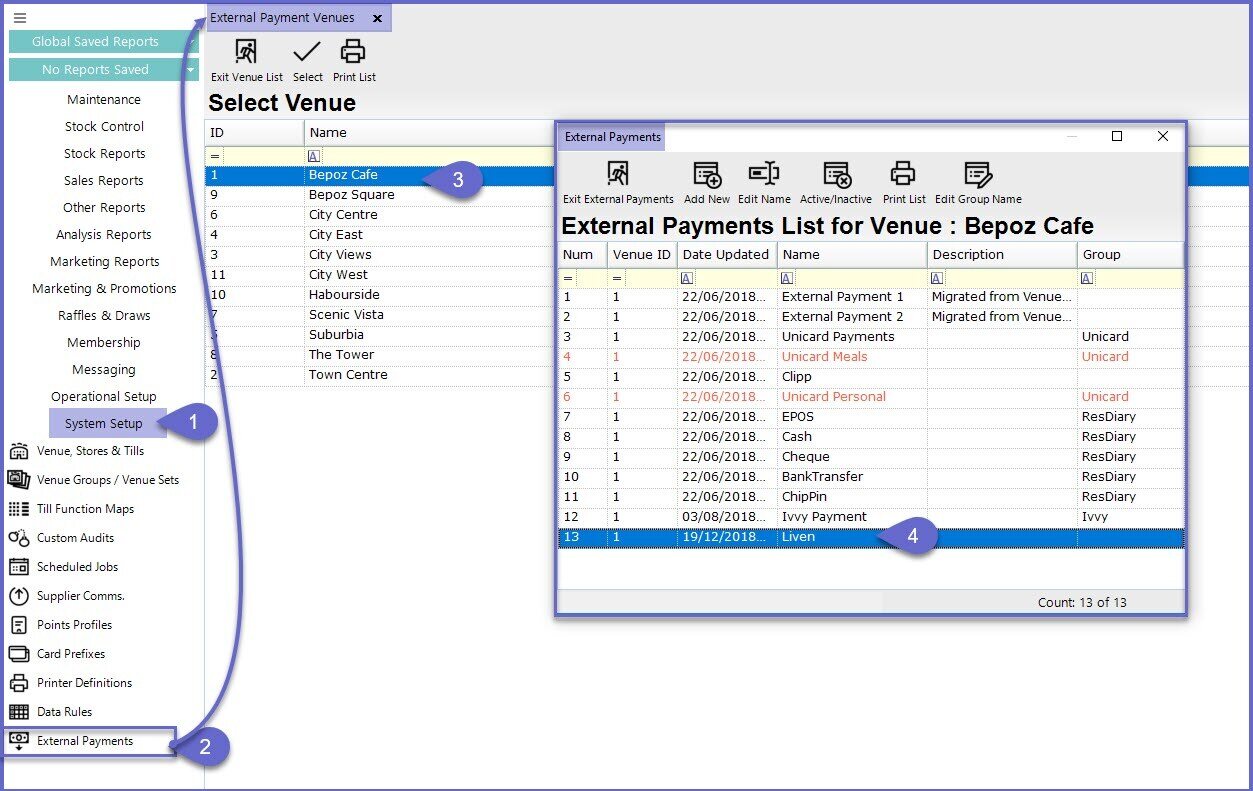

      Setting up an External Payment
      • To integrate Liven in Bepoz, a new category of External Payment has to be set up in BackOffice
        1. To do so; go to Backoffice > System Setup
        2. Select the External Payments option which will open the External Payment Venues window
        3. Select a venue for which External Payment has to be created which will open a list of all the available External Payments for the venue
        4. Create a new Payment option with the desired name

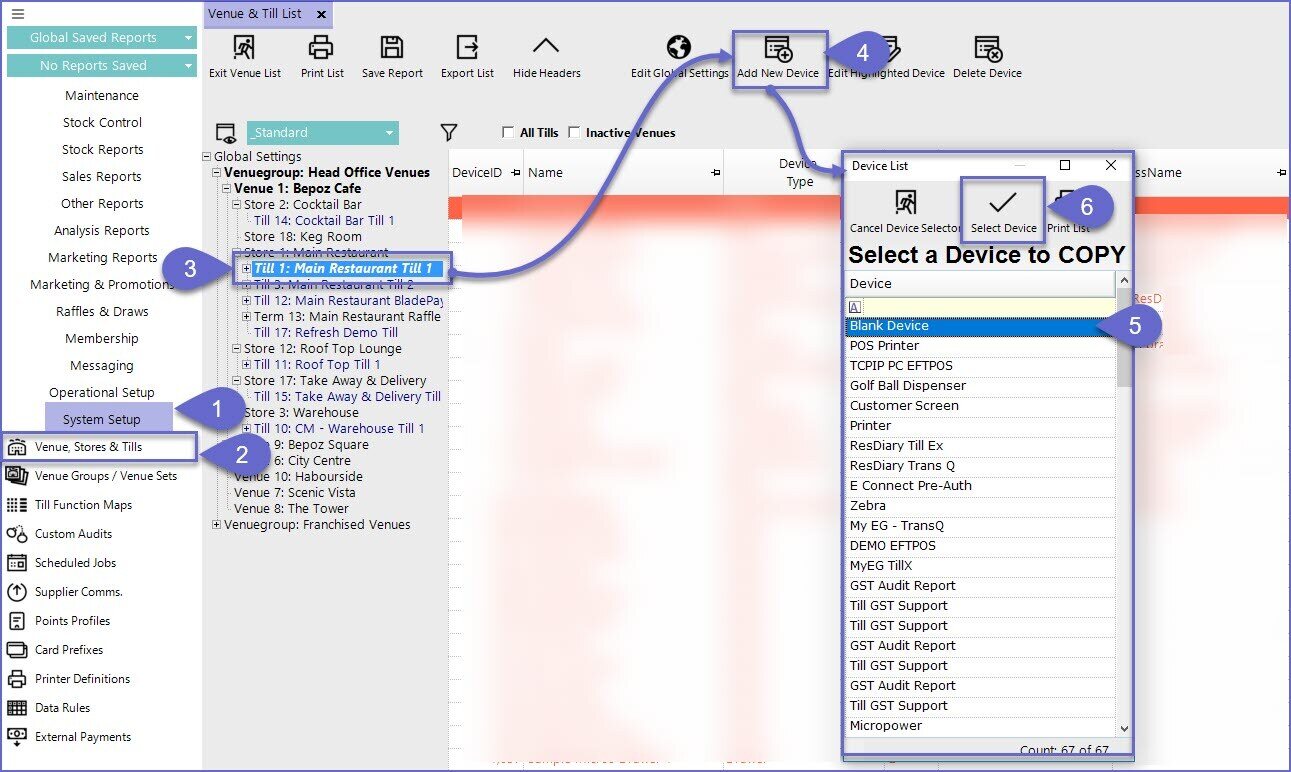

      Liven Configuration External Payment Device
      1. Go to BackOffice > System Setup
      2. Click on the Venue, Stores & Tills option which will open a new window for Venue & Till List
      3. Select the Workstation or Till for which Liven Interface is being installed
      4. From the Menu Bar, Click on the 'Add New Device' button which will open the Device List window
      5. Select the Blank Device option and Press 'Select Device'

      • This will open a new Device and Interfaces Maintenance window

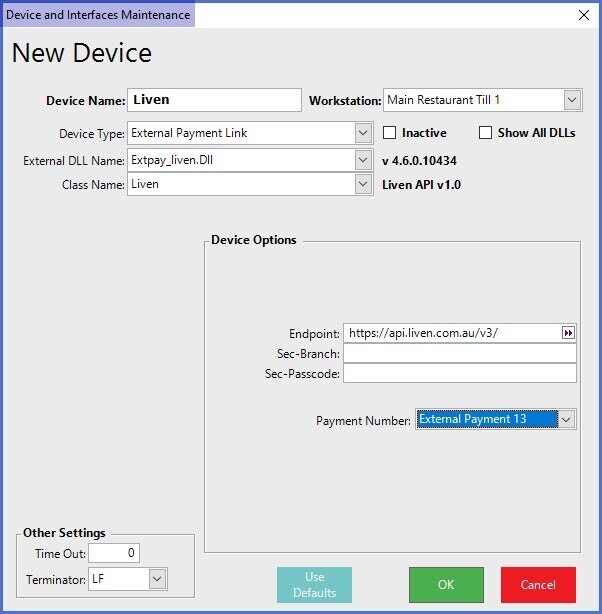

      General Settings



      Flags/ Fields

      Description
      Device Name
      • Type a Name for the Device
      Workstation
      • Select the workstation in which the device is being installed
      Device Type
      • External Payment Link
      External DLL Name
      • Extpay_Liven.Dll
      Class Name
      • Liven
      Inactive
      • Will make the device inactive
      Show All DLLs
      • Will list all the available DLLs

      Device Options



      Fields

      Description
      Endpoint
      • The will be the URL to connect to the Liven API
      • The Use Defaults button will fill the production environment URL
      Sec-Branch
      • This is provided by Liven
      • This is the unique Venue identifier in the Liven system
      Sec-Password
      • This is provided by Liven
      Payment Number
      • This is the number of the External Payment that was created for Liven
      • This needs to be set up before setting up the device
      • E.g., the Payment Number in this example is 13

      Other Settings



      Field

      Description
      Time Out
      • This is the Time Out in Second for the Device to Respond
      Terminator
      • This is the terminator used at the end of each data packet
