      2 | Maxetag CALink Setup

      This article covers the Maxetag Interface Integration with CALink in Bepoz. About Maxetag runs on a MySQL Database.

      This article covers the Maxetag Interface Integration with CALink in Bepoz.

      About

      • Maxetag runs on a MySQL Database. To share bonus points, we must call Stored Procedures are in that MySQL database
      • This means that the Windows computer running BEpoz (at least CALink) must have both network access to the Maxetag Computer and also the MySQL client access drivers loaded and configured
      • The client version used for development was 3.51.12
      • This can be downloaded from the Internet and installed

      Prerequisites

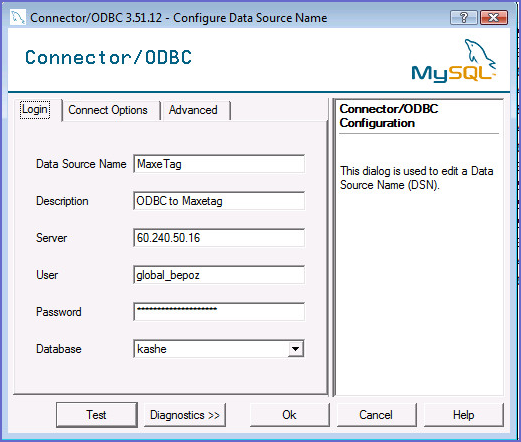

      • You will need to create an ODBC Data source on the CALink computer
      • This is done through Data Sources in Administrative Tools in the Control panel (This may vary depending on your Windows Edition)
      • The settings as supplied by Maxetag are:

      Database Name: kashe
      Path: (supplied at installation)
      User Name: global_BEpoz
      Password: global_BEpoz_systems


      • Once the above steps are followed, you will have a Windows Client computer that has an ODBC configured DSN connection that connects successfully to the Maxetag MySQL host

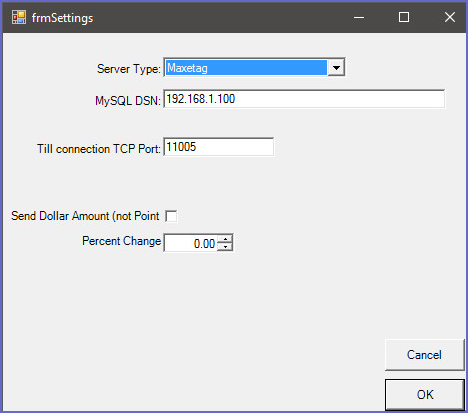

      CALink Settings

      Server Type: MaxeTag
      MySQL DSN:  Maxetag – This is what you called the DSN above
      Till Connection TCP Port: 11005 – This is usually always the setting
      Send Dollar Amount: Off
      Percent Change: User choice but ypically 100.00


      • The Bepoz redeem points percent must be 10,000% and the redeem point value $0.01.(the Earn percent would be 400% - 1,000% (4-10 points per $1 )
      • On Startup, CALink must connect to the MySQL Database
        • It will use the System DSN as setup above
      • When CALink is starting, it will attempt to connect to MySQL
        • This timeout is 30 seconds
        • If CALink cannot connect, the screen will not appear for that time
        • When it either connects or times out, the connection status on the CALink screen will show whether it could connect or not
        • Any error message on connecting will be logged in the CALink.txt log file in the BEpoz Shared Data directory
        • If there are any problems, the first place to check is the MySQL Client access
