      6 | Metcash HOST Supplier Comms Setup

      This article covers a step-by-step guide to configuring the Metcash/ALM Supplier Comm link in Backoffice. The Supplier Communication component allows Operators to send and receive orders through an electronic medium. Operators have the ability to do the following: Retrieve Pricebook documents and process them in SupplierItem and SupplerItemPromo tables in the sytem; Retrieve promotion documents and process them in as Promotions in the system; Retrieve invoice documents and process as PO/Electronic Invoices in the system; Send Purchase Orders to Metcash.

      This article covers a step-by-step guide to configuring the Metcash/ALM Supplier Comm link in Backoffice.

      The Supplier Communication component allows Operators to send and receive orders through an electronic medium.

      Operators have the ability to do the following: Retrieve Pricebook documents and process them in SupplierItem and SupplerItemPromo tables in the sytem; Retrieve promotion documents and process them in as Promotions in the system; Retrieve invoice documents and process as PO/Electronic Invoices in the system; Send Purchase Orders to Metcash.

      The process of adding required Supplier and other details are described in this article.



      Prerequisites

      • To access Suppler Comms Settings; the applicable Operator privileges will need to be enabled:
        • Operator Maintenance 'General' Tab
          • System Setup: 'Maintain Supplier Comms' flag

      Supplier Comms Setup

      Step-by-Step Guide

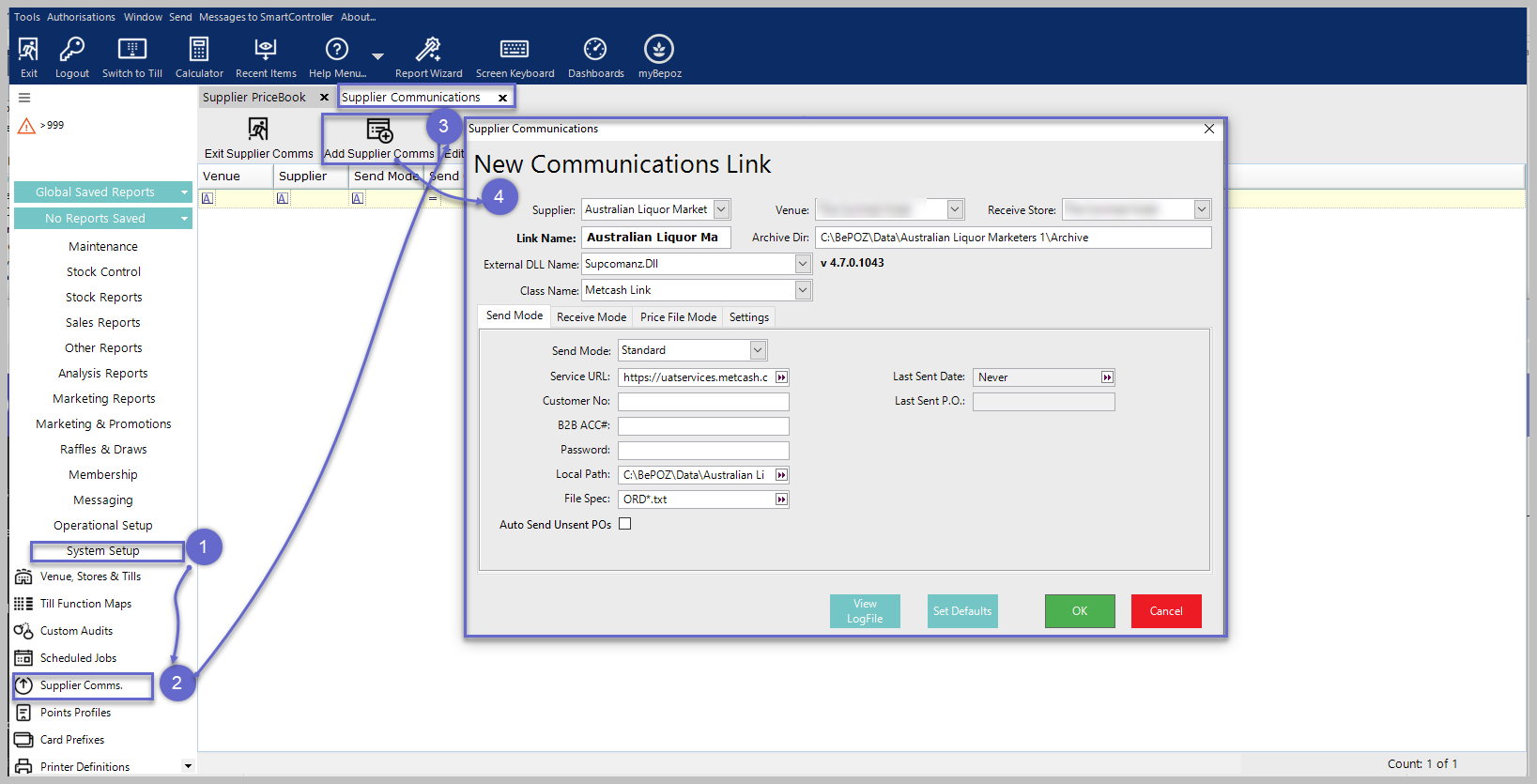

      1. In BackOffice, Navigate to System Setup in the side menu panel.
      2. Select the Supplier Comms option which will open a new Supplier Communications Tab
      3. From the header, click on the 'Add Supplier Comms' button which will open a New Communication Link
      4. Fill in the required details of the supplier



      Field

      Description

      Supplier
      • This is the supplier Name that is linked to the Supplier Communication Link

      Venue
      • This is the Venue that the Communication is for

      Receive Store
      • This is the receive Store that the Communication is for

      Link Name
      • This is the Name of the Supplier Communication Link

      External DLL Name
      • This is the name of the External DLL that the Supplier Comms uses

      Class Name
      • Set the Class Name as Metcash Link
        • Metcash Link P.O. is a concept of Bepoz creating a Purchase Order and sending it through the supplier communications - or Supplier Comms

      Send Mode
      • Select a mode on how you would like the supplier comm to send a PO

      Receive Mode
      • Select a mode on how you would like the supplier comm to receive a PO

      Price File
      • Price File mode is for settings to retrieve Metcash Host and Promo files.

      Settings
      • Settings mode will store new fields required for the interface



      • N.B  It is mandatory that you have the details from the supplier: Service URL, Customer No, B2B Account and Password

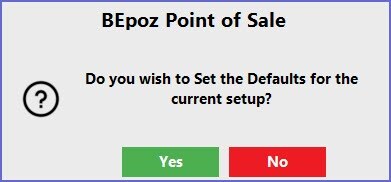

      • From the drop-down menu select a Supplier; a prompt will appear:



      • If Yes is selected, the system will auto-fill the Link Name; if No is selected, a Link Name will need to be entered
      • Select the external DDL called 'Supcomanz'
      • Select the class name 'Metcash Link'

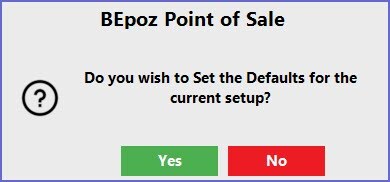

      • This will display another prompt as given below:



      • Select Yes to set the default setting for Metcash Link
      • Below is a sample setup:

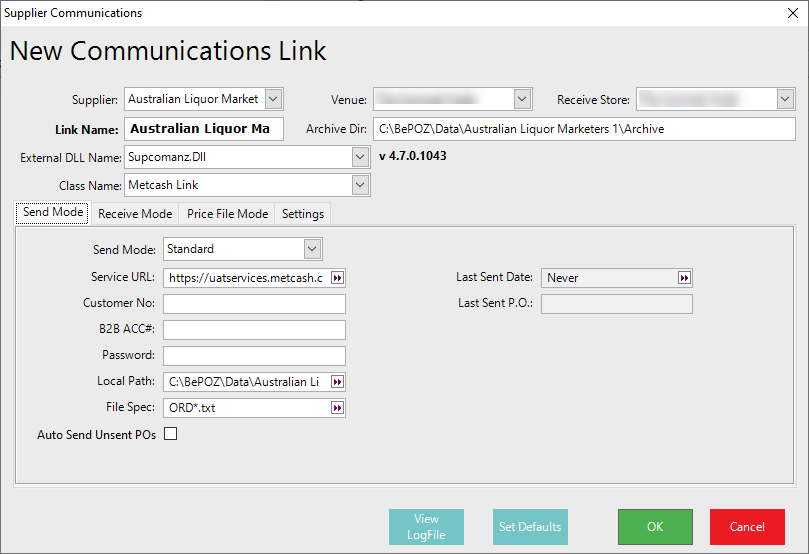

      Send Order Fields



      Fields

      Description

      Local Path
      • This is the Local path where the export will save to

      File Spec
      • This is the file extension name the exported file
      Last Sent Date
      • The date of the P.O was last sent
      Last Sent P.O.
      • Name of the P.O that was last sent
      Auto Send Unsent P.Os
      • If ticked it will automatically send all unsent PO's

      ==============TABLE====================

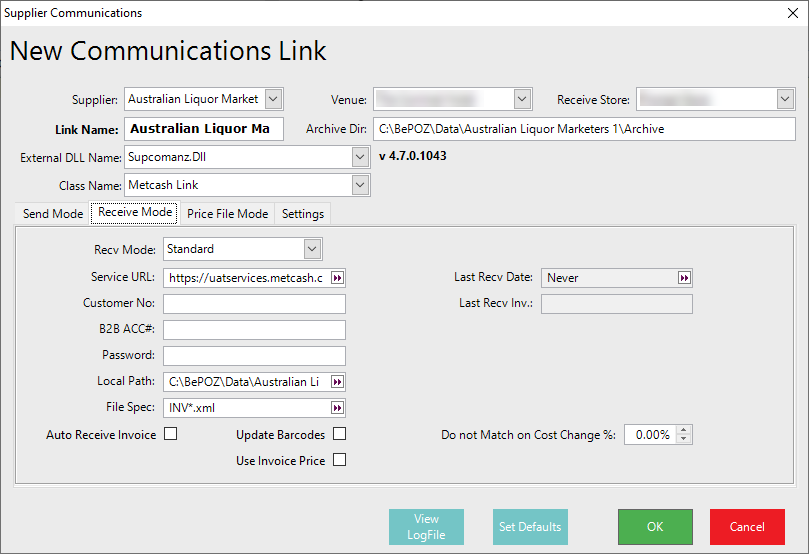

      Receive Invoice Fields



      Fields

      Description
      Local Path
      • This is the Local path where the import will save to
      File Spec
      • This is the file extension name the imported file
      Update Bar Codes
      • If barcodes are in the import file Flag this option to update the barcodes
      Last Recv Dates
      • The date of the P.O was last received
      Last Recv P.O.
      • The name of the last import received

      Archive Dir
      • The location of the archived files
      Auto Receive Invoice
      • If ticked, it will automatically receive invoice from the archive files
      Use Invoice Price
      • If ticked, when PriceBook product price differs from Invoice price, it forces to take Invoice Price, otherwise take Pricebook price
      Do not match on Cost Change %
      • This is the percentage that a products price is multiplied by to get the Points required to purchase the product.

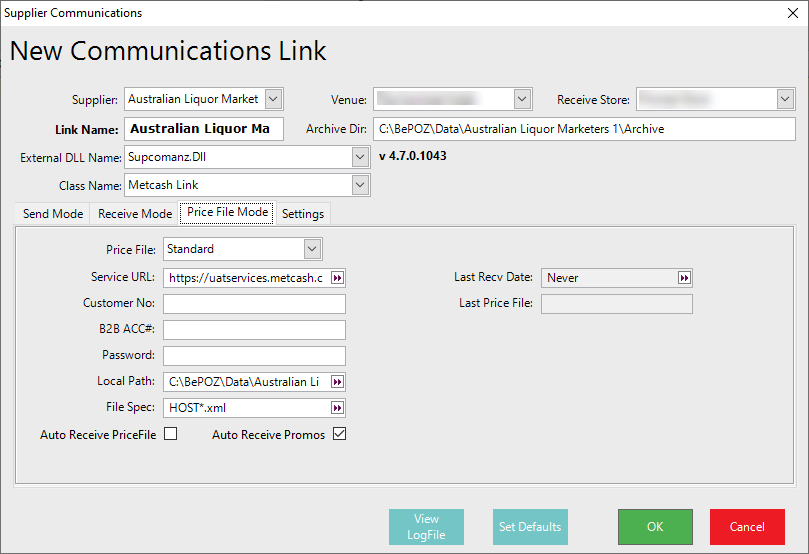

      Price File Field



      Fields Descriptions
      Local Path
      • This is the Local path where the import will save to
      File Spec
      • This is the file extension name the imported file
      Last Recv Date
      • The date of the Price File was last received
      Last Price File
      • The name of the last imported Price File
      Auto Receive Price File
      • If ticked, it will automatically receive the Price File from the archive file
      Auto Receive Promos
      • If ticked, the promotions will be imported automatically with the price file if contained within the same file

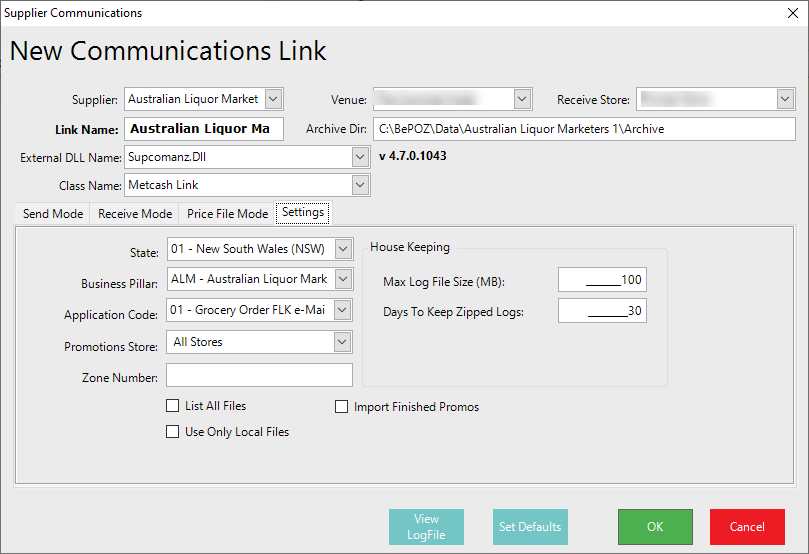

      Settings



      Field Description
      State
      • Allows the operator to select the State from the drop-down list
      Business Pillar
      • Allows the operator to select the business pillar from the drop-down list
      Application Code
      • Allows the operator to select the Application Code from the drop-down list
      Promotion Store
      • Allows the operator to select the Store for the Venue chosen Venue from the drop-down list or set as default as All Stores
      Zone Number
      • This is a filter used when importing promotions from Metcash Host. Only match products for promotions that have matching Zone Numbers. Leaving it blank will match all Zone Numbers.
      List All Files
      • Displays all files in a list
      Used Only Local Files
      • Displays only used local files only.
      Import Finished Promos
      • Allows the operator to import finished promotions



      Scheduled Job Configuration

      • Scheduled Job will have the ability to automatically update the PriceBook with the latest copy of the Metcash host file on a schedule.
      • The Products/Promotions import workflow requires additional steps because files are retrieved via a Web Service Interface from Metcash.
      • Complete the following steps to set up the Scheduled Job for retrieving Product Files:

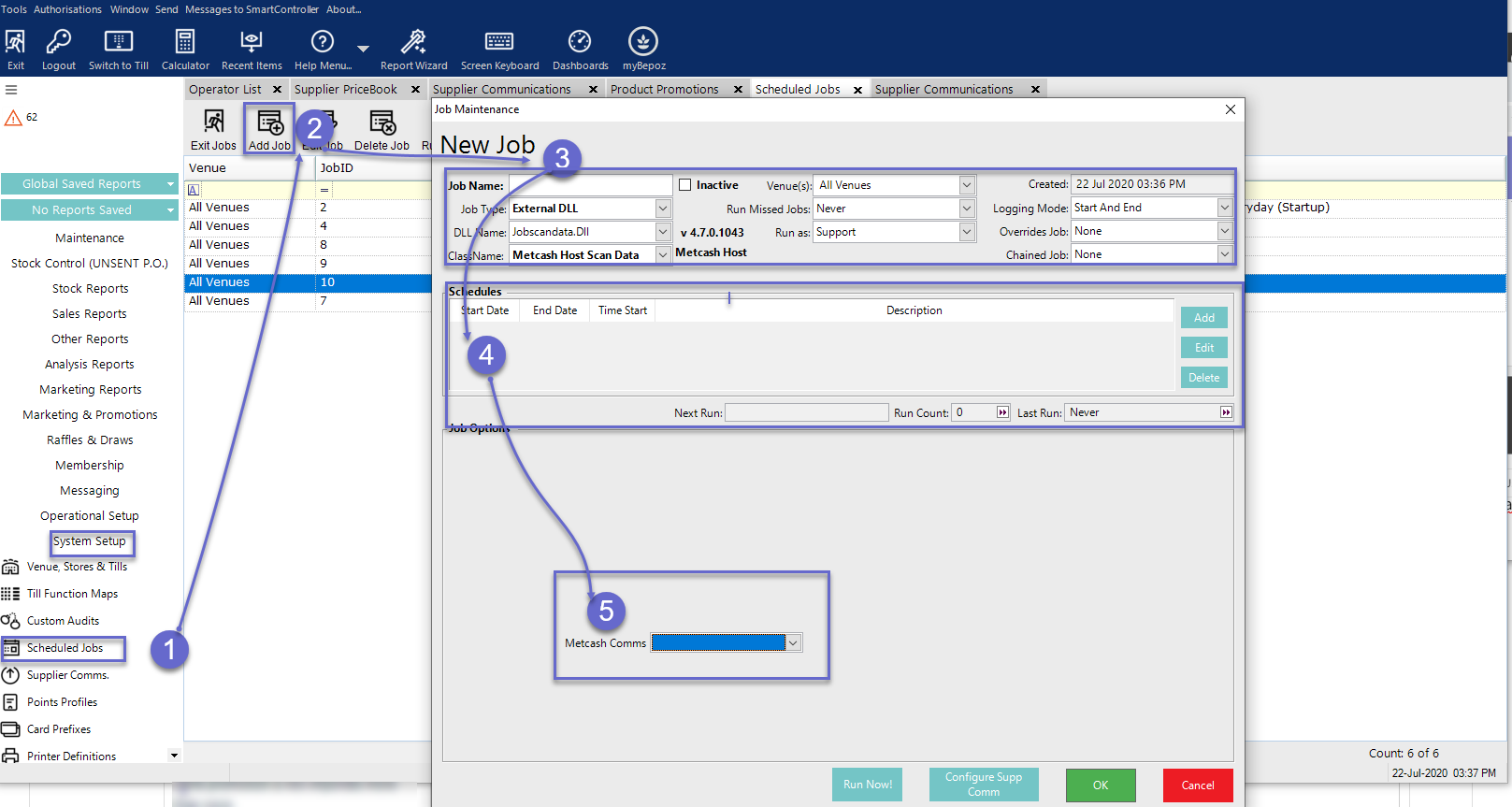

        1. Navigate to System Setup and select Scheduled Jobs
        2. Select the Add Job button and a new Job Maintenance window will open
        3. There are a number of credentials that need to input and they include:
          1. Job Name: Give the Job a relevant name
          2. Job Type: External DLL
          3. DLL Name: Jobscandata.Dll
          4. ClassName: Metcash Host Scan Data
          5. Additional configuration options may be selected if desired; e.g., Venue(s), Run Missed Jobs, Chained Job, etc.
        4. Set up a Schedule or Schedules for the when the Job will run automatically
        5. Configure the Job Options as follows:
          • Select the Supplier Comms in the Metcash Comm drop-down list; this will display a list that has been created from the Supplier Comms
        6. Click OK to save the Scheduled Job

      • After re-opening the Job and selecting 'Run Now!', SmartController will show that the Job has Started and then will show when the Job has Finished OK; alternatively, this will occur per the Job's Schedule
