3 | MyEG User Guide

This article contains the User Guide for MyEG after the interface has been successfully configured with Devices set up in BackOffice.

After successfully configuring the Transaction Queue and Till Extension devices in BackOffice, the MyEG interface will be ready. When a transaction is processed, the information is sent to the MyEG Server and is saved locally in a *.txt file. MyEG returns a Reference Number which is also saved locally (in a different *.txt file) and the Reference Number is also printed on the customer receipt.

Prerequisites

To access MyEG Features, the following Operator Privileges will need to be enabled:

Operator Maintenance 'Till Privileges' Tab

General: "Operate Tills" Flag

Data Sent to MyEG

After processing a transaction, data is saved and sent to MyEG for tax purposes
This data can be found in the Bepoz Data Directory in a text file named MyEG_DataSend.txt

Transactions will be listed in this file by Date & Time, Transaction Number, and Table ID
The data will read as follows for each Transaction

Retail ID, Receipt Number, Date and Time (format is DDMMYYYHHMMSS), Product Name | Qty | Unit Cost Including Tax | Tax Mode Including Tax | Discount Item | Tax Code | Tax Rate | Tax Total | Cost Total Excluding Tax | Cost Total Including Tax | Industry Code <> Summary* | Tax Code |Tax Rate | Tax Total | Cost Total Excluding Tax <>, Total Sales All After Rounding, Total Tax All, Total Sales Taxable All Excluding Tax, Total Discount, Total Other Charges, Total Sales All Non Tax, Total Sales All Before Rounding, Rounding Total Sales All

Data in Bold is separate for each individual item in the Transaction so these will be repeated for each line item in the Transaction

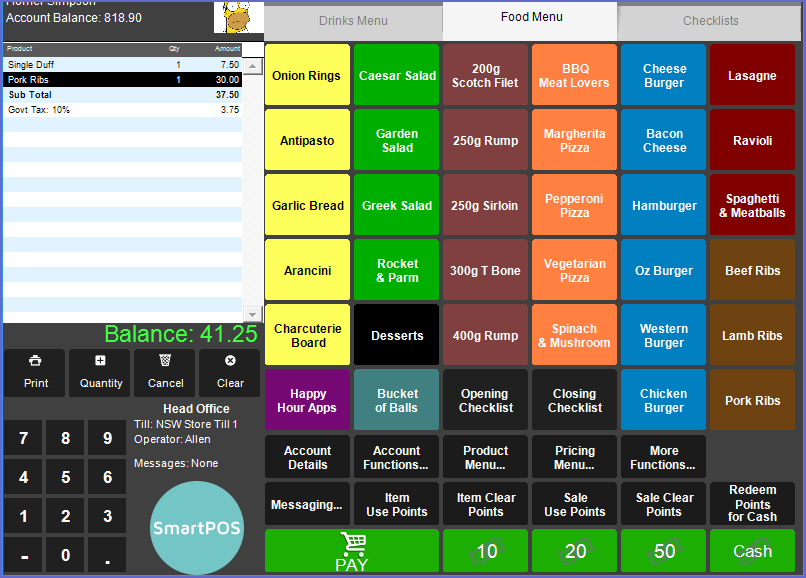

Example Transaction & Data

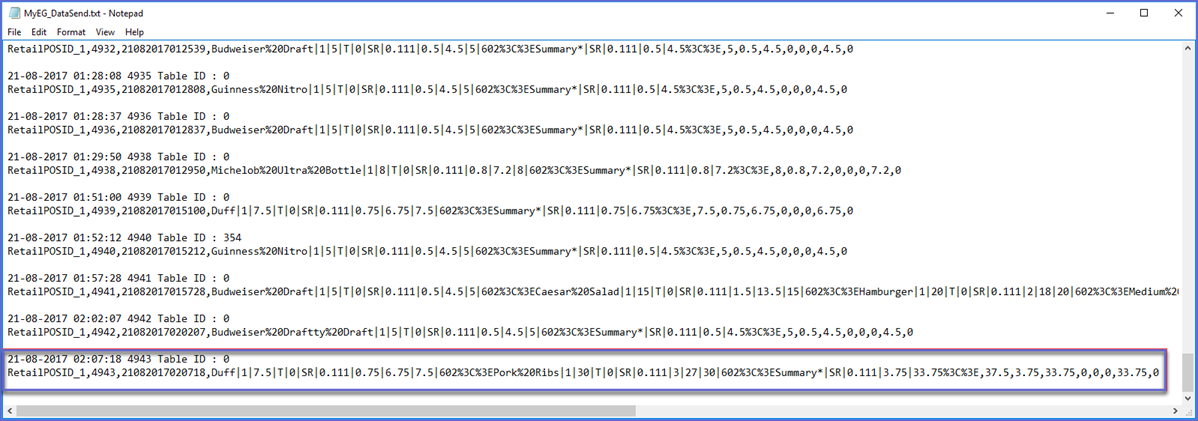

After successfully processing Payment for the above Transaction, the data which has been sent to MyEG can be found in the MyEG_DataSend.txt file
"21-08-2017 02:07:18 4943 Table ID : 0
RetailPOSID_1,4943,21082017020718,Duff|1|7.5|T|0|SR|0.111|0.75|6.75|7.5|602%3C%3EPork%20Ribs|1|30|T|0|SR|0.111|3|27|30|602%3C%3ESummary*|SR|0.111|3.75|33.75%3C%3E,37.5,3.75,33.75,0,0,0,33.75,0"

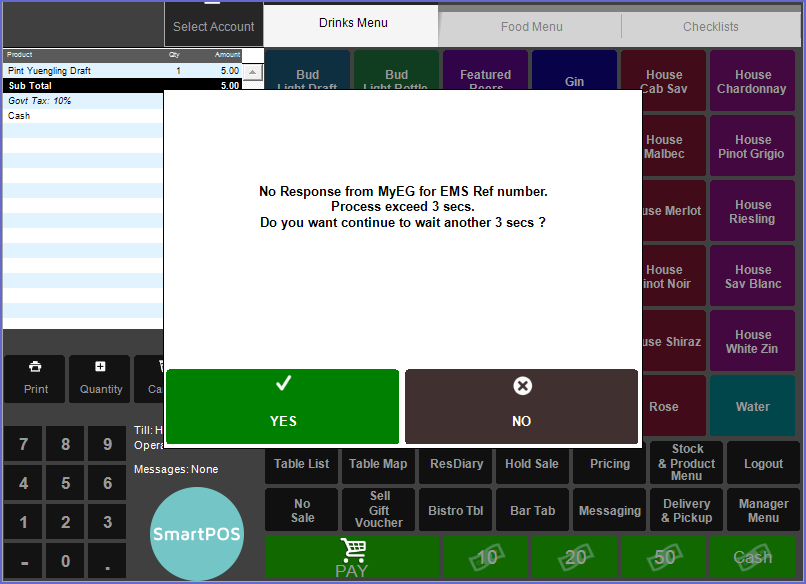

If the connection attempt to MyEG is unsuccessful after the Payment has been processed for the Transaction, a timeout message will appear; if the Operator selects not to wait for a response from MyEG, the Receipt will print without a Reference Number

Reference Number Returned from MyEG

Locally Saved File

If the connection with MyEG Server is successful, MyEG will return a Reference Number
This data will be saved locally and can be found in the Bepoz Data Directory in a text file named MyEG_DataResponse.txt

Example Transaction & Data

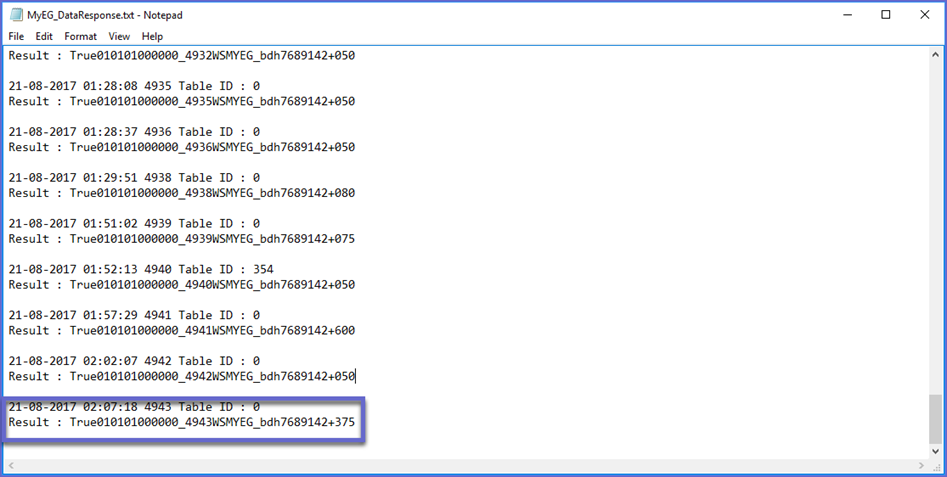

Continuing from the above example, the Date & Time, Transaction Number, and Table ID will match that of the MyEG_DataSend.txt file and can be found in MyEG_DataResponse.txt file
"21-08-2017 02:07:18 4943 Table ID : 0
Result : True010101000000_4943WSMYEG_bdh7689142+375" (EMS Reference Number is bold for demonstration)

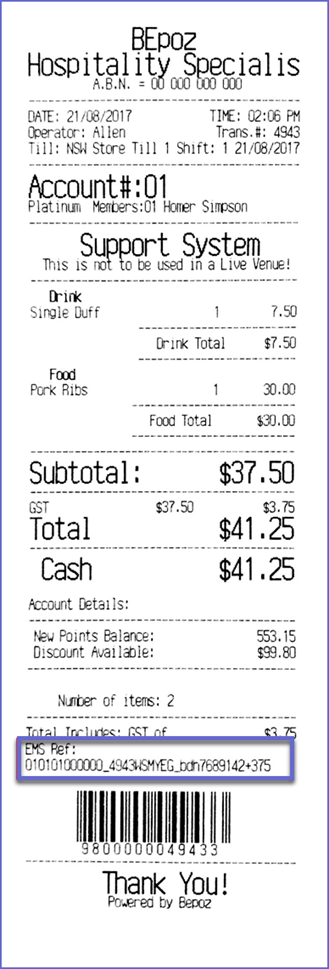

Printed on Customer Receipt

The EMS Reference Number from the above example can be seen here – printed at the bottom of the customer receipt, just above the footer
