3 | New Zealand One-Way Interface

This article covers the New Zealand One-Way Terminal Device Setups ( Bepoz Version 4.1.0.0). As the name implies, the New Zealand One-Way terminal only communicates one way. Data is only sent from POS to the terminal. Once the transaction is completed on the terminal - the Operator will need to manually close the transaction from the till.

This article covers the New Zealand One-Way Terminal Device Setups ( Bepoz Version 4.1.0.0).

As the name implies, the New Zealand One-Way terminal only communicates one way. Data is only sent from POS to the terminal. Once the transaction is completed on the terminal - the Operator will need to manually close the transaction from the till.

Prerequisites

To manage Devices & Interfaces in BackOffice, the following Operator Privileges will need to be enabled:

Operator Maintenance 'General' Tab

System Setup: "Access Venue, Stores & Tills" Flag
System Setup: "Maintain Venue, Stores & Tills" Flag

Device Setup

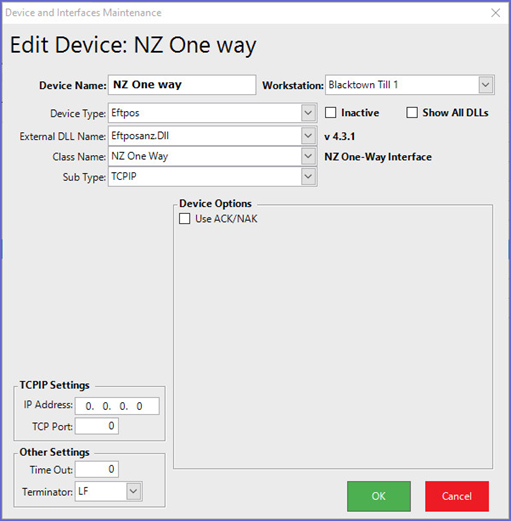

Device Setups TCPIP

Device Type	EFTPOS
External DLL Name	Eftposanz.Dll
Class Name	NZ One Way
Device Options	Use ACK/NAK (Only turn this on if your EFTPOS supports sending ACK/NAK)

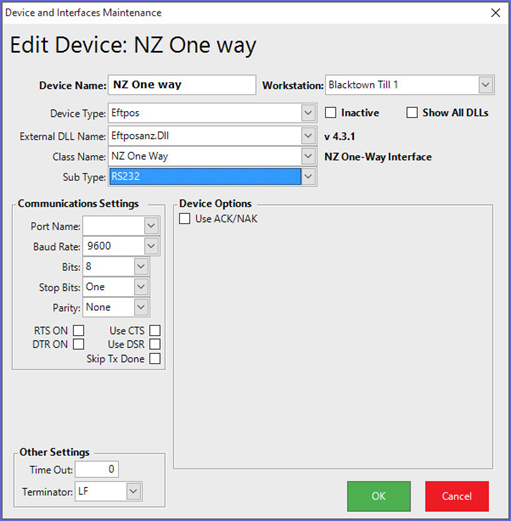

Device Setups RS232

Device Type	EFTPOS
External DLL Name	Eftposanz.Dll
Class Name	NZ One Way
Device Options	Use ACK/NAK (Only turn this on if your EFTPOS supports sending ACK/NAK)

Communication Settings

Baud Rate	9600
Parity	None
Data	8 bits, 1 stop bit
Parity	None
