Player Elite - Schedule Job Creation

Overview

This article provides an overview of how to create a schedule job to run the stored procedure for Player Elite.

BackOffice Job

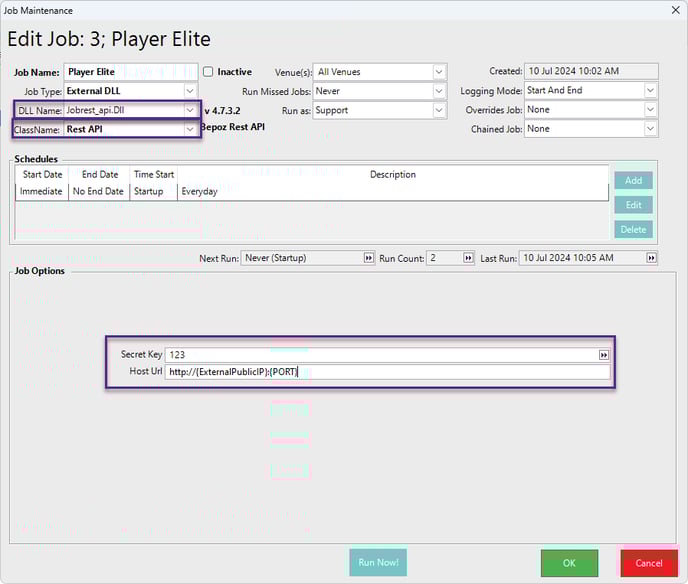

• Within BackOffice you will observe a new ClassName as shown below Rest API this is found within the DLL Name JobRest_Api.dll

Technology

• The Public REST API allows 3rd party developers to connect to a users Bepoz database through an HTTP endpoint utilizing RESTful infrastructure

• Responses will be returned in JSON format

Security

• A secret key must be provided in each request within a header called "secret". This is provided usually by a local Bepoz representative

REST HTTP Verbs

Definitions

Request & Response Format

• The REST API will accept well-formed JSON requests (where required). The corresponding response will be sent in the same format

API Endpoint

• http://{mydomain}:{port}/api/{endpoint}

Sample Request & Response

• GET http://venuedomain:555/api/systemcheck

Tools

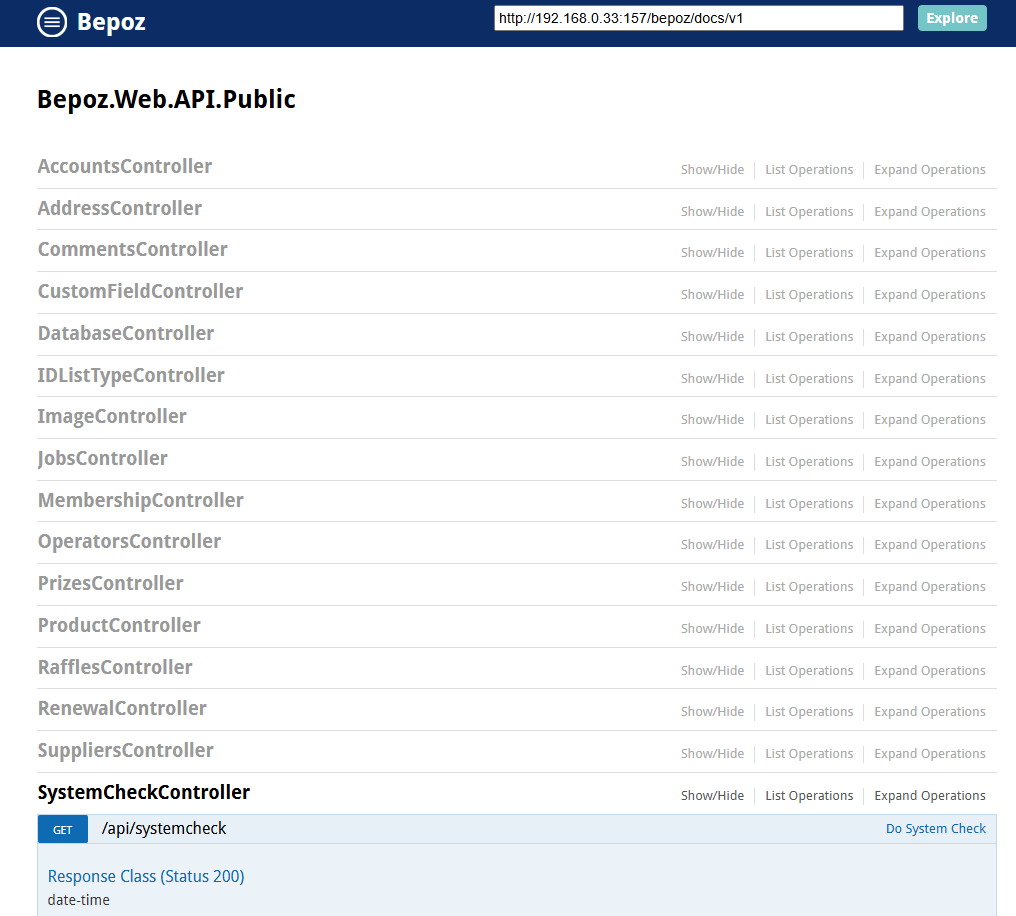

• The REST API has Swagger UI integrated. Swagger UI allows anyone to visualize and interact with the API’s resources without having any of the implementation logic in place

• Swagger UI can be accessed once the REST API job is running

• The URL is: http://X.X.X.X:YYY/bepoz/ui/index#!/ where X.X.X.X is the IP Address and YYY is the Port Number where the Rest API job is hosted

URL for SWAGGER UI for Testing RestAPI

http://127.0.0.1:157/bepoz/ui/index#!/
