3 | Product Level Blocking - New Transaction Queue Device

This article explains how to create a new Transaction Queue Device to send sales data to DXC within BackOffice.

This article explains how to create a new Transaction Queue Device to send sales data to DXC within BackOffice.

Prerequisites

• Minimum Bepoz version of 4.7 and onwards
• Product Level Blocking - BackOffice Setup

• To create a new Transaction Queue device to send sales data to DXC, the applicable Operator Privileges will need to be enabled
• Operator Maintenance 'General' Tab
• General Settings: "Use BackOffice" Flag
• System Setup: "Access Venue, Stores & Tills" Flag
• System Setup: "Maintain Venue, Stores & Tills" Flag

---

New Transaction Queue Device

• The Operator needs to login into BackOffice
• Go to the System Setup tab from the side menu and select 'Venue, Stores & Till'
• Select the desired Till where the new Transaction Queue Device needs to be setup to send Sales Data to DXC

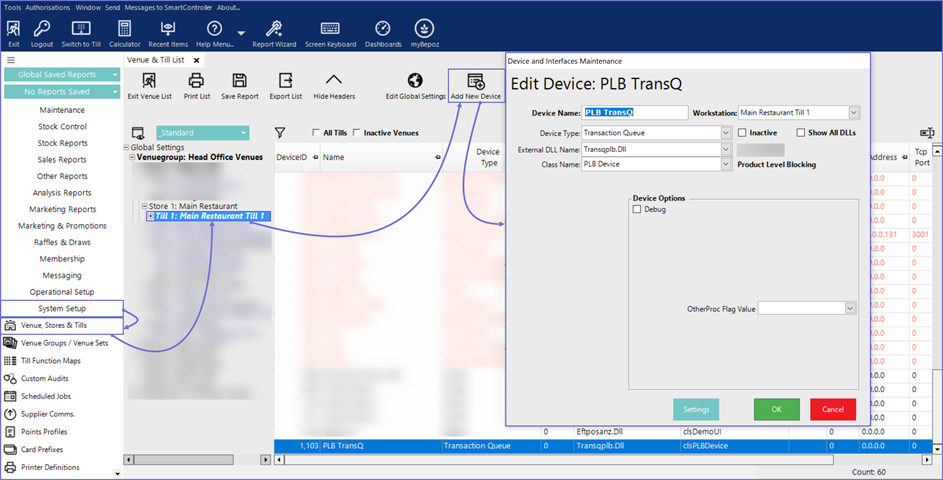

• Click on the 'Add New Device' button on the top of the 'Venue & Till List' window and select a 'Blank Device'
• Once the Operator sees the Devices and Interfaces Maintenance window, choose the following details:
• Device Name: Enter Device Name as desired
• Workstation Name: Select Workstation as desired
• Device Type: Transaction Queue
• External DLL Name: Transqplb.Dll
• Class Name: PLB Device
• Device Options:
• Debug: It's intended purpose is for development & testing
• OtherProc Flag Value: It allows the Operator to choose one of the processors, it's simply a way for the processor to flag that it's done its processing; The Operator must set it up to a value that isn't being used by any other processor the Operator may have set up

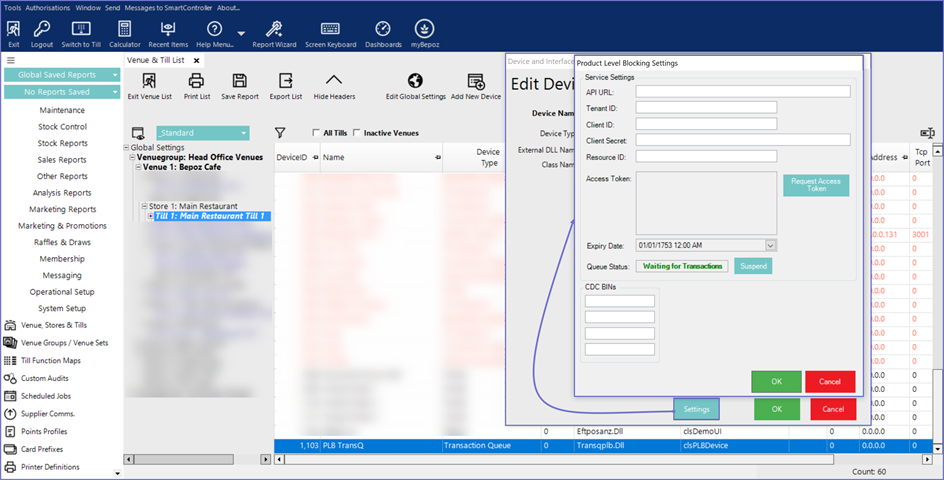

• The Settings button below opens up another set of authentication details to be entered for the full functioning of the new Transaction Queue Device, they are as follows:
• API URL: URL of the API endpoint
• Tenant ID: Tenant ID provided by DXC Central Platform team, must be set in the URI for the token request
• Client ID: Client ID provided by DXC Central Platform team, passed in as part of body request for token
• Client Secret: Client provided by DXC Central Platform team, passed in as part of body request for token
• Resource ID: Resource ID provided by DXC Central Platform team, passed in as part of body request for token
• Access Token: This token must be supplied in the header for each request
• Request Access Token: It is button used to generate the Access Token
• Expiry Date: Expiry Date of the Access Token
• Queue Status: Status of the Transaction Queue
• Suspend: Button used to Suspend/Resume the Queue
• CDC BINs: Used to identify CDCs
