      2 | QSR Application Setup

      Bepoz can integrate with the QSR Kitchen Display System (KDS) and this article outlines the setup requirements within the QSR Application itself. Along with the QSR ConnectSmart KitchenServer running, the Bepoz SmartController must also be running. Additionally, the Bepoz application called KDSLink needs to be configured. There are additional BackOffice System Admin configurations which are detailed in other articles.

      Bepoz can integrate with the QSR Kitchen Display System (KDS) and this article outlines the setup requirements within the QSR Application itself.

      Along with the QSR ConnectSmart KitchenServer running, the Bepoz SmartController must also be running. Additionally, the Bepoz application called KDSLink needs to be configured. There are additional BackOffice System Admin configurations which are detailed in other articles.

      Prerequisites

      N/A

      QSR Applications

      • There are a handful of QSR applications that must be configured and/or running for this integration to work
      • The majority of these should be on a computer in the back-of-house, manager's office, or similar secure location
      • Conversely, the Display Client will need to be running on any prep, line, expo, etc. screens that make up the full KDS

      ConnectSmart KitchenServer

      • The ConnectSmart KitchenServer must be running to that the Bepoz KDSLink application can connect to the Server
      • If this isn't running, the KDSLink application will be unable to connect to the QSR Server and the System will not function

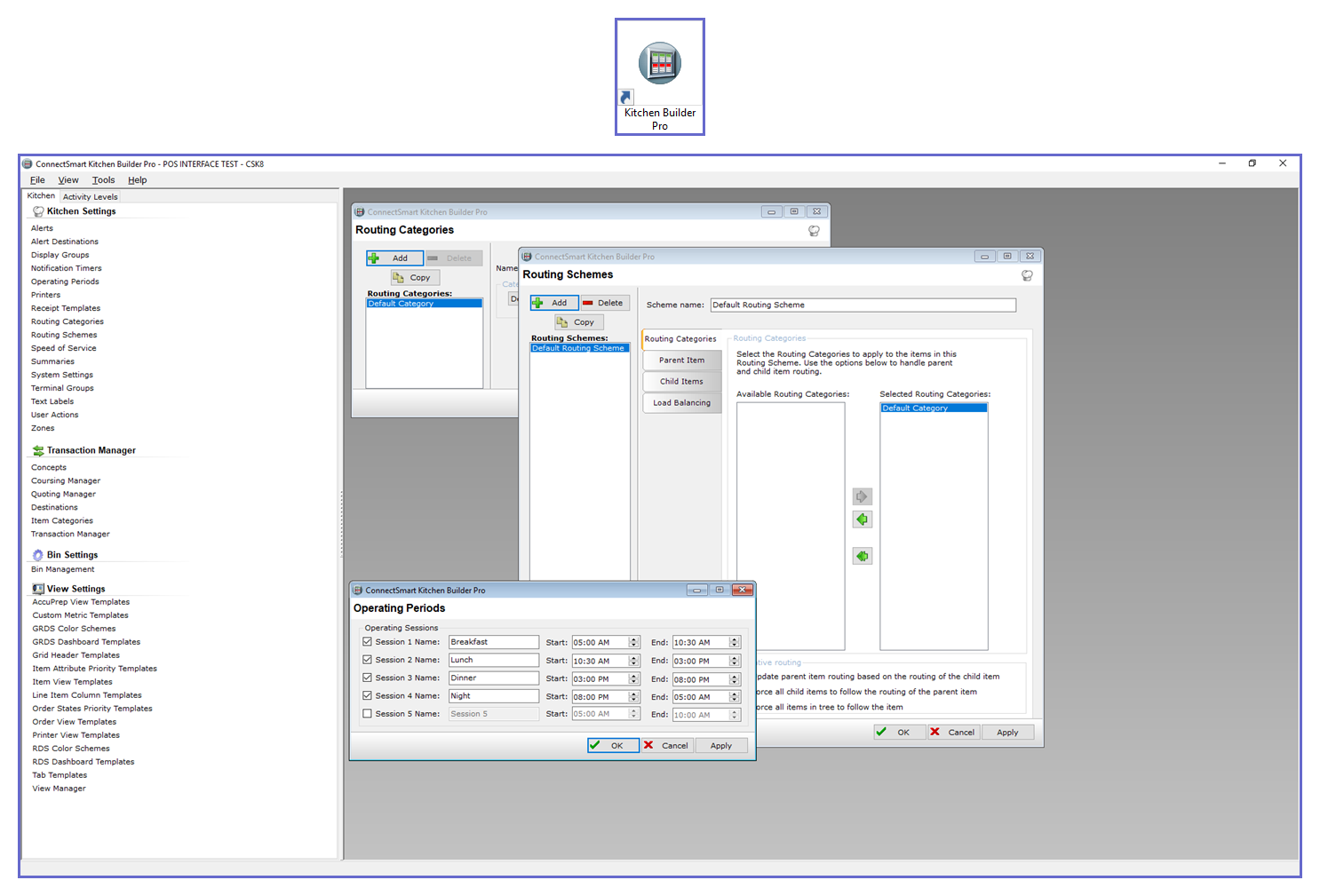

      ConnectSmart Kitchen Builder Pro

      • This application is used for all of the QSR KDS configurations including Kitchen Settings and View Settings
      • Routing Categories and Routing Schemes set up in Kitchen Builder Pro will determine which Products appear on which KDS screens
      • There are dozens of other settings in Kitchen Builder Pro that can be used to style and set up the system's Display Clients
      • QSR provides additional documentation on the details of this application

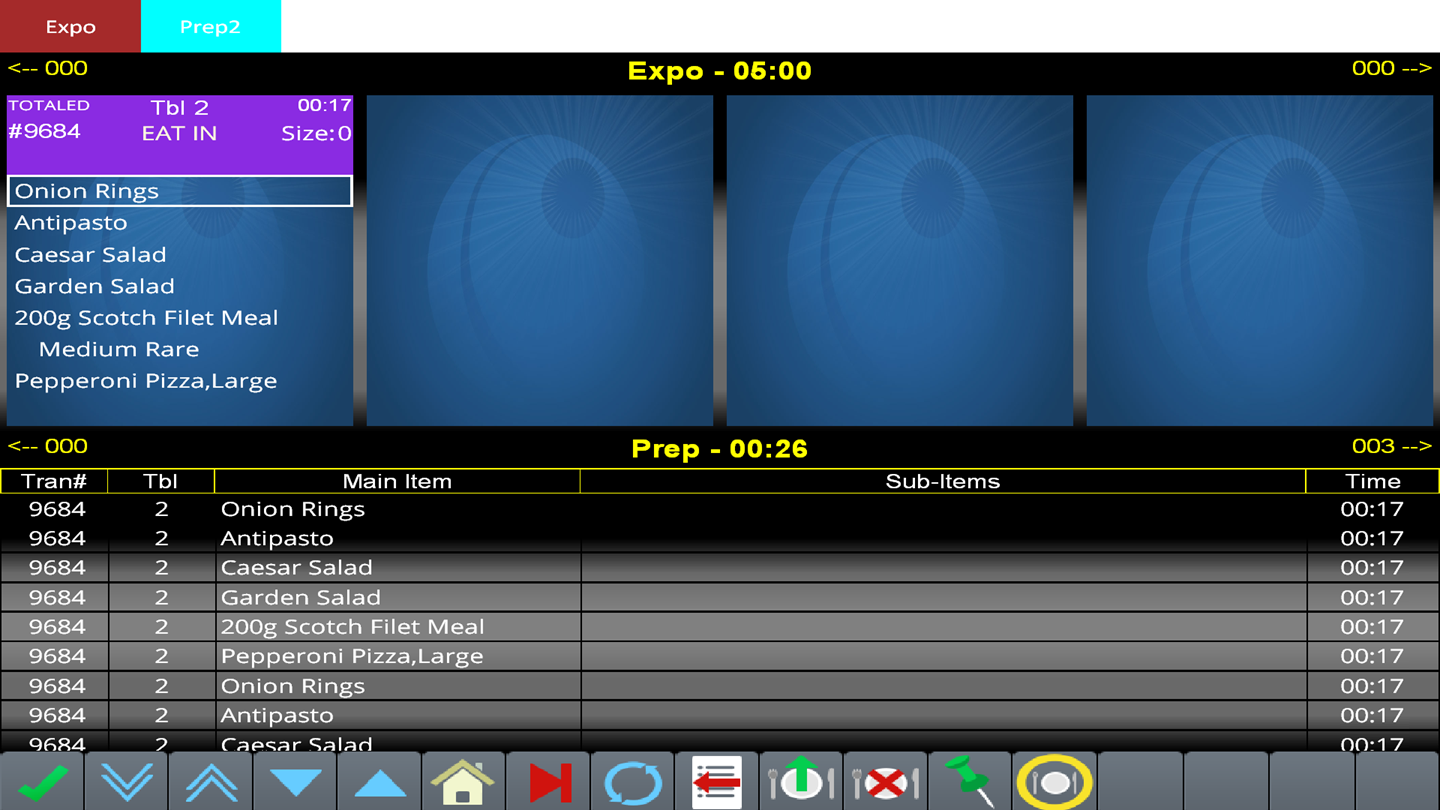

      QSR Display Client

      • The QSR Display Client is configured using the ConnectSmart Kitchen Builder Pro
      • This is the actual application that Operators will interact with and will use in the kitchen
      • The Display Client will show Products that have been ordered through SmartPOS and can then be tracked and bumped
