4 | QSR Till Functions

This article explains the Till Functions that were created to support the QSR interface and must be setup for it. This article covers these Till Functions in detail and also provides a setup guide to the user.

This article explains the Till Functions that were created to support the QSR interface and must be setup for it.

This article covers these Till Functions in detail and also provides a setup guide to the user.

Prerequisites

• To access QSR features, the applicable Operator Privileges will need to be enabled
• Operator Maintenance 'General' Tab
• System Setup: "Access Venue, Stores & Tills" Flag

• System Setup: "Maintain Venue, Stores & Tills" Flag
• System Setup: "Maintain Till Function Maps" Flag
• Operator Maintenance 'Maintenance' Tab
• Products: "View Products" Flag
• Products: "Edit Products" Flag

Till Functions

• Two (2)  Till Functions  relating to the QSR KDS integration and other integrated KDS can aid in operating more effectively


Rush Item

• When used with integrated KDS such as QSR, using this Till Function will Rush/Fast Track a Product to the nominated KDS screen
• This only applies to Table Transactions
• To set up this Till Function:

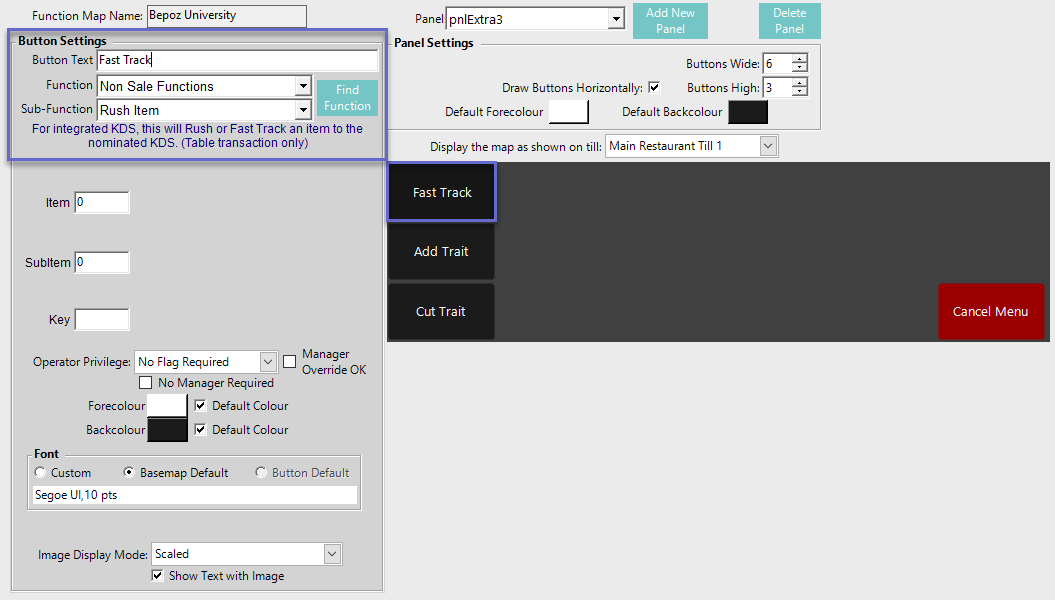

• Select the desired Till Function Panel, click on the desired Button space and then configure the Button Settings:
• In the Button Text field enter the text that will display on the Till Function Button on SmartPOS Workstation screens

• Set the Function drop-down to 'Non Sale Functions'

• Set the Sub-Function to 'Rush Item'


Item Trait

• Depending on the Till Function configuration option as set up in the Item field, this Till Function, when used with an integrated KDS, will set a Product as "trait" on or off
• It's recommended to configure two (2) of these Till Functions - one used to set Traits on and the other to set Traits off

• To set up this Till Function:
• Select the desired Till Function Panel, click on the desired Button space and then configure the Button Settings:
• In the Button Text field enter the text that will display on the Till Function Button on SmartPOS Workstation screens

• Set the Function drop-down to 'Non Sale Functions'

• Set the Sub-Function to 'Item Trait'
• Enter a corresponding number the Item field where:
• "1" will set a trait as on/add
• "2" will set a trait as off/cut
