      1 | Sint Carpark Transaction Queue Setup

      This article covers the setup required to configure Sint Carpark Transaction Queue within Bepoz BackOffice.

      This article covers the setup required to configure Sint Carpark Transaction Queue  within Bepoz BackOffice.

      Prerequisites​​​​​​​

      • Minimum Bepoz version of 4.7.2.1 and above
      • To setup Sint Carpark within BackOffice, the applicable Operator Privileges will need to be enabled
        • Operator Maintenance 'General' Tab
          • General Settings: "Use BackOffice" Flag
          • System Setup: "Access Venue, Stores & Tills" Flag
          • System Setup: "Maintain Venue, Stores & Tills" Flag

      Sint Carpark Transaction Queue Device

      • After logging into BackOffice, navigate to the System Setup tab from the side menu and select 'Venue, Stores & Till'
      • Select the desired Till within the desired Store within the desired Venue to create the Sint Carpark Transaction Queue device

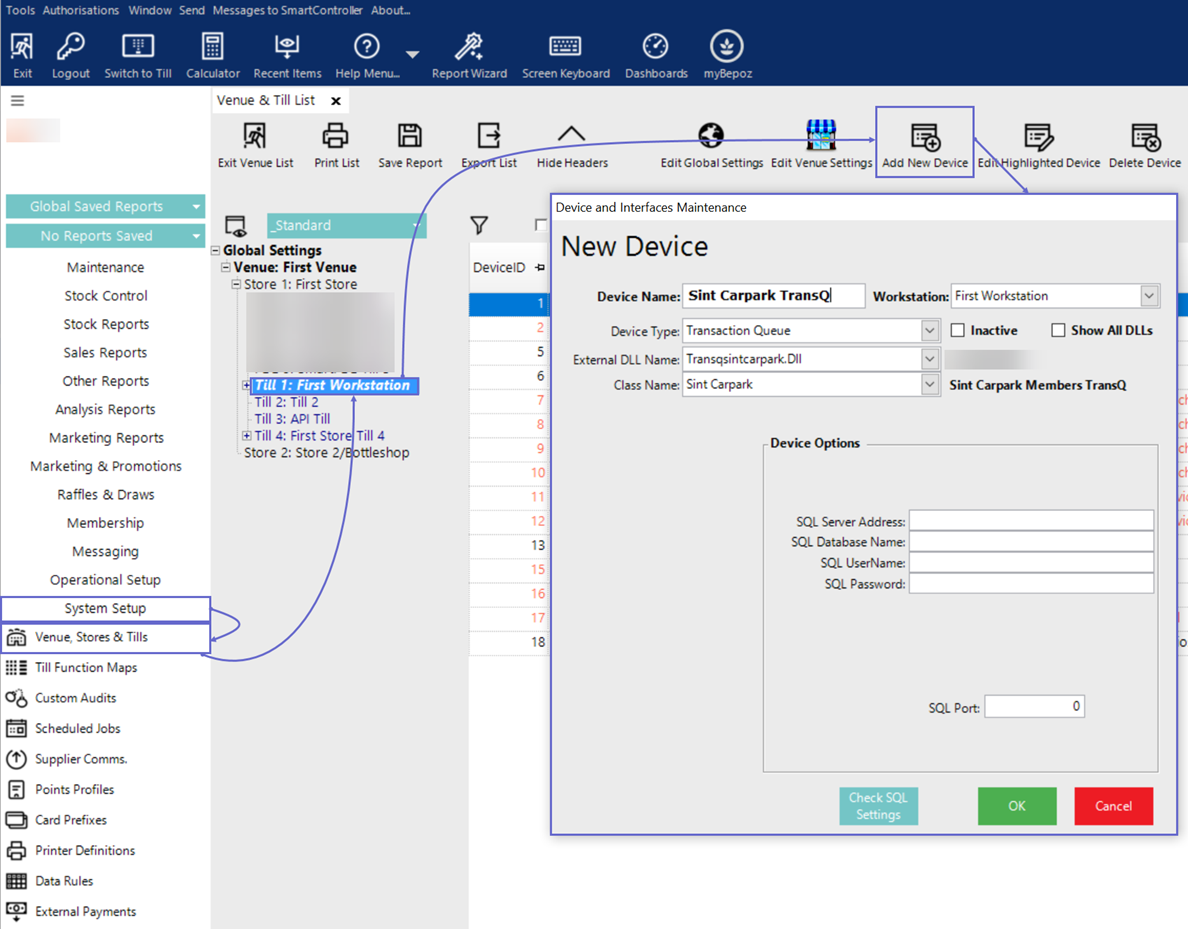

      • Click on 'Add New Device' and a Device and Interfaces Maintenance screen pops up, fill in with the following details:
        • Device Name: As per desired
        • Device Type: Transaction Queue
        • External DLL Name: Transqsintcarpark.Dll
        • Class Name: Sint Carpark
        • Device Options:
          • SQL Server Address: This is the IP Address and SQL Server Name of the SQL Server where the Sint Carpark server is located (<server>/<sqlservername>)
          • SQL Database Name: This is name of the Sint Carpark Database that Bepoz integrates to
          • SQL UserName: This is the Username to log onto the Sint SQL Server Instance
          • SQL Password: This is the Password to log onto the Sint SQL Server Instance
          • SQL Port: This is the SQL Port number
          • Check SQL Settings: This allows us to check the SQL Settings to ensure connectivity
