      1 | SmartButton Interface BackOffice Setup

      This article covers an overview of the SmartButton Interface including initial setup and configuration in BackOffice. SmartButton is a type of Loyalty processor application which awards based on sales and t his interface sends Sales to a SmartButton receiving port. NB: This is a custom interface written by an independent customer/organization and may not work on systems other than theirs.

      This article covers an overview of the SmartButton Interface including initial setup and configuration in BackOffice.

      SmartButton is a type of Loyalty processor application which awards based on sales and this interface sends Sales to a SmartButton receiving port.

      NB: This is a custom interface written by an independent customer/organization and may not work on systems other than theirs.

      Prerequisites

      • To access SBLP Settings, the applicable Operator Privileges   will need to be enabled
        • Operator Maintenance 'General' Tab
          • System Setup: "Access Venue, Stores & Tills" Flag
          • System Setup: "Maintain Venue, Stores & Tills" Flag

      About

      • This Interface is a Transaction Queue DLL, that sends all transactions across to the SmartButton interface
      • The data is sent in XML format within a SOAP envelope and is Posted to an internal https URL

      Device Setup

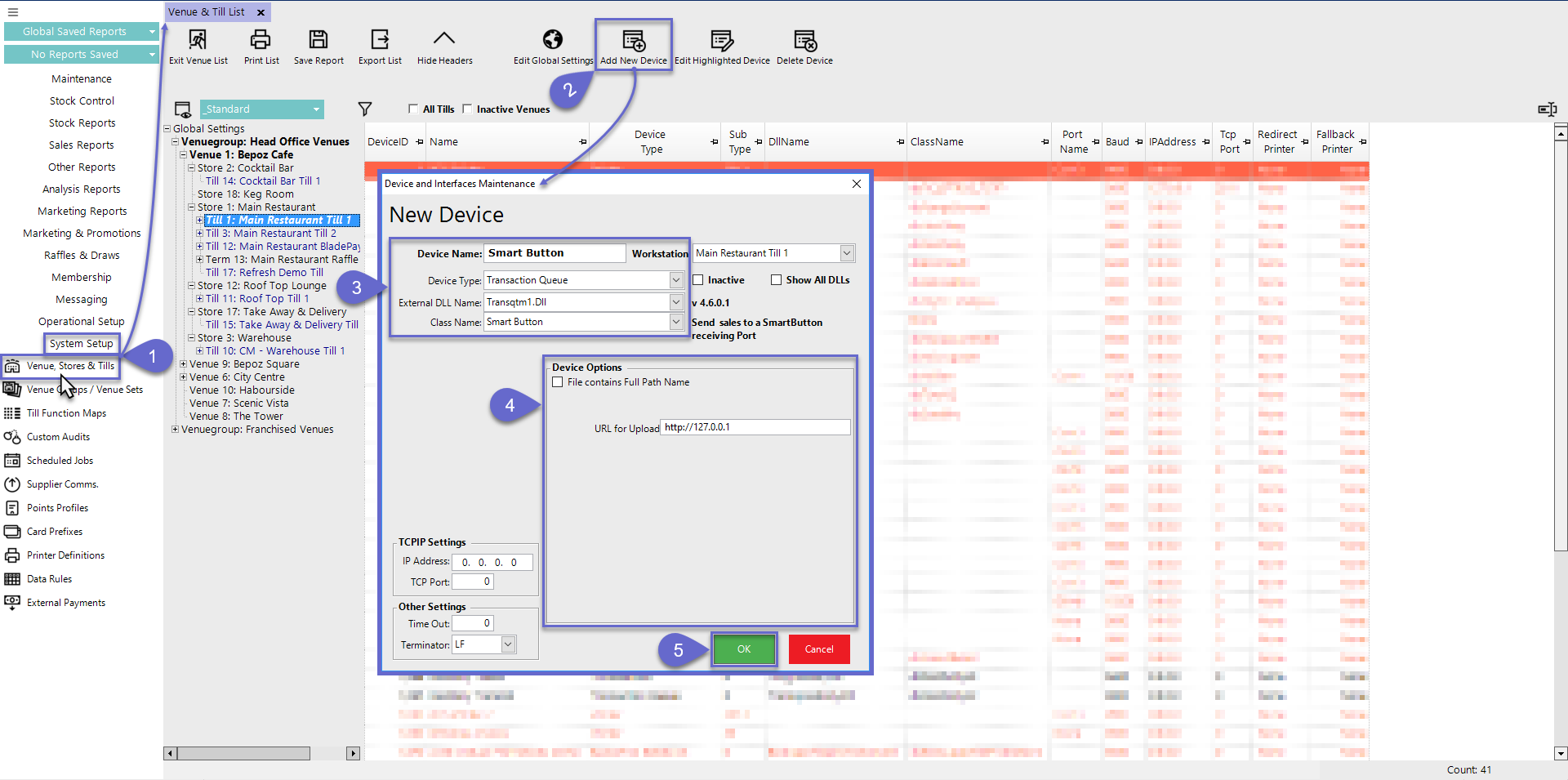

      • After logging into BackOffice, complete the following steps to create & configure the SmartButton Transaction Queue  device :
        1. Navigate to the System Setup component in the sidebar, expand, and select Venue, Stores & Tills to open the Venue & Till List Tab
        2. Highlight the Head Office Server Workstation and click on the Add New Device button in the header; when prompted select 'Blank Device' and a New Device and Interfaces Maintenance window will open
        3. Enter a Device Name, set the Device Type to 'Transaction Queue', the External DLL Name to 'Transqtm1.Dll', and the Class Name to 'SmartButton'
        4. Configure the Device Options as required:
          • File Contains Full Path Name - Enable this flag when the URL Field is the filename of a text file containing the URL (for really long URLs)
          • URL for Upload - Enter the URL here, or alternatively, the filename of a text file containing the URL
            • If entering the filename of a text file containing the URL, the "File contains Full Path Name" flag must be enabled
        5. Click OK to save the Transaction Queue
