5 | SmartPDE Mobile Database Settings

Configuring the Database Settings present within the SmartPDE Mobile app  is the 4th step out of 5 steps required to setup and start using SmartPDE Mobile.

Configuring the Database Settings present within the SmartPDE Mobile app is the 4th step out of 5 steps required to setup and start using SmartPDE Mobile. This must be completed in order to connect the BackOffice with the SmartPDE Mobile app so that the Operator can start running stock functions on the app.

Prerequisites

• Minimum Bepoz version of 4.7 and onwards
• Completion of SmartPDE Mobile App Setup in the given order:
1. SmartPDE Mobile Licensing & Installation
2. SmartPDE Mobile Workstation Setup
3. SmartPDE Mobile Scheduled Job & Configurations

Database Settings

• In the SmartPDE Mobile App, from the Login Page, click on Database Settings

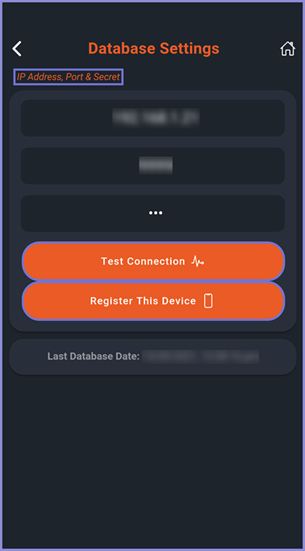

• Now, the Operator can see field boxes for IP Address, Port No. & Secret Key
• They can also view the Test Connection and Register This Device Buttons

• The Operator must now enter the IP Address, Port No. & Secret Key as configured within the  SmartPDE Mobile Scheduled Job & Configurations  created within BackOffice
• Once the correct details have been entered, click the Test Connection button

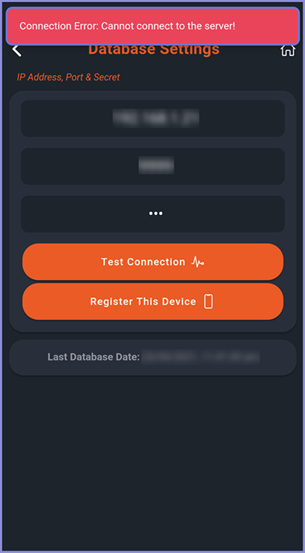

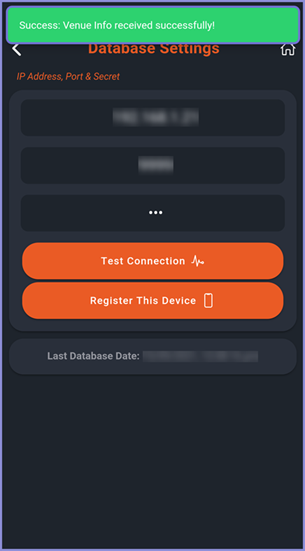

• If the connection is successful, a message pops up in green, "Success: Venue Info received successfully!", else a message pops up in red, "Connection Error: Cannot connect to the server!"

• Once the connection is successful, press the 'Register This Device' button
• A confirmation message pops up with two options, "Cancel" & "OK"
• If OK is pressed, then a message pops up in green, "Device Registered Successfully"; otherwise, the Device is not registered

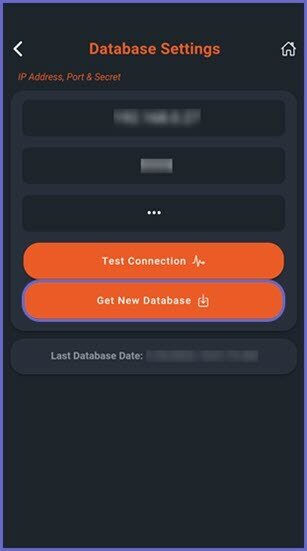

• Once the Operator has successfully registered their device, a new option called, 'Get New Database' is displayed on the screen
• Click on the 'Get New Database' option to retrieve an SQL Lite version of the database from the Bepoz SmartControl
• Note: The database retrieved is only lite version of the Bepoz Database, not the full database; this is to avoid storage issues on the mobile device

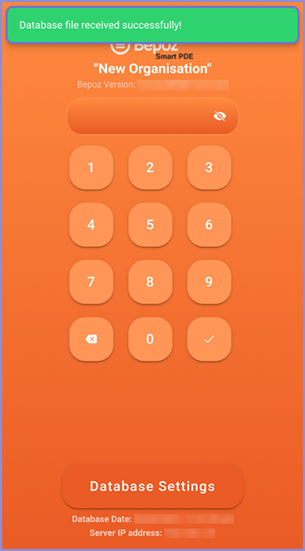

• If database retrieval is successful, a message is displayed notifying that the database is retrieved successfully

• Note: After performing a Stock Function that is Sent to the Server, it is mandatory to Get New Database because the Operator will require the most recent database to work on the SmartPDE Mobile App
• Hence, it is very important to Get New Database after sending each entry to the server

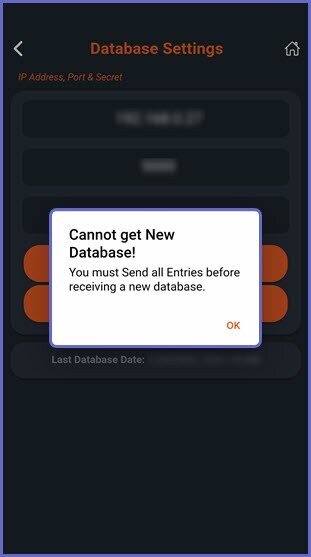

• If an entry is not Sent to Server, the Operator cannot request for a new database until all the entries are sent to server

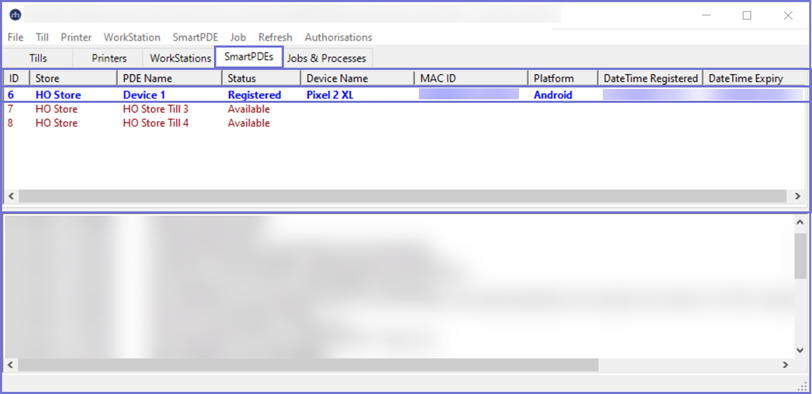

• Once the device is registered, it is displayed within the SmartController as follows:

SmartPDE Mobile App Setup Articles

• To complete the full & correct setup of the SmartPDE Mobile app, the Operator must follow & execute these articles provided in the given chronological order:
1. SmartPDE Mobile Licensing & Installation
2. SmartPDE Mobile Workstation Setup
3. SmartPDE Mobile Scheduled Job & Configurations
4. SmartPDE Mobile Database Settings
5. SmartPDE Mobile HomePage
