1 | SmartPDE Mobile General Settings

This article explains how to setup Product Names, set the Default Venue and Default Store, and setup preferred Barcode Scanner, etc.  in the SmartPDE Mobile app.

This article explains how to setup Product Names, set the Default Venue and Default Store, and setup preferred Barcode Scanner, etc. in the SmartPDE Mobile app.

Prerequisites

• Minimum Bepoz version of 4.7 and onwards
• Completion of SmartPDE Mobile App Setup in the given order:
1. SmartPDE Mobile Licensing & Installation
2. SmartPDE Mobile Workstation Setup
3. SmartPDE Mobile Scheduled Job & Configurations
4. SmartPDE Mobile Database Settings
5. SmartPDE Mobile HomePage

SmartPDE Mobile General Settings

• To access the SmartPDE Mobile App's General Settings, the Operator must open the SmartPDE Mobile App with a valid Operator Login ID
• Then, navigate to the General Settings from the side menu of the SmartPDE Mobile App
• Once, the General Settings are opened, the Operator will see the various data fields as follows:

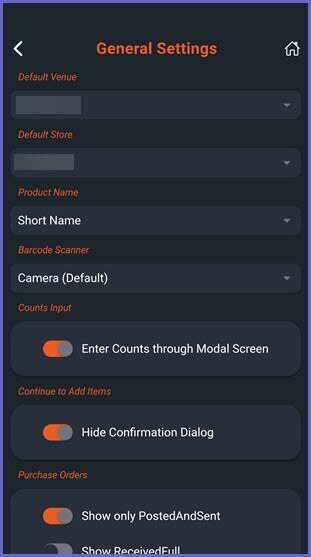

• Default Venue: Can be selected as desired in a Multi-Venue environment
• Default Store: Can be selected as desired
• Note: If default Venue and Store are set, while performing any stock function, the app will pre-populate the Venue and Store fields which otherwise can also be changed within the Stock Functions

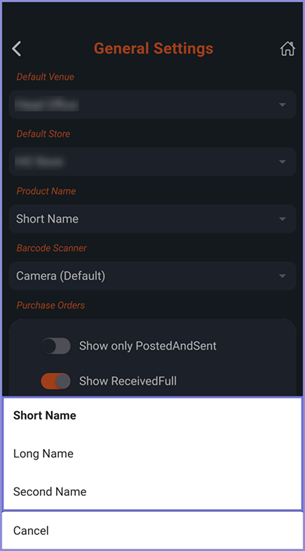

• Product Name: Can be selected from the 3 choices:
• Short Name
• Long Name
• Second Name
• Note: In any Stock Function, the Product Name is displayed based on what is set here

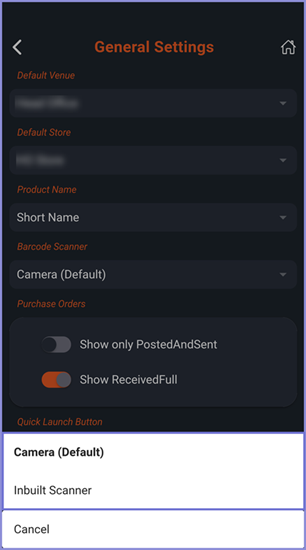

• Barcode Scanner: Can be selected from the 2 choices
• Camera (Default): This is the native camera of the mobile device
• Inbuilt Scanner: This is the Bluetooth scanner device embedded into the mobile device

• Counts Input:
• Enter Counts through Modal Screen: If turned on, when a Products barcode is scanned, it will redirect the Operator to a modal screen where the Operator can enter a count for the Product. If turned off, it will not redirect to the Enter Counts Modal Screen, but to the scanned Products Detail Page
• Continue to Add Items:
• Hide Confirmation Dialog: If turned on, it will hide the Confirmation Dialog prompting the Operator if they want to continue to add items, instead it will redirect the Operator to the Product Search Page after the Count has been entered
• Show Confirmation Dialog: If turned off, it will show the Confirmation Dialog prompting the Operator if they want to continue to add items after a Products count is entered
• Purchase Orders:
• Show only PostedAndSent: If turned on, it will only display Purchase Orders which have a 'PostedAndSent' status
• Show ReceivedFull: If turned on, it will only display Purchase Orders which have a 'Completed' status
• Quick Launch Button: If turned on, it will show the Quick Access option on the Homepage screen allowing the users to quickly access all the Stock Functions features on-the-go

• The Back button & Home button situated at the top-left and top-right corners of the screen, respectively, will both take the Operator to the Homepage of the SmartPDE Mobile App
