3 | SmartPDE Mobile Workstation Setup

Adding a SmartPDE Workstation within BackOffice  is the 2nd step out of 5 steps required to setup and start using SmartPDE Mobile.  It is required so that the SmartPDE Mobile App can be registered to a Workstation that's been setup within BackOffice.

Adding a SmartPDE Workstation within BackOffice is the 2nd step out of 5 steps required to setup and start using SmartPDE Mobile. It is required so that the SmartPDE Mobile App can be registered to a Workstation that's been setup within BackOffice.

Prerequisites

• Minimum Bepoz version of 4.7 and onwards
• Completion of SmartPDE Mobile App Setup in the given order:
1. SmartPDE Mobile Licensing & Installation

• To access SmartPDE features, the applicable Operator Privileges will need to be enabled
• Operator Maintenance 'General' Tab
• General Settings: "Use BackOffice" Flag
• System Setup: "Access Venue, Stores & Tills" Flag
• System Setup: "Maintain Venue, Stores & Tills" Flag

Adding a SmartPDE Workstation

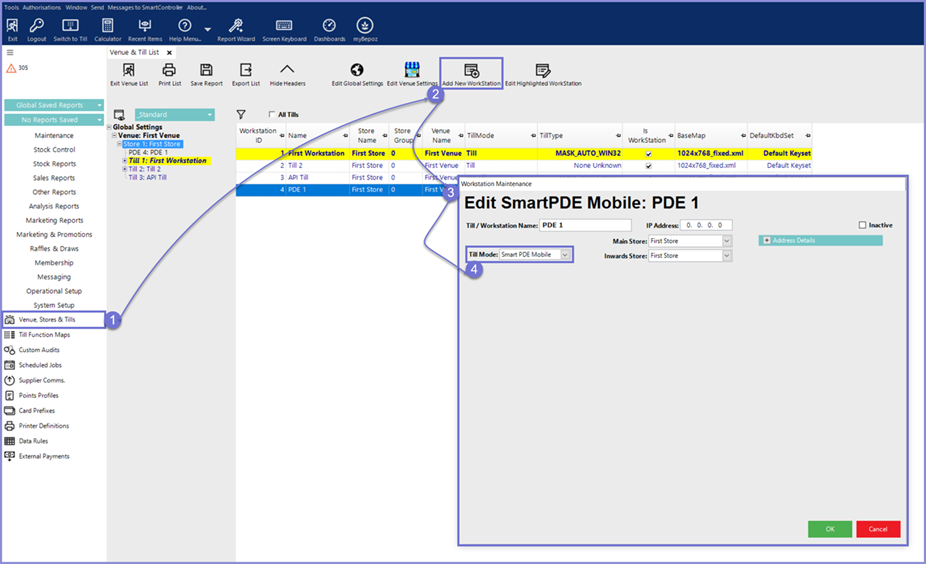

1. First, navigate to System Setup component in the sidebar menu and select Venue, Stores & Tills to open the Store tab under which you want to create a New Workstation
2. Click on 'Add New Workstation' button at the top of the tab
3. When prompted select 'Blank Workstation' and enter a Name for your New Workstation and the Workstation Maintenance window will open
4. There are a number of credentials that need to be configured, including the following:
• Till Mode: Smart PDE Mobile
• Till Workstation Name: Give the Workstation a relevant name
• IP Address: 0.0.0.0
• Main Store: Please select the Main Store which determines where Stock records will be linked to
• Inwards Store: Please select Inwards Store which determines which Store will be receiving Stock via this SmartPDE; this is oftentimes, but not always the same as the Main Store

• Repeat these steps as needed for all required SmartPDEs

• Note: Restart SmartControl to show a tab of all SmartPDEs available

• The amount of SmartPDE Workstations can be created as desired, but the usage of them will be limited to the number of licenses

SmartPDE Mobile App Setup Articles

• To complete the full & correct setup of the SmartPDE Mobile App, the Operator must follow & execute these articles provided in the given chronological order:
1. SmartPDE Mobile Licensing & Installation
2. SmartPDE Mobile Workstation Setup
3. SmartPDE Mobile Scheduled Job & Configurations
4. SmartPDE Mobile Database Settings
5. SmartPDE Mobile HomePage
