1 | SmartPOS Mobile- Pay@Table Till Function Button Setup Guide

Covers the setup that is required to configure the Till Function button for Pay@Table.

This article covers the setup that is required to configure the Till Function button for Pay@Table.

Prerequisites

• Minimum Bepoz version of 4.7.3.x
• Minimum .NET version of 4.8
• The applicable Operator Privileges will need to be enabled:
• Operator Maintenance 'General' Tab
• System Setup: "Maintain Till Function Maps" flag
• Venue Maintenance "Main" Tab (General Settings)
• All “System Setup” Flags

---

Pay@Table Till Function Button Setup

• To set up the Till Function button for Pay@Table for SmartPOS Mobile transactions, navigate to the Till Function Maps option under System Setup in the BackOffice side Menu bar
• This will open the Till Function Override Setup tab; select the desired Function Map from the available list of Function Maps and click on Edit Highlighted Function Map
• Note: If there are no Function Maps, please click on    Adding a Till Function Map  button to add a new Function Map

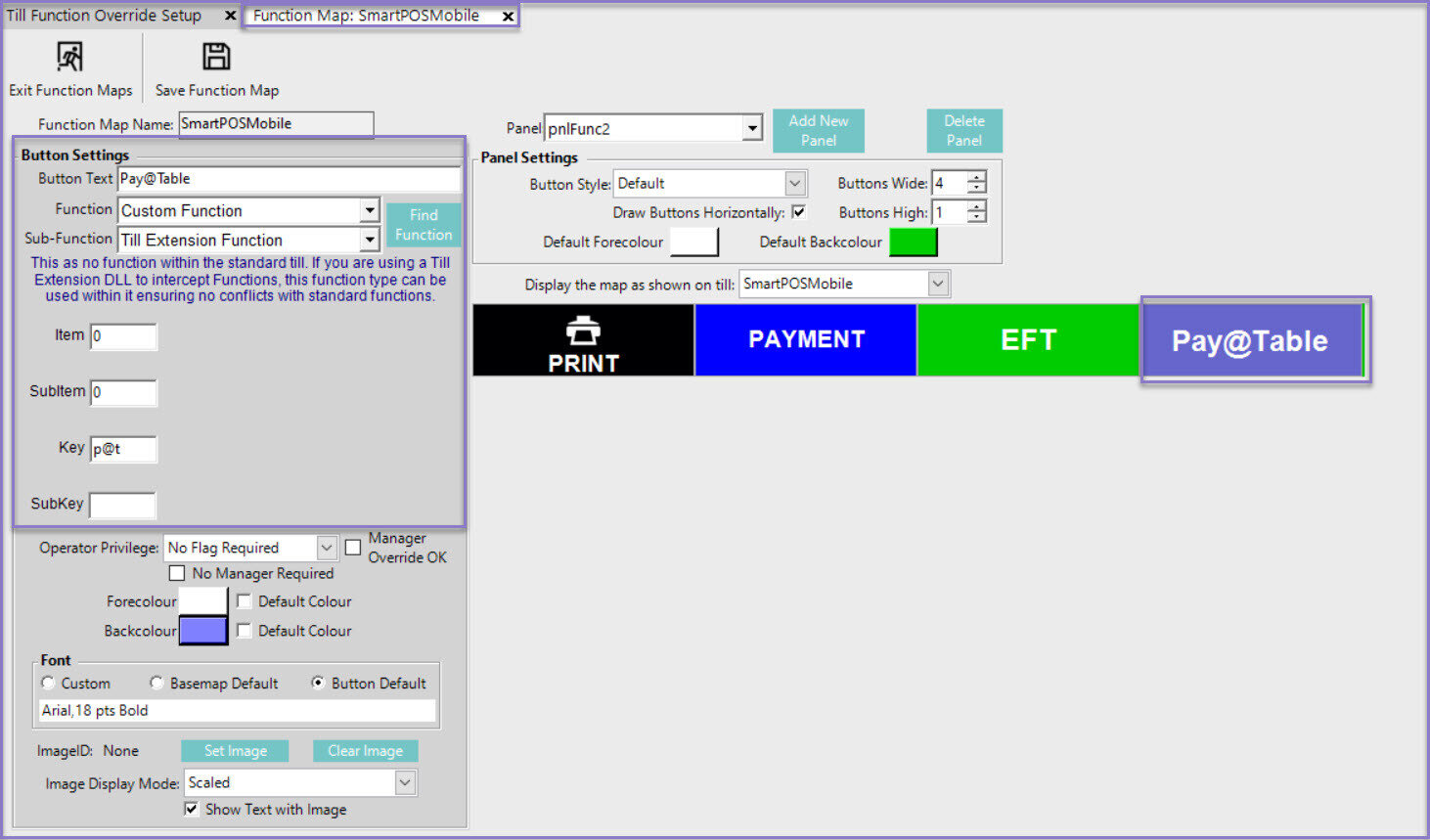

• This will open the Function Map tab which will display the Function Map menu as it would appear on SmartPOS Mobile
• Click on the desired Button space and then configure the Button Settings as follows:
• In the Button Text field enter the text that will display on the Till Function Button on SmartPOS Mobile
• Set the Function drop-down to 'Custom Function'
• Set the Sub-Function to 'Till Extension Function'
• In the Item field, enter '0', SubItem as '0', Key as p@t and  save the Function Map

---

SmartPOS Mobile App Setup Articles

• To complete the full & correct setup of the SmartPOS Mobile App, the Operator must follow & execute these articles provided in the given chronological order:
1. SmartPOS Mobile Workstation Setup
2. SmartPOS Mobile Venue Maintenance Setup

3. SmartPOS Mobile Till Function Map Setup Guide
4. SmartAPI Host Usage

5. SmartPOS Mobile App Configuration Screen
