2 | Table Colours & Courses

This article explains the different table colours and courses that will be applicable when using Table Functions in SmartPOS. Table Colours allow Operators to see the Table Statuses via different colours within a Graphical Table Map. These apply to all Table Groups in the Venue.

This article explains the different table colours and courses that will be applicable when using Table Functions in SmartPOS.

Table Colours allow Operators to see the Table Statuses via different colours within a Graphical Table Map. These apply to all Table Groups in the Venue.

The Table Courses section allows for configuring up to four (4) Sort Types to be defined as Courses 1 through 4. All of the System's available Product Sorts as configured in Global Settings will be available to set for each Course. The Product Sort selected relates to the Graphical Table Map and which corresponding Table Colour will be used based on the Products' Product Sorts and the Table's progress.

Each Course has three (3) statuses - Sold, Served and Table Away.

Prerequisites

To access Table Colours & Courses features, the applicable Operator Privileges will need to be enabled

Operator Maintenance 'General' Tab

System Setup: "Access Venue, Stores & Tills" Flags
System Setup: "Maintain Venue, Stores & Tills" Flags

Table Colours

This is the second part of Table Group Settings

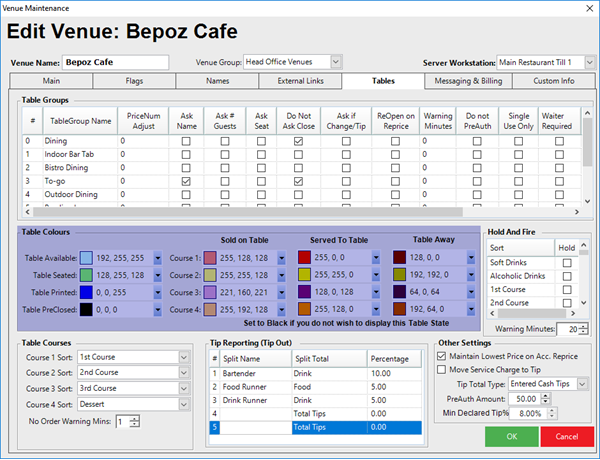

To Access the Table Colours, go to Venue Maintenance > Tables

The highlighted section allows for many settings for Color definition

This applies across all Table Groups

Table Available – The tables that are not currently occupied by any customers
Table Seated – The tables that have guests seated
Table Printed – The table bill/account has been printed BUT is not paid yet
Table PreClosed - The table has paid the bill, but the table is not yet available due to required cleaning or table re-set
Operators can also set the Table Courses 1 to 4 colors for Served and Table Away

These are referred to as Table Status

These options can be changed either by clicking on the Drop-down box or by manually typing the color code

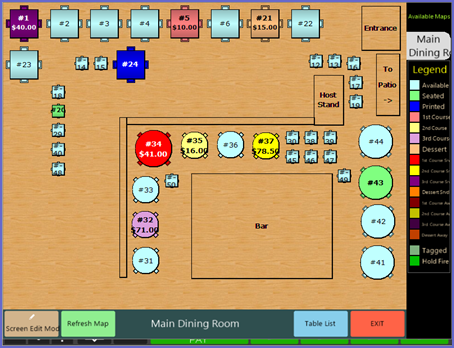

The tables will appear similar to below in SmartPOS:

Table Courses

Table Courses allow up to four Sort Types to be defined for Table Statuses
Each Course has Two Statuses - Served and Table Away

This will need to be Customized on the override map

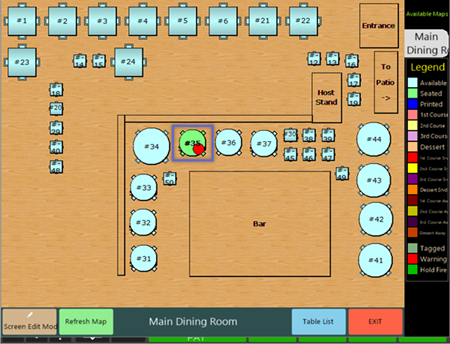

The No Order Warning Mins field is set to warn the operator after the set period in minutes if no orders have been entered for the table. If using Graphical Table Maps, this will be seen as a red circle

I.e., if this is set to 15, then 15 minutes after a Table has been Opened with no Order placed for it, the warning will be activated and also if an Order is placed, then 5 minutes later, the warning will be activated
