5 | Tyro Connect Implementation

This article explains the procedure for implementing the integration to Tyro Connect. Tyro Connect is a newer platform designed to supersede previous Tyro platforms and offers multiple integrated workflows: Sales Sending Aggregated Ordering Bookings However, for the purposes of this integration, Bepoz has only implemented the Sales Sending functionality at this time.

This article explains the procedure for implementing the integration to Tyro Connect.

Tyro Connect is a newer platform designed to supersede previous Tyro platforms and offers multiple integrated workflows:

However, for the purposes of this integration, Bepoz has only implemented the Sales Sending functionality at this time.

Prerequisites

To begin the implementation process, the Implementation Operator must have the following privileges enabled:

Please note that the OpenTable integration is available as of the Bepoz release version 4.6.1.20+

Tyro Connect Transaction Queue Device

Adding a Transaction Queue Device is required so that we can configure the necessary settings for the Sales Data to Send to Tyro as expected.
For the initial activation during Device setup, we're able to request an authorization token to facilitate secure communication. Upon request, we will automatically retrieve the authorization token along with other required data.
After the Transaction Queue Device is added and configured correctly, all sales data will be sent to the Tyro Connect Server

Device Setup Instructions

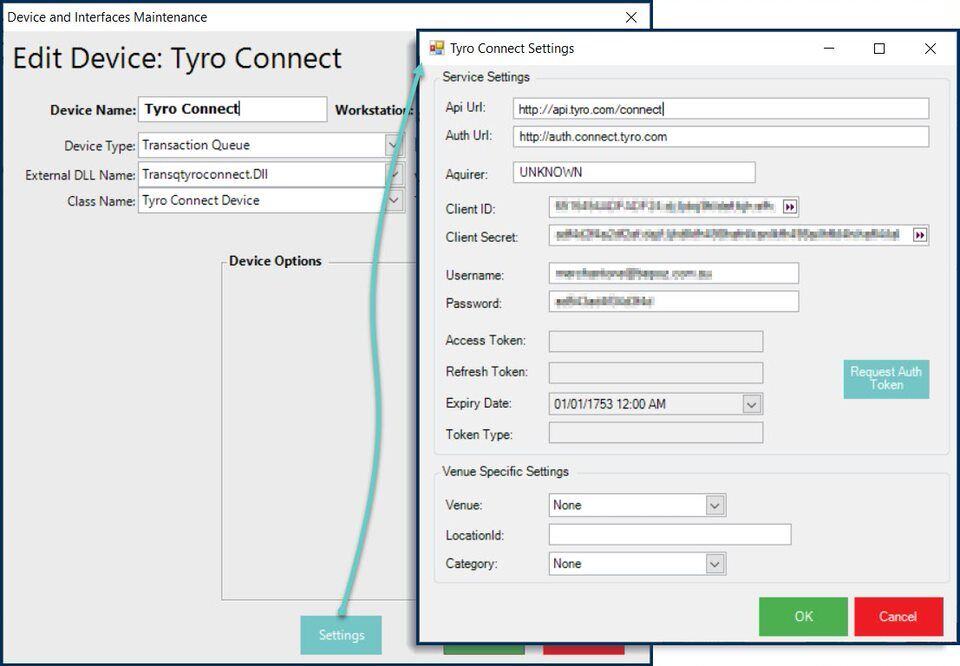

After adding a New Device, enter a Device Name and then set it as follows:
- Device Type: Transaction Queue
- External DLL Name: Transqtyroconnect.Dll
- Class Name: Tyro Connect Device
To access additional settings, click the "Settings" button at the bottom of the window

Service Settings
- These will be supplied by Tyro and most will be unique per Venue

Field	Description
API URL	This is the base URL used to connect to Tyro: http://api.tyro.com/connect
Auth URL	This is the URL that is used to request the authorisation token: http://auth.connect.tyro.com
Acquirer	This is an open text field for entering a label related to non-EFTPOS Payment Types All non-EFTPOS payments will be sent labeled as the text entered here It is recommended to be "UNKNOWN"
Client ID	This is provided by Tyro
Client Secret	This is provided by Tyro
Username	This is provided by Tyro
Password	This is provided by Tyro
Access Token	Leave blank; this will be retrieved automatically upon request (see below)
Refresh Token	Leave blank; this will be retrieved automatically upon request (see below)
Expiry Date	Leave blank; this will be retrieved automatically upon request (see below)
Token Type	Leave blank; this will be retrieved automatically upon request (see below)

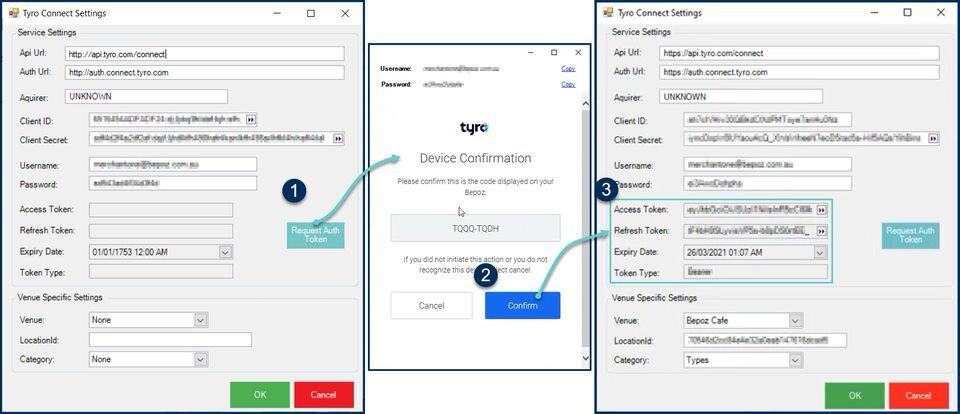

After all Service Settings (except for the Access Token, Refresh Token, Expiry Date, and Token Type) click the 'Request Auth Token' button to connect to the Tyro server
A pop-up window will display; click 'Confirm'
The Access Token, Refresh Token, Expiry Date, and Token Type will be automatically retrieved

Note: using the Refresh Token, Client ID & Secret, a new Access Token will be requested and automatically retrieved every 23 hours

Field	Description
Venue	For multi-venues, select the Venue which will be mapped to the location ID (below) which is used as an identifier by Tyro This is used to identify the Venue that has completed the Transaction; i.e. for a Table, where each Table is closed
LocationId	This is provided by Tyro
Category	Choose from either Types, TypeGroups, Sorts, or SortGroups; this determines which data categories are sent to Tyro
