4 | Tyro Pay at Table Terminal Setup

This article serves as a how-to guide to setting up a Tyro Pay at Table Terminal in BackOffice including an EFTPOS Device and a Scheduled Job.

This article serves as a how-to guide to setting up a Tyro Pay at Table Terminal in BackOffice including an EFTPOS Device and a Scheduled Job.

About

• Tyro is an EFTPOS device that can be installed and configured in BackOffice so that the physical hardware can be used to process payments in SmartPOS

• This article outlines the steps that need to be carried out in BackOffice in order for the physical device to be used
• There are two processes involved, including:
1. Adding the Tyro "Device" to the Till in BackOffice

2. Creating & running a Scheduled Job in BackOffice

Prerequisites

• To access Tyro Payment Features, the following Operator Privileges will need to be enabled:
• Operator Maintenance 'General' Tab
• System Setup: "Access Venue, Stores & Tills" Flag
• System Setup: "Maintain Venue Stores & Tills" Flag

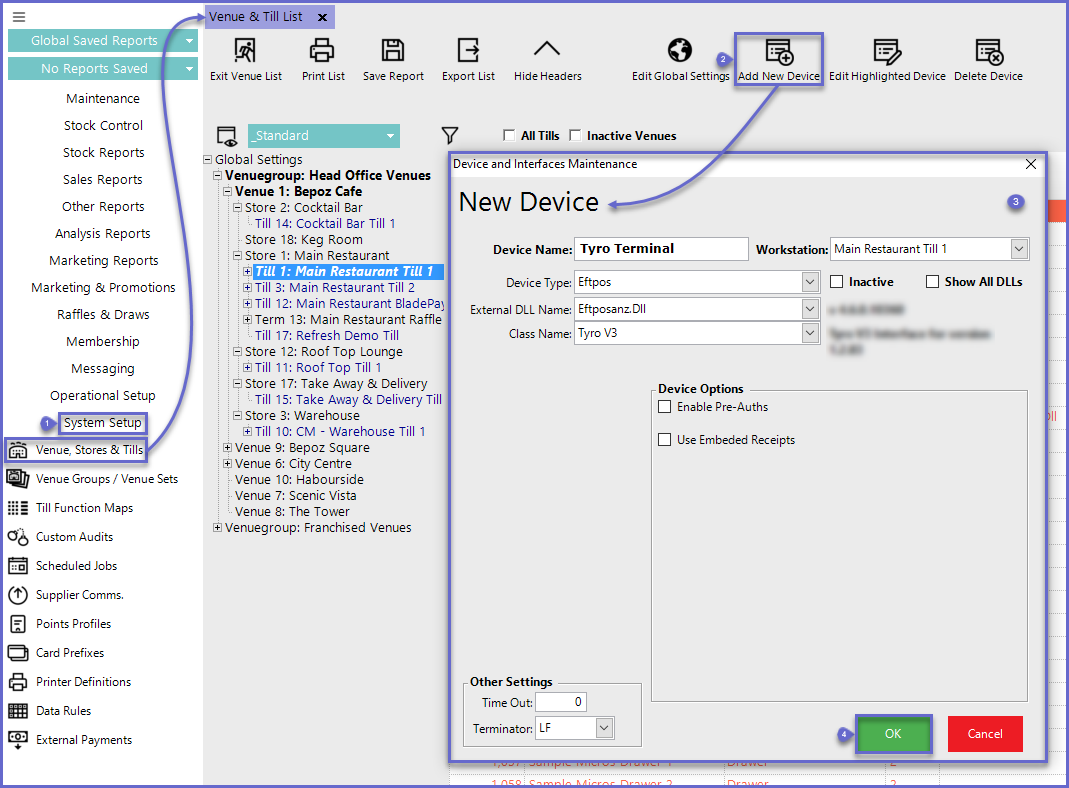

Configure EFTPOS Device

• To add the Tyro Terminal to a designated Till, log in to BackOffice and follow the steps below:
1. Within the System Setup Menu, select Venue, Stores & Tills
2. Highlight the desired Till and Select the Add New Device button
3. Enter the following credentials in the Device and Interfaces Maintenance window:
• Device Name: Relevant Name

• Device type: EFTPOS
• EXTERNAL DLL Name: Eftposanz.Dll
• Class Name: Tyro V3
• Enable Pre-Auths: If this flag is on, pre-authentication will be used for Table Bar Tabs
• Use Embedded Receipts: If on, receipts are passed back to the Till for embedding
• Time Out: Response time (seconds) before the connection times-out
4. Once all information has been entered, select OK to complete the process

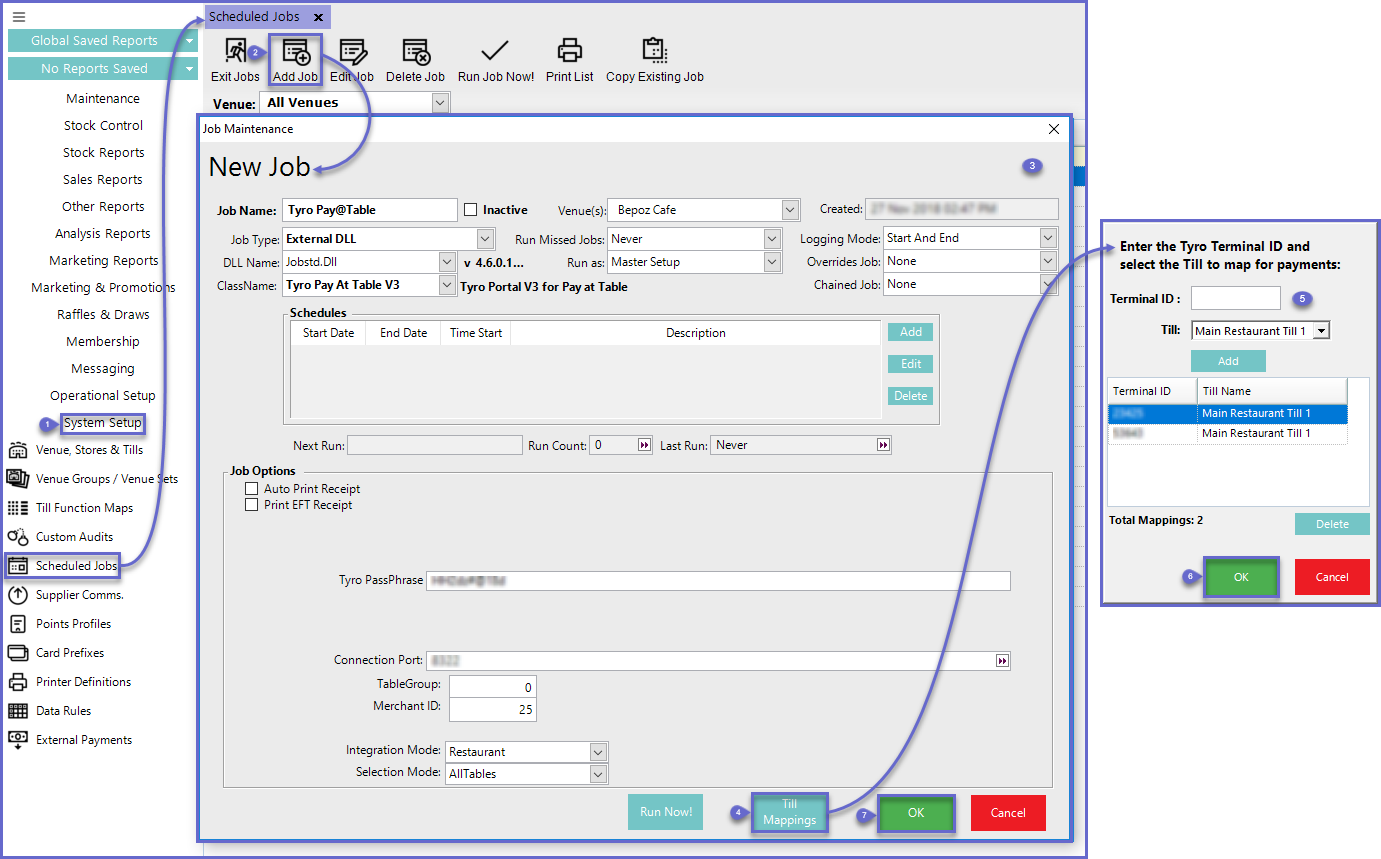

Creating a Scheduled Job

• To add a Scheduled Job for the Tyro Terminal Configuration, log in to BackOffice and follow the steps below:
1.  Within the System Setup Menu, select Scheduled Jobs
2. Select the Add Job button
3. Enter the following credentials in the Job Maintenance window:
• Job Name: Relevant Name

• Job Type: External DLL
• DLL Name: Jobstd.Dll
• Class Name: Tyro Pay At Table V3
• Tyro PassPhrase: Enter the PassPhrase that was configured on the Terminal
• Connection Port: 8080 (this may vary depending on network configurations)
• TableGroup: Enter the Table Group ID to be used

• Merchant ID: Enter the Merchant ID that was configured on the Terminal
• Integration Mode: Enter the mode that was was configured on the Terminal
• Selection Mode: Determines which transaction list will be displayed - either for All Tables or for an individual Table Group

4. Once all information has been entered, select the Till Mappings button
5. Enter the Terminal ID, select the Till to be mapped and select Add
• Repeat Step 5 if more than one Tyro v3 EFTPOS Device has been set up and therefore more than one Till needs to be mapped
6. Click OK to save the Till Mappings
7. Click Run Now! to run the Job immediately and click OK to save the Scheduled Job
