      2 | Tyro Pay_Table Integration Setup

      This article covers the Tyro Configuration setup for Bepoz Version 4.3.1.0.

      This article covers the Tyro Configuration setup for Bepoz Version 4.3.1.0.

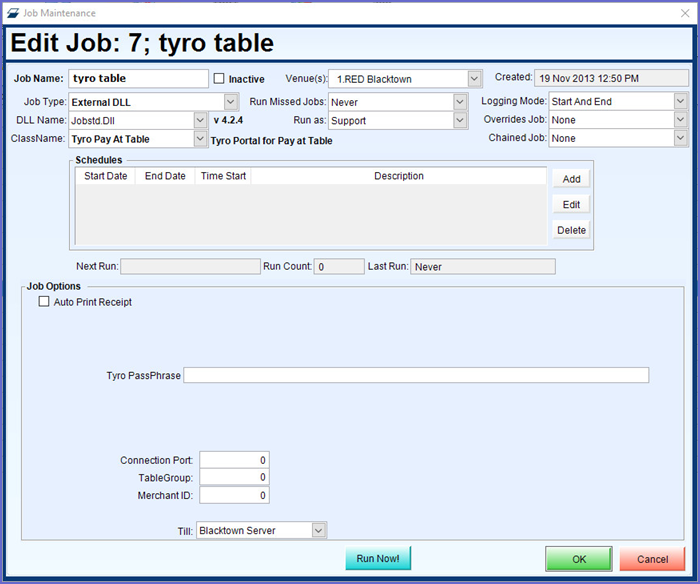

      Pay at Table Configuration Setup

      Job Setup



      Job Name Name or description of the job
      Job Type External DLL
      DLL Name Jobstd.Dll
      Class Name Tyro Pay at Table
      Schedules Add a schedule for the job in order for job to execute

      Job Options



      Auto Print Receipt
      • Flag On will auto print receipt
      • Flag Off will not auto print Receipt
      Tyro Passphrase
      • This must match the passphrase in the terminal
      Connection Port
      • The standard connection port is 8080. If this port is being used then 19819 or similar
      Table Group
      • Table Group that Bepoz is using for pay at table
      Merchant ID
      • The Merchant ID set in the Tyro Terminal
      Till
      • Select the till for payments to be reported on

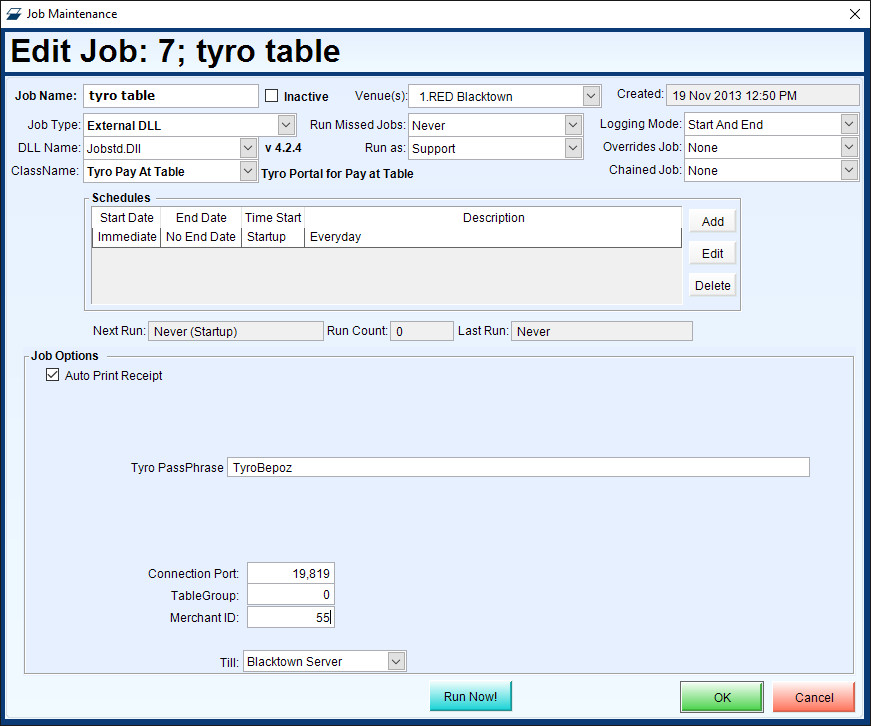

      • After setting up the Job it should look similar to the sample below

      • Once you have setup the job select OK to save the job settings
