3 | Tyro V2 Integration Setup

This article contains the Device Setups for the Tyro V2 integration with Bepoz Version 4.3.0.0. Tyro Integration allows Bepoz to communicate directly with Tyro EFTPOS terminals. Each Till that will have integrated Tyro EFTPOS will need to have the relevant TYRO device added to that till through Bepoz BackOffice. Each Till then also requires the installation of the Tyro program TTA.exe. This device establishes the pairing between the Tyro CUBE terminal and the Till.

This article contains the Device Setups for the Tyro V2 integration with Bepoz Version 4.3.0.0.

Tyro Integration allows Bepoz to communicate directly with Tyro EFTPOS terminals. Each Till that will have integrated Tyro EFTPOS will need to have the relevant TYRO device added to that till through Bepoz BackOffice.

Each Till then also requires the installation of the Tyro program TTA.exe.

This device establishes the pairing between the Tyro CUBE terminal and the Till.

Following is a link to the Tyro Installation Guide - TTA-Installation-Guide-2014-04-15.pdf

Following is the link to download the Tyro Terminal Adaptor - integrationdownloads.tyro.com/TyroTerminalAdapter

Prerequisites

To manage Devices & Interfaces, the following Operator Privileges will need to be enabled

Operator Maintenance 'General' Tab

System Setup: "Maintain Venue, Stores & Tills" Flag
System Setup: "Access Venue, Stores & Tills" Flag

Network Connectivity

Tyro Pinpads <-> SmartController

TCP 11001 (is configurable if it conflicts)

Tyro Pinpads/Bepoz Tills <-> Tyro Server

TCP 80, TCP 443, TCP 10433

Tyro Server IP Address Range

58.181.64.0 - 58.181.95.255

i.e. 58.181.64.0/19
i.e. 58.181.64.0, 255.255.224.0

Tyro Connectivity Test

https://www.tyro.com/selftest/

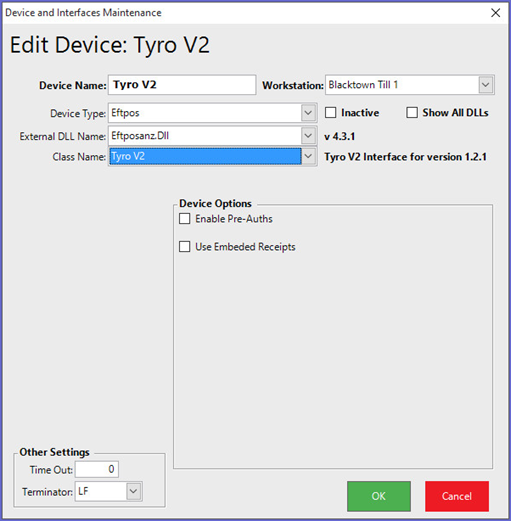

Device Setup

External DLL Name	Eftposanz.Dll
Class Name	TYRO V2

Device Options

Enable Pre-Auths	OFF - normal sales ON - Use pre Auth for tables and bar tabs
Use Embedded Receipts	Off - receipts output by EFT tyro device ON - receipts are passed back to till for embedding within till receipts. requires EFT terminal to be configured for POS printing
