1 | Ubiquiti Interface Configurations

This lesson covers the configuration process of Ubiquiti for Bepoz Integration. Bepoz interfaces to the Ubiquiti Wifi Hotspot. It will create a Voucher in the Ubuiqti system based on the sale of a specified product. This product can have multiple sizes and the Size Qty is the Minutes sold. It logs on, creates vouchers, retrieves the voucher details and prints the docket to the Tills Receipt printer. The Docket includes the Current Server Date/Time, the duration minutes and the “Code”.

This lesson covers the configuration process of Ubiquiti for Bepoz Integration.

Bepoz interfaces to the Ubiquiti Wifi Hotspot. It will create a Voucher in the Ubuiqti system based on the sale of a specified product. This product can have multiple sizes and the Size Qty is the Minutes sold. It logs on, creates vouchers, retrieves the voucher details and prints the docket to the Tills Receipt printer.

The Docket includes the Current Server Date/Time, the duration minutes and the “Code”. A message above states “Please Enter  this code when requested”.

If there is a failure creating or retrieving the Voucher, an error docket will print to inform the operator & customer.

Prerequisites

• To add Devices and Interfaces in BackOffice, the following Operator Privileges will need to be enabled:
• Operator Maintenance 'General' Tab
• System Setup: "Maintain Venue, Stores & Tills" Flag
• System Setup: "Access Venue, Stores & Tills" Flag

---

Ubiquiti Configuration

• Log in to the Clients Venue Bepoz server
• You will need to download Ubiquiti Setup file from the following link, https://www.ubnt.com/download/unifi/default/default/unifi-v476-controller-windows

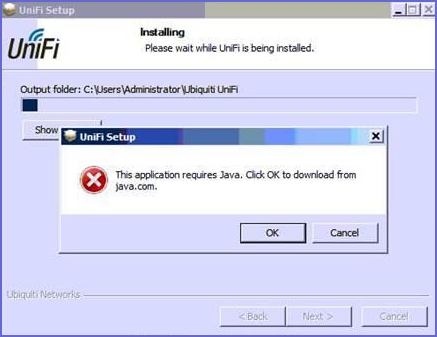

• Once you have finish downloading the file you will need to install the file, if Java is not installed you receive the following message below
• At this point make sure the Ubiquiti Wifi Access point is powered on

• If you do receive the error Above please install java software http://www.java.com

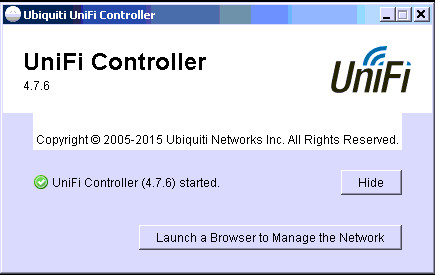

• Once successfully installed this box will appear when the Ubiquiti program is run

• Select the ‘Launch a Browser to Manage the Network’ button

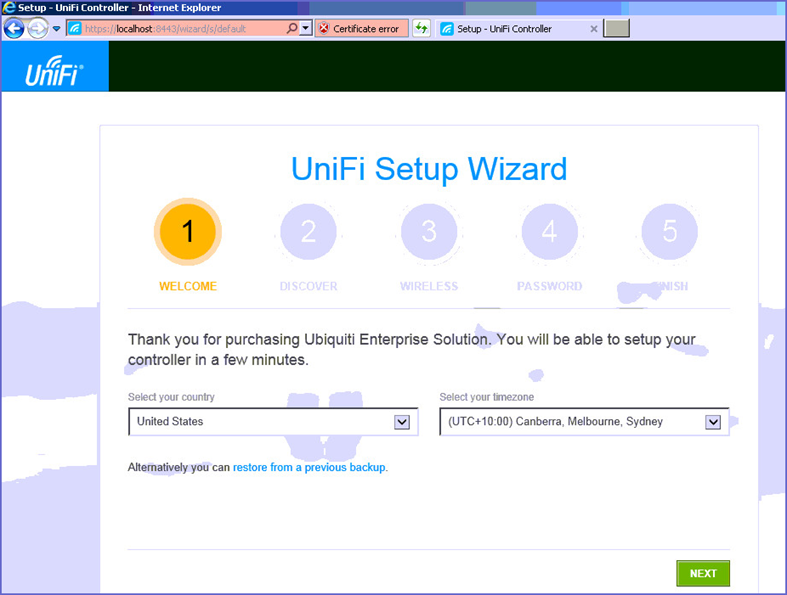

• It should take you to the following Webpage (internal)

• Set your Country and Zone and Select Next

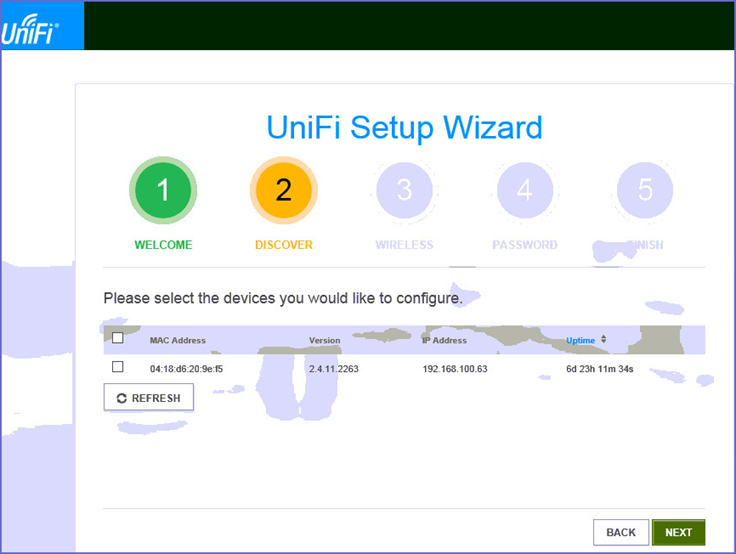

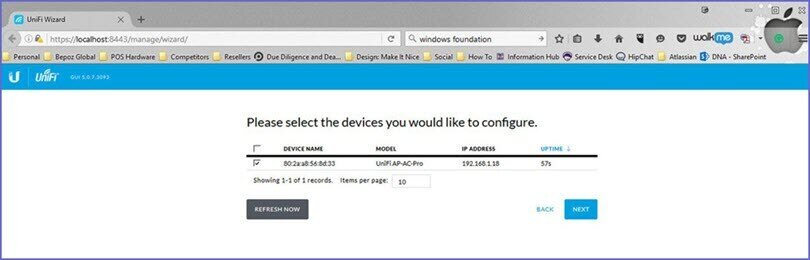

• Tick the box, highlighting the correct access point (if you are setting up more than 1)
• Then Select Next

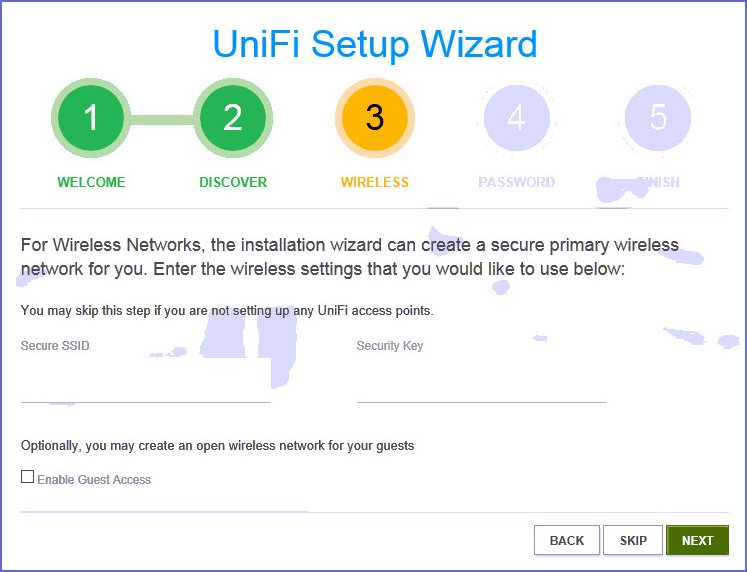

• Type in the name of the SSID to be used
• Example
• The SSID must be in capitals e.g CLUBTAREEU (U to identify Ubiquiti).
• Bepoz Security Key convention is BE4safet[SSID Name]BEPOZ. e.g. BE4safetCLUBTAREEUBEPOZ
• Then Select Next

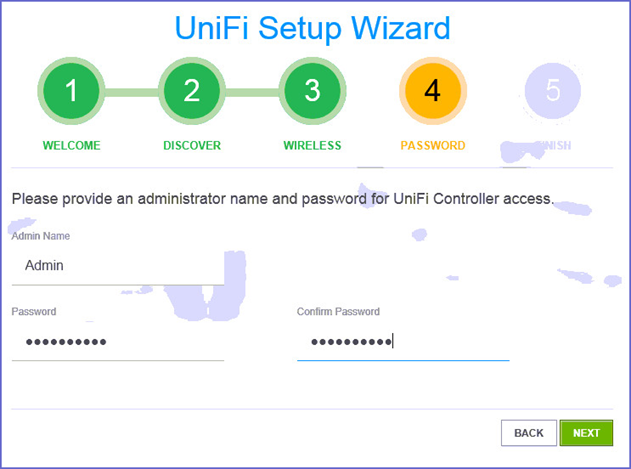

• The next step is to create a username and password to login to Ubiquiti
• Example
• Bepoz convention is as follows:
• Username=Admin
• Password=Vectron123

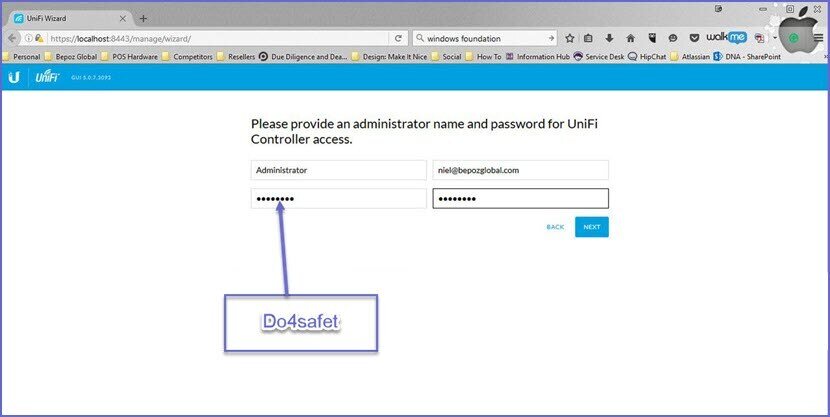

• Type Username and Password in the fields, confirm the password, then Select Next

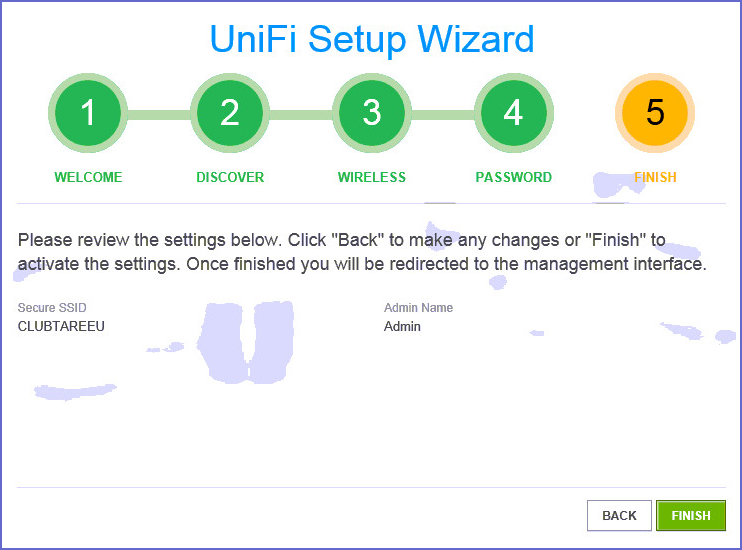

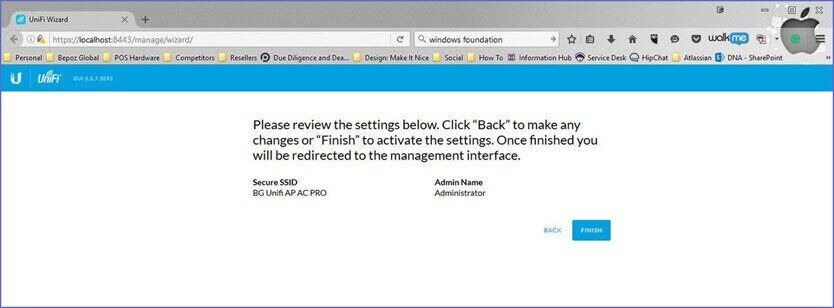

• Review all changes and Select Finish

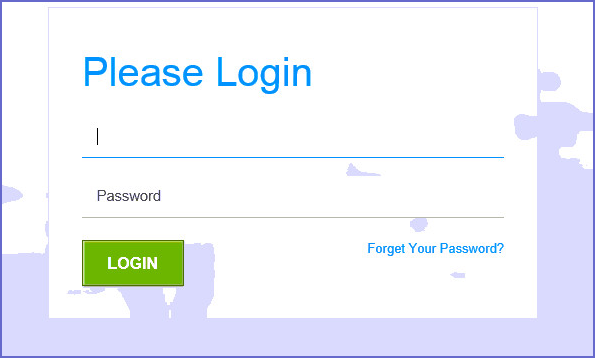

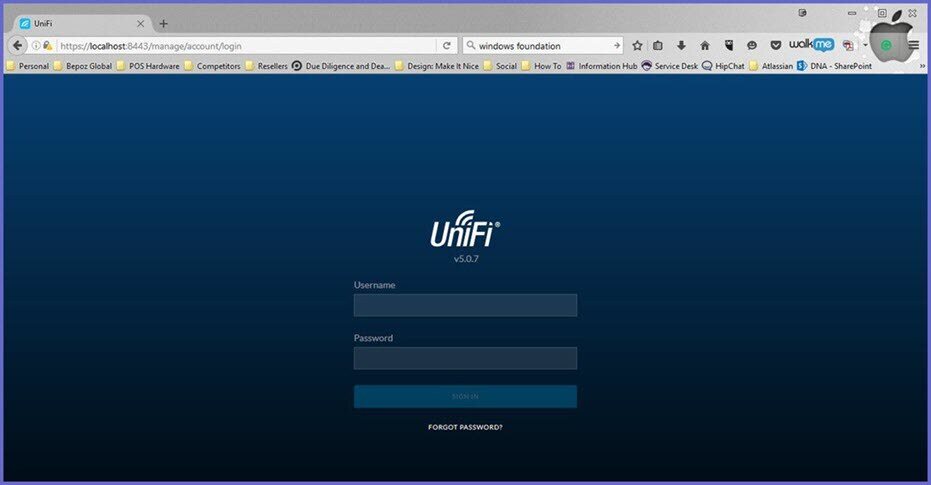

• Login to Ubiquiti with the credentials you previously configured

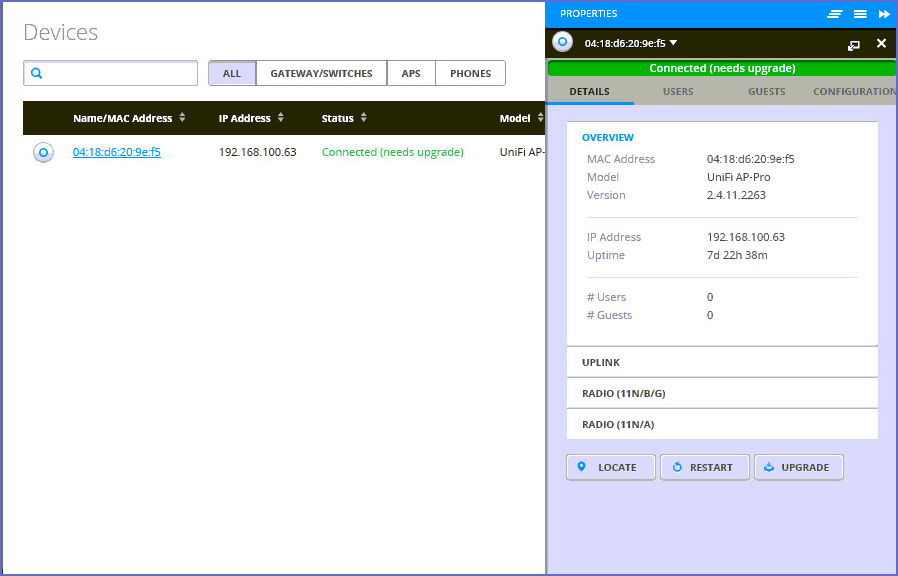

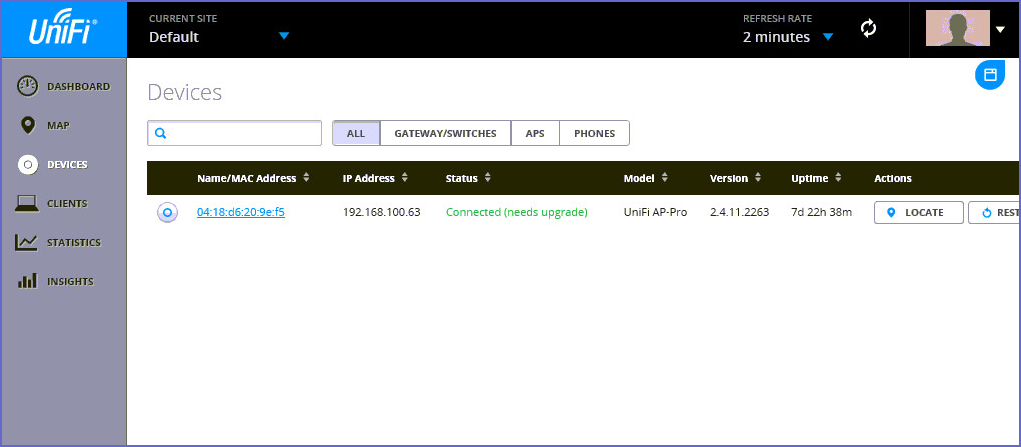

• If you are prompted to Upgrade:

• Select the Device by Selecting the Mac Address link and select Upgrade on the configuration window

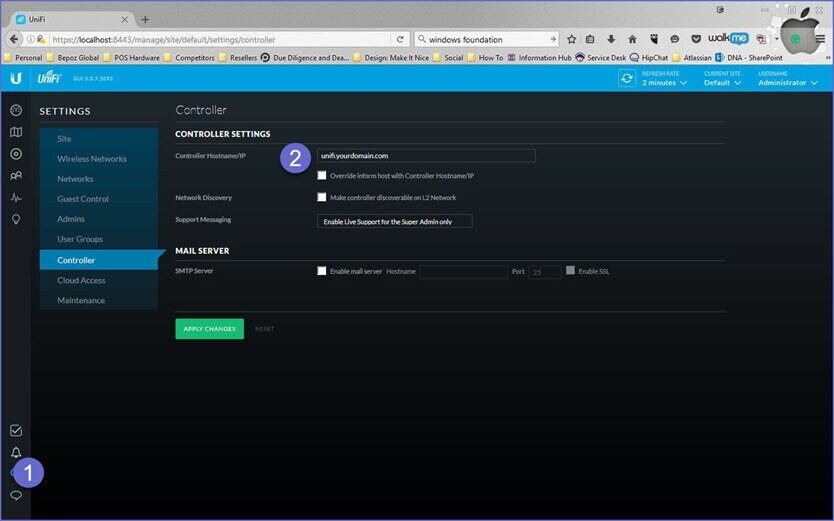

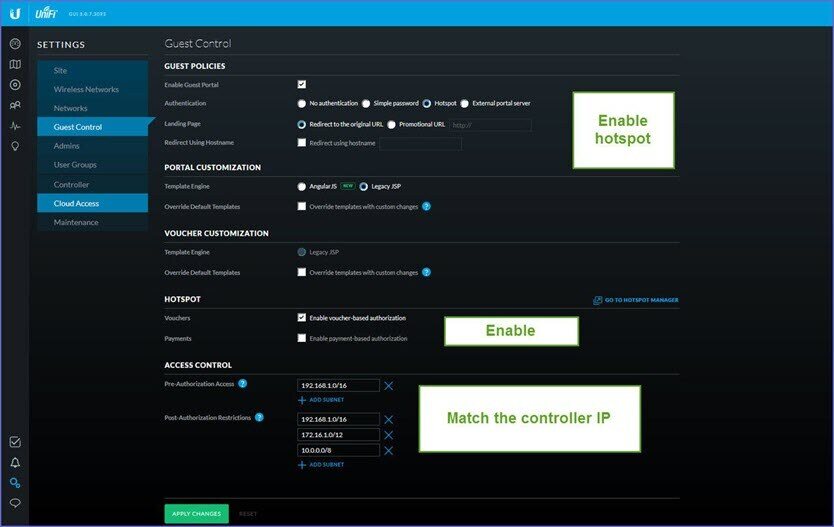

• If you need to edit the settings of the Wifi network, to change the Security, or Key etc, change radios, disable the 5Ghz wifi etc, Select the Configuration Tab
• Alternatively Select Settings on the main Window

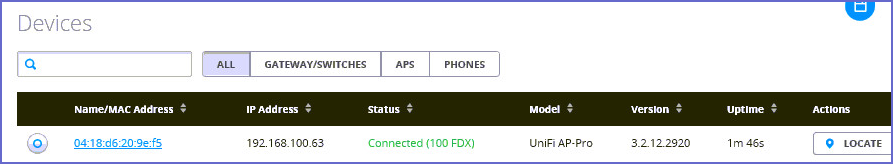

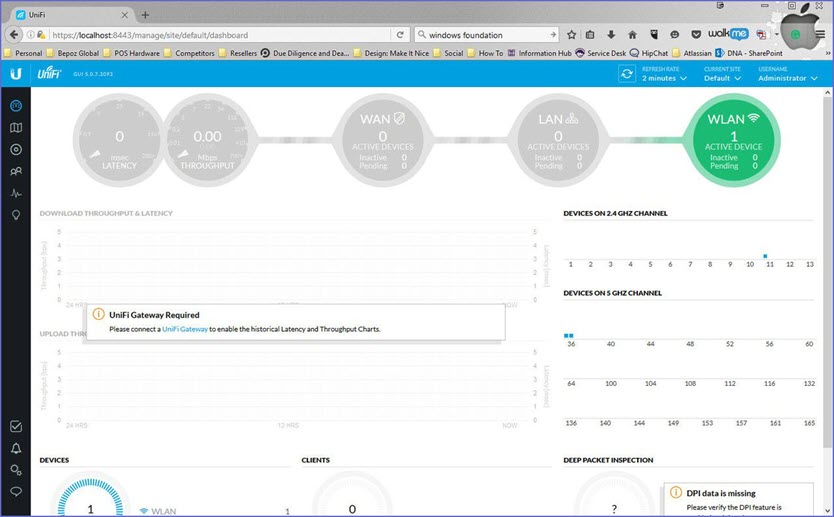

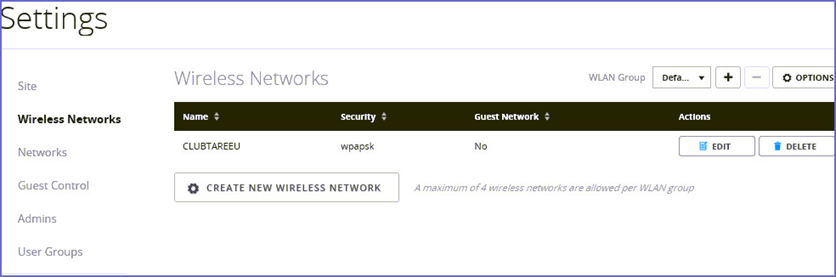

• When configured correctly should appear similarly to below

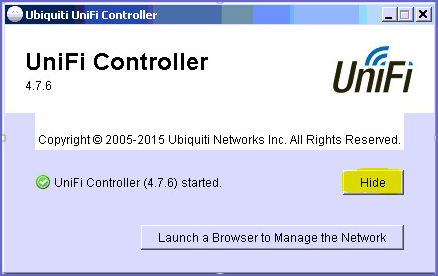

• Exit the website and Select Hide to hide the Unifi Controller program
• Use this program to reopen the webpage to login to the Ubiquiti device

Bepoz Configuration

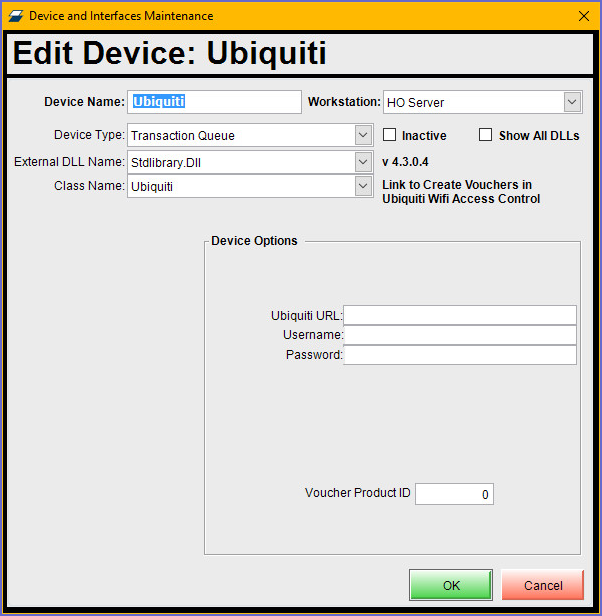

• Below are the Device Settings for this modem:
