      1 | Verifone 2-Way Interface (NZ)

      There is an interface for New Zealand to the Verifone terminal via TCPIP or RS232. This is a standalone EFTPOS interface – meaning that each till connects direct to each EFTPOS terminal (Bepoz Version 4.1.0.0). The EFTPOS unit can either use an Internet connection to the EFTPOS NZ or a telephone line. This Interface is supported by both CE Tills and Windows Tills.

      There is an interface for New Zealand to the Verifone terminal via TCPIP or RS232. This is a standalone EFTPOS interface – meaning that each till connects direct to each EFTPOS terminal (Bepoz Version 4.1.0.0).

      The EFTPOS unit can either use an Internet connection to the EFTPOS NZ or a telephone line. This Interface is supported by both CE Tills and Windows Tills.

      The TCPIP Interface only connects to the EFTPOS unit for the period of the EFTPOS transaction; then it disconnects. This means that for the TCPIP interface type, multiple Tills can connect to, and share one EFTPOS unit. Obviously however, only one EFTPOS transaction can be done at a time.

      Prerequisites
      • To manage Devices & Interfaces in BackOffice, the following Operator Privileges will need to be enabled:
        • Operator Maintenance 'General' Tab
          • System Setup: "Access Venue, Stores & Tills" Flag
          • System Setup: "Maintain Venue, Stores & Tills" Flag





      Device Setup
      • Use POS Printer Flag: when flagged on the pos printer will print the EFTpos reciepts

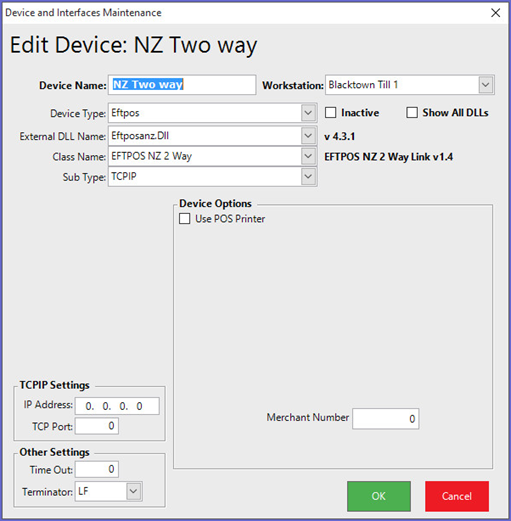

      TCPIP

      IP Address As Configured
      Port Typically 4444
      Timeout Typically 120sec

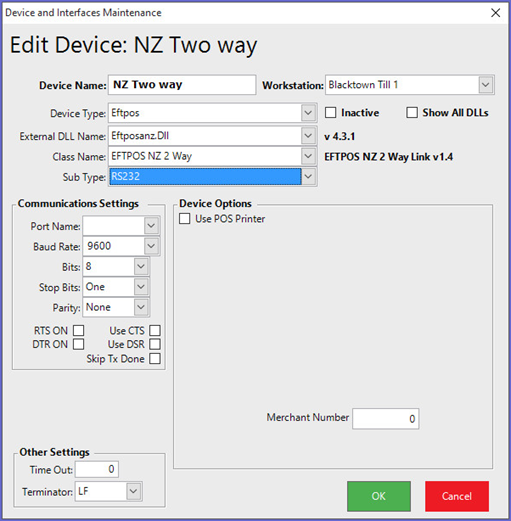

      RS232

      Baud Rate 9600
      Parity None
      Data 8 bits, 1 stop bit
      Timeout Typically 120 sec




      Transaction Flow

      1. Till connects to EFTPOS
      2. Till Sends Poll Packet. EFTPOS Sends ACK
      3. EFTPOS then sends Poll Response. Till Sends Ack
      4. Tills Send Purchase message, containing transaction type and Amount. EFTPOS Sends ACK
      5. Till starts the Timeout timer (Any display message received restarts this timer)
      6. EFTPOS may send one or more Display or other messages. Till Sends Ack
      7. EFTPOS may send Signature Required message. Till Sends Ack
      8. Till Prompts Operator for Signature OK
      9. Tills sends Signature Response message. EFTPOS Sends ACK
      10. EFTPOS sends Transaction response message to Till. The text that is returned in the response will be displayed by the Till. Till sends ACK
      11. Transaction is complete. Till Disconnects from EFTPOS

      Miscellaneous EFTPOS Functions

      • UserSelection = 0 (This displays a list of the below functions to select from)
      • ReceiptPrint = 1
      • Terminal Totals = 2
      • SettlementEnquiry = 3
      • SettlementCutover = 4
      • Logon = 5
