      1 | Verifone Integration BackOffice Settings

      This article covers the device settings used for the Verifone POS payment system in the UK. The Bepoz version it was installed to was 4.1.0.0.

      This article covers the device settings used for the Verifone POS payment system in the UK. The Bepoz version it was installed to was 4.1.0.0.

      How-To Guide
      • Device Settings need to be set to allow communication with the Sentinel app

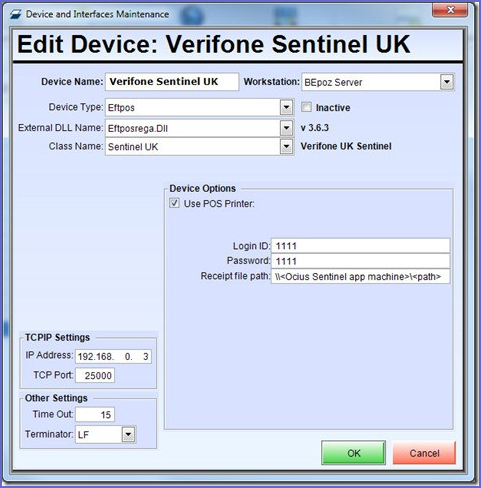

      • Device Settings for the Sentinel UK device class are as follows:

      TCPIP Settings



      IP Address
      • Set this to the machine on the network that is running the Ocius Sentinel application and pinpad

      TCP Port
      • Set this to match Sentinel's Socket Port (default is 25000)
      • Sentinel uses a Progress Socket Port too, which must be set within Sentinel to the Socket Port plus plus 1
      • The default is 25001, so this should be fine

      Other Settings



      Time Out
      • As shown

      Terminator
      • As shown



      Device Options

      Use POS Printer
      • Check this box to allow printing via SmartPrint
      • For this to work, the Sentinel app must be set to print to a Text File
      • Uncheck to print via Sentinel App, where printer selection is controlled by the Sentinel app

      Login ID
      • 1111 was provided for testing by Sentinel
      • Changes to this are at the discretion of Sentinel

      Password
      • As above for Login ID

      Receipt File Path
      • To print via SmartPrint, the Sentinel app must write the receipts to a directory in text format
      • Specify the directory here using a fully qualified network path
      • For example: \\POSMachine\C
      • Note that the default directory set by Sentinel is the C: root directory
      • The chosen directory must be shared so that it's visible from the machine running SmartPrint



      • That's all there is to the setup
      • The Ocius Sentinel app must be started manually on the box that has the pinpad connected
      • Manual logon is not required as this is handled automatically by BEPoz
