3 | Windcave Interface BackOffice Setup (v4.7.2.5+)

This article covers an overview of the BackOffice setups for the Windcave Interface.

This article covers an overview of the BackOffice setups for the Windcave Interface.

Prerequisites

• To access Device and Interface Maintenance, the following Operator privileges will need to be enabled:
• Operator Maintenance 'General' Tab
• System Setup: "Access Venue Stores & Tills" Flag
• System Setup: "Maintain Venue Stores & Tills" Flag

BackOffice Device Setup

• Navigate to the System Setup tab from the side menu and select 'Venue, Stores & Till'
• Select the desired Till within the desired Store within the desired Venue where the Windcave EFT device will be connected to

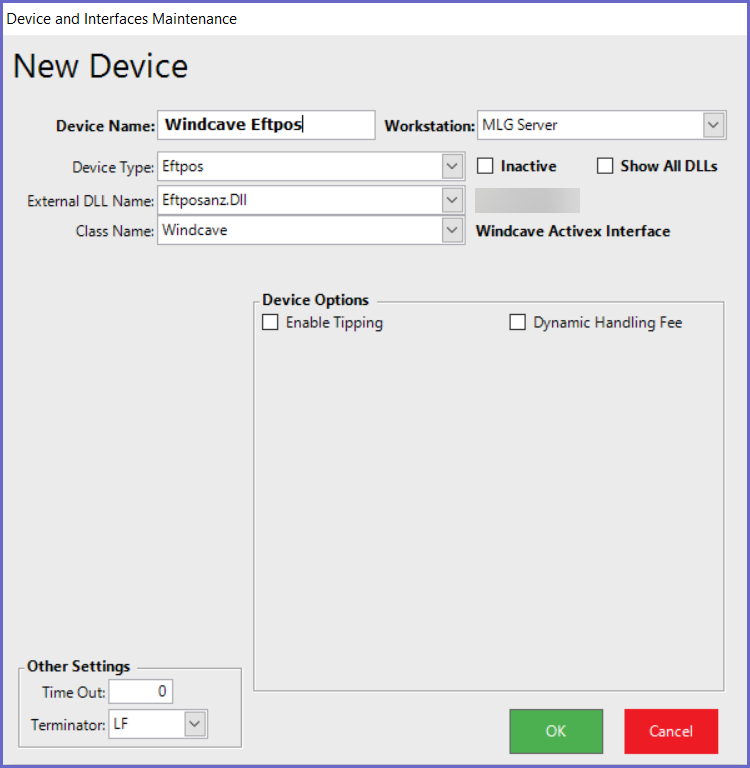

• Click on 'Add New Device' and a Device and Interfaces Maintenance screen pops up, fill in with the following details:
• Device Name: As desired
• Device Type: Eftpos
• External DLL Name: Eftposanz.Dll
• Class Name: Windcave
• Device Options:
• Dynamic Handling Fee:
• ON: When the flag is enabled, then EFTPOS terminal dynamic handling fees are accepted
• OFF: When the flag is disabled, then EFTPOS terminal dynamic handling fees are not accepted
• Enable Tipping:
• ON: When the flag is enabled, then used for Restaurants and Bar that will almost always add a Tip later
• OFF: When the flag is disabled, then Normal Sales
• Click 'Ok' to save the device settings
