Wirely Interface Setup

This article serves as a how-to guide to setting up a scheduled job for Wirely.

• Minimum Bepoz version of v4.6.2.0

• Minimum NewtonSoft version of 11.0.0.0

• To access Wirely feature, the applicable Operator Privileges will need to be enabled

  • Operator Maintenance 'General' Tab

    • System Setup: "Maintain Scheduled Jobs" Flag

    • System Setup: "Access Venue, Stores & Tills" Flag

• The required library files are:

  • Job_Vectron.dll

  • NetTotalFix.4.3-4.5.1.dll

  • NetTotalFix.4.5.2+.dll

  • Renci.SshNet.dll

  • Vectron.Extension.dll

  • VectronExtensions.dll

• Download the files from below and place them at the given file path directory: C:\\Bepoz\\Programs

• Sales data from Bepoz is sent to Wirely at a given frequency which is configured at Bepoz

• Bepoz send two json export files which are, 'Mapping' file which is sent once a day and 'Sales Data' file

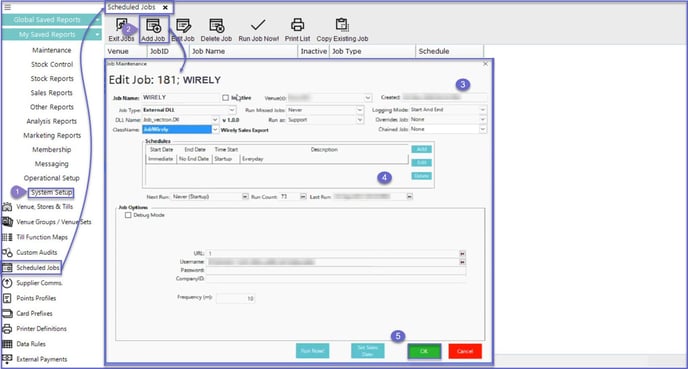

• To add a Scheduled Job for Wirely, log into BackOffice and follow the below steps:

  1. Navigate to the System Setup component in the sidebar, expand, and select Scheduled Jobs to open the Scheduled Jobs Tab

  2. Select the Add Job button to create a new scheduled job

  3. Enter the following details in the Job Maintenance window:

     • Job Name: Give the job a relevant name

     • Job Type: External DLL

     • DLL Name: Job_vectron.Dll

     • Class Name: JobWirely

     • Debug Mode: Exports JSON data as CSV into the bepoz\\data directory instead of uploading files

       • If the Debug mode is ON and a particular Venue is selected, then it will export the data only for the selected venue to debug

     • URL: URL is provided by Wirely

       • If no URL is provided, the default is: https://wirely-data.wirely.com.au/v1/api/bepoz-push

     • Username: Username is provided by Wirely

     • Password: Password is provided by Wirely

     • CompanyID: Internal Company ID, provided by Wirely

     • Frequency (m): Enter frequency of export in minutes (Typical Configuration is every 5 minutes)

     • Set Sales Date: Enter months for Historical Sales. Default value is 36 and click OK to save the settings

  4. Once all the information has been entered, now add the schedule by clicking on Add button and select start time as ‘On Startup Only’

  5. Click Run Now!  to run the job immediately and click OK to save the Scheduled Job
