1 | ZPL Printing Setup

This articles covers the setup required for configuring ZPL printer.

This articles covers the setup required for configuring ZPL printer.

Prerequisites

• Minimum Bepoz version of 4.6.1.19 is required for this functionality
• To access and setup Printer device for ZPL Printer, the following Operator privileges must be enabled
• Operator Maintenance 'General' Tab
• System Setup: "Access Venues, Stores & Tills" flag
• System Setup: "Maintain Venue, Stores & Tills" flag
• System Setup: "Maintain Printer Definitions" flag

Printer Definition Setup

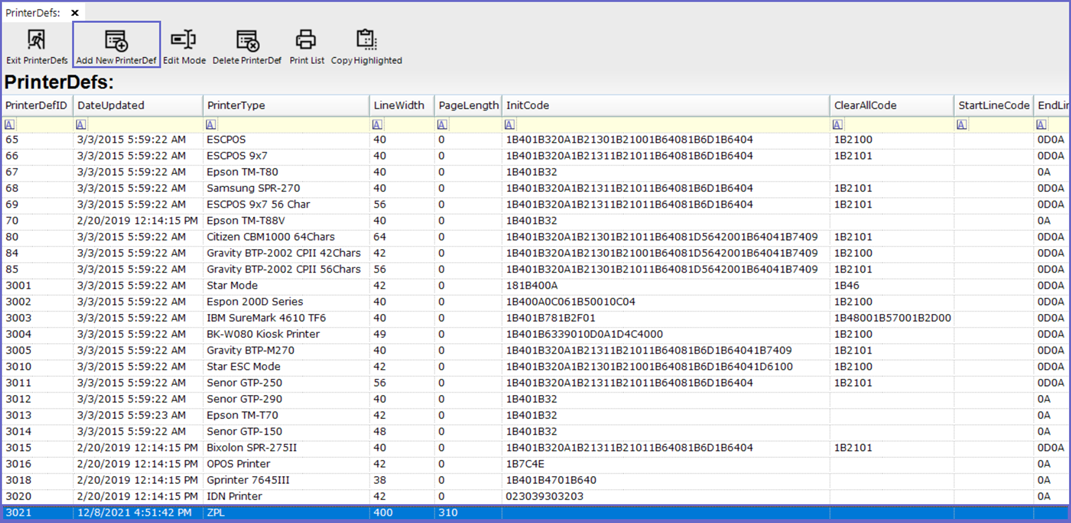

• After logging into BackOffice, go to System Setup > Printer Definitions
• Click on the 'Add New PrinterDef' button and enter the name of the new printer type as 'ZPL'
• Please enter their LineWidth and PageLength as '400' & '310' respectively
• Also enter dimensions such as MarginLeft, MarginRight, MarginTop & MarginBottom with the value '2'

Printer Device Setup

• After logging into BackOffice, go to System Setup > Venue, Stores & Tills
• Select the designated workstation which will open a window with a list of all the devices integrated into the workstation

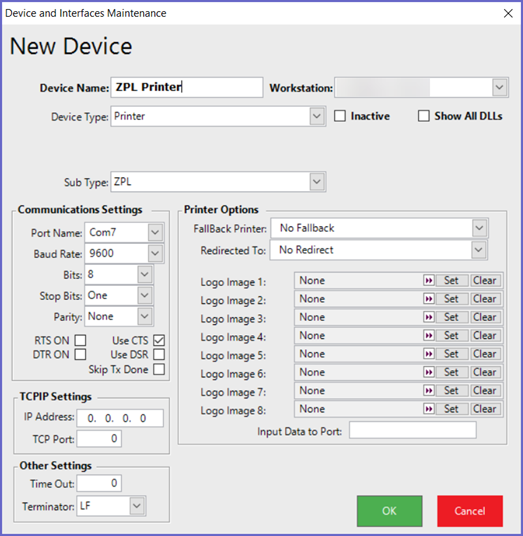

• From the header, click on the 'Add New Device' button and select a blank device
• Configure the device with the following settings
• Device Name: Give the device a relevant name
• Device Type: Printer
• Sub Type: ZPL / Printer Definition (for ZPL)
• Port Name: ZPL
• Port Number: 9100
• Hand-shaking flag - ON
• Receipt Type: within printer format settings must be set to ZPL Receipt
